- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Courtyard
-
Design Style:
-
Postmodern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YKL
-
Model Number:
-
75ALSW-1
-
Color:
-
silver, or customized
-
Surface treatment:
-
anodized
-
Thickness:
-
1.2mm
-
Frame Width:
-
75mm
-
Application place:
-
residential, commercial
-
Specification:
-
easy installation, CE test
-
Glass:
-
6mm, clear tempered glass
-
Profile:
-
single aluminum
-
Name:
-

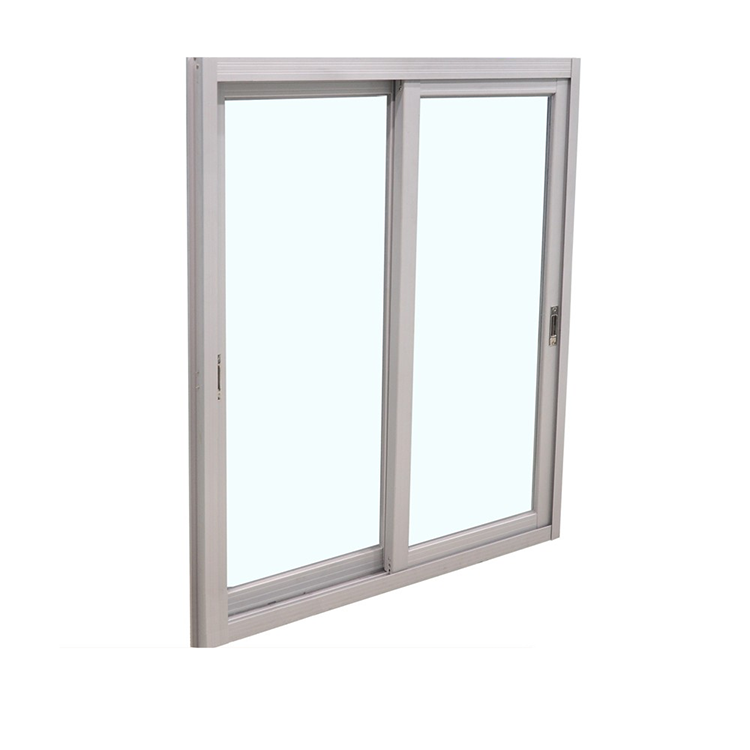

aluminium frame sliding glass window
Quick Details
-
Frame Material:
-
Aluminum Alloy
-
Feature:
-
Magnetic Screen
-
Function:
-
Invisible
-
Application:
-
Courtyard
-
Design Style:
-
Postmodern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YKL
-
Model Number:
-
75ALSW-1
-
Color:
-
silver, or customized
-
Surface treatment:
-
anodized
-
Thickness:
-
1.2mm
-
Frame Width:
-
75mm
-
Application place:
-
residential, commercial
-
Specification:
-
easy installation, CE test
-
Glass:
-
6mm, clear tempered glass
-
Profile:
-
single aluminum
-
Name:
-
aluminium frame sliding glass window
| Product Name | Powder Coating Office Safety Lock Champagne Color Vertical Frame Glass Aluminum Sliding Window From China Manufacturer |
| Profile Thickness | 1.2mm |
| Profile | Single aluminum |
| Glass | 6mm tempered clear glass |
| Function | Heat insulation; Soundproof; Fireproof; Waterproof |
| Delivery time | 5-45 working days after payment |
| MOQ | 30 Square Meters |
How to Choose the Right Glass to Reduce the U Value for Your Construction?
Sound Insulation Performance of Glass
|
Glass |
Specification |
Measured Sound Reduction Rw(dB) |
Calculated Sound Reduction Rw(dB) |
|
Single glass |
6mm |
26 |
31 |
|
S ingle glass |
10mm |
29 |
34 |
|
Insulating glass |
6mm+6A+6mm |
31 |
31 |
|
I nsulating glass |
6mm+9A+6mm | 33 | -- |
| I nsulating glass | 6mm+12A+6mm | 34 | 35 |
| L aminated glass | 6mm+1.14PVB+6mm | 35 | 39 |
| L aminated glass | 8mm+1.52PVB+8mm | 36 | 40 |
| S ingle laminated insulating glass | 5mm+0.38PVB+5mm+9A+6mm | 37 | 40 |
| D ouble laminated insulating glass | (6+0.76PVB+6)+12A+(5+0.76PVB+5)mm | -- | 41 |
| D ouble laminated insulating glass | (8+1.52PVB+8)+12A+(6+1.52PVB+6)mm | -- | 43 |
Notes: The value of measured sound reduction is tested by Chinese Academy of Sciences (CAS) according to
ISO140-1 and GBJ75-84. The value of calculated sound reduction is the running result of Stccalc developed
by Grozier Technical Systems and Pugh-Lilleen Associates.
