Quick Details
-
Model Number:
-
GPT200
-
Range:
-
-100kPa~0...0~10kPa...100MPa
-
Output:
-
4~20mA,0~5Vdc,1~5Vdc,0~10Vdc,0.5~4.5Vdc
-
Accuracy:
-
0.5%,0.25%
-
Pressure Type:
-
G, A, S
-
OEM:
-
Acceptable
-
response time(10%~90%):
-
10ms
-
protection:
-
IP65, others can OEM
-
overpressure:
-
150%
-
Title:
-
GPT200 OEM 0-5V Water Air pressure transducer
-
Certification:
-
CE,RoHs
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
GAMICOS
-
Model Number:
-
GPT200
-
Range:
-
-100kPa~0...0~10kPa...100MPa
-
Output:
-
4~20mA,0~5Vdc,1~5Vdc,0~10Vdc,0.5~4.5Vdc
-
Accuracy:
-
0.5%,0.25%
-
Pressure Type:
-
G, A, S
-
OEM:
-
Acceptable
-
response time(10%~90%):
-
10ms
-
protection:
-
IP65, others can OEM
-
overpressure:
-
150%
-
Title:
-
GPT200 OEM 0-5V Water Air pressure transducer
-
Certification:
-
CE,RoHs
Recommend Products
Products Description

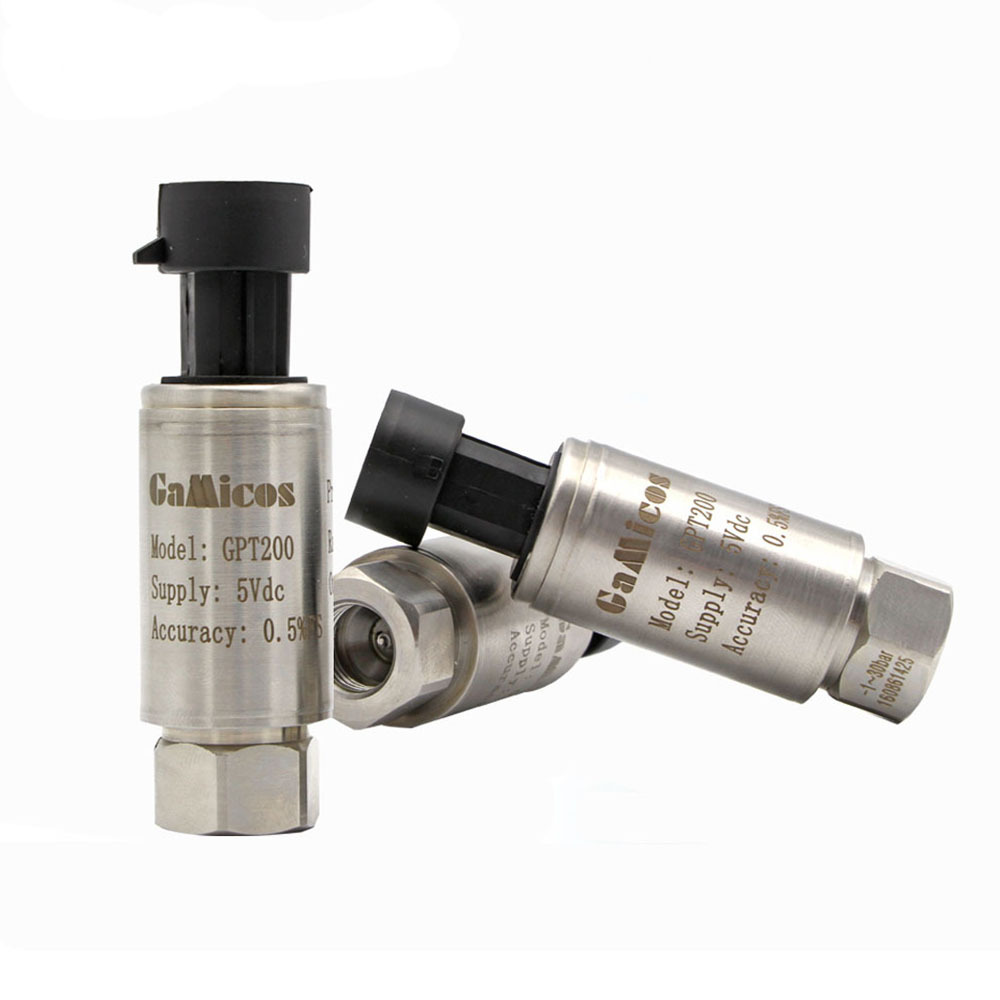

GPT200
is a
piezoresistive pressure transducer
, using an imported isolation film piezoresistive sensor, the sensor is
automatically tested and temperature compensated by laser resistance adjustment technology, the international standard signal 4-20mA or 0-5V output, with small size and light weight , Good long-term stability, widely used in the pressure measurement and control fields of aviation, aerospace, metallurgy, chemical industry, machinery, petroleum, food, medicine and other industries.
automatically tested and temperature compensated by laser resistance adjustment technology, the international standard signal 4-20mA or 0-5V output, with small size and light weight , Good long-term stability, widely used in the pressure measurement and control fields of aviation, aerospace, metallurgy, chemical industry, machinery, petroleum, food, medicine and other industries.
Product Parameter
|
Range
|
-0.1...0~0.01...100MPa
|
|
Type of pressure
|
Gauge (G), absolute (A), sealed gauge (S)
|
|
Accuracy
|
±0.5%FS, ±0.25%FS
|
|
Output Siginal
|
4-20mA 1-5V/0-5V 0.5~4.5V 0~10V 100mv
|
|
Power
|
10-30V 5V
|
|
Overload
|
150%FS
|
|
Long term stability
|
±0.2%FS/ year
|
|
Material
|
Housing: 304 stainless steel Sensor: 316L stainless steel
|
|
Pressure connector
|
M20×1.5, G1/2, G1/4, NPT1/2, etc. (customized)
|
|
Electrical connection
|
cable connection, DIN43650 , plug connection,parked
|
|
Ingress protection
|
IP65(OEM) IP68 (sealed type)
|
|
Explosion proof
|
Intrinsically safe explosion proof ExiaⅡCT6
|
|
Operating temp.
|
-30~80℃
|
Electrical connection
In order to meet different connection requirements, GPT200 has designed four electrical connections.They are DIN43650 , cable connection , plug connection , packard.
