Quick Details
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NEWIN
-
Voltage:
-
AC 220V
-
Dimensions(L*W*H):
-
2827*770*1478mm
-
Weight:
-
150 KG
-
Marketing Type:
-
New Product 2022
-
Printhead:
-
2pcs Epson I1600/I3200/XP600
-
Ink:
-
UV Ink
-
Max Print Size:
-
1800mm
-
Max Print Height:
-
1-2mm
-
Materials to Print:
-
PP Paper/Backlit film/Wall paperlvinyl One-way vision/Flex banner etc
-
Printing Method:
-
Drop-on-demand Piezo Electric Inkjet
-
Printing Direction:
-
Unidirectional Printing or Bi-directional Printing Mode
-
Printing Resolution:
-
Standard Dpi:1440*2880dpi
-
Printing Quality:
-
True Photographic Quality
-
File Format:
-
TIFF,JPEG,Postscript,EPS,PDF
Quick Details
-
Print Dimension:
-
1800mm, 3200mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NEWIN
-
Voltage:
-
AC 220V
-
Dimensions(L*W*H):
-
2827*770*1478mm
-
Weight:
-
150 KG
-
Marketing Type:
-
New Product 2022
-
Printhead:
-
2pcs Epson I1600/I3200/XP600
-
Ink:
-
UV Ink
-
Max Print Size:
-
1800mm
-
Max Print Height:
-
1-2mm
-
Materials to Print:
-
PP Paper/Backlit film/Wall paperlvinyl One-way vision/Flex banner etc
-
Printing Method:
-
Drop-on-demand Piezo Electric Inkjet
-
Printing Direction:
-
Unidirectional Printing or Bi-directional Printing Mode
-
Printing Resolution:
-
Standard Dpi:1440*2880dpi
-
Printing Quality:
-
True Photographic Quality
-
File Format:
-
TIFF,JPEG,Postscript,EPS,PDF

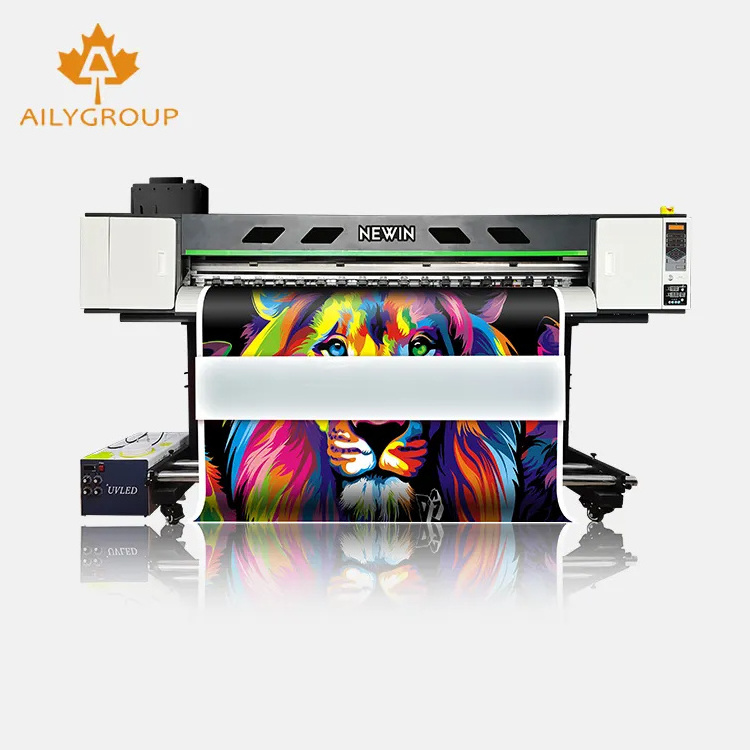

With this UV roll to roll printer, you can print
all the media that the Eco Solvent & Solvent Printer print, also the material they can not print. Such as colored tarpaulin, pvc soft film, wall paper. Besides, will get the long outdoor lifetime around 3-5 years, and indoor lifetime of 10 years.
What's more, due to the special printing method of UV, you will get much more higher quality printing result,
3D effect.
Good partner for extending your printing business to high-end requirement and more area.
|
Model No.
|
NW-UR1802E
|
Max Print Size
|
70'' (180cm)
|
||
|
Max Print Height
|
1-2mm
|
Power Consumption
|
Machine rated power: 1500W;
External drying power: 1900W |
||
|
Printer Head
|
2pcs Epson I1600/I3200/XP600
|
|
|
||
|
Printing Quality
|
True Photographic Quality
|
|
|
||
|
Printing Speed
|
6pass 6sqm/h
8pass 4.5sqm/h |
|
|
||
|
Ink Colors
|
CMYK+W
|
|
|
||
|
Ink Supply
|
1.5L ink tank with positive pressure continuos supply (Bulk ink system)
|
|
|
||
|
File Format
|
PDF,JPG,TIFF,EPS,AI,etc
|
|
|
||
|
Software
|
PhotoPrint/Ripprint
|
|
|
||
|
Working Environment
|
20-28 Degrees.
|
|
|
||
|
Machine Size&Net Weight
|
2827*770*1478mm ； 150kg
|
|
|
||
FAQ
Q1:What materials can uv printer print on ?
A:printers are multi-functional printers: Aily uv printer an print on Bottles and any materials such as phone case, leather, wood, plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc...
Q2:Can LED UV printer print embossing effect?
A:Yes, it can print embossing effect, for further information or samples pics, please contact our representative salesman.
Q3:Does it must be sprayed a pre-coating?
A:some material need pre-coating , such as metal, glass, etc.
Q4:How can we start to use the printer?
A:We will send the manual and teaching video with the package of the printer.Before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions. We will also offer excellent service by providing free technical support online.
Q5:What about the warranty?
A:Our factory provide one year warranty: any parts (except print head, ink pump and ink cartridges) questions on normal use, will provide new ones within one year(not include shipping cost). Beyond one year, only charge at cost.
Q6:what’s the printing cost?
A:Usually,1 square meters need cost about $1. Printing cost is very low.
Q7:how can I adjust the print height?
A:Aily UV printer installs infrared sensor so the printer can detect the height of printing objects automatically.
Q8:where can I buy the spare parts and inks?
A:Our factory also provide spare parts and inks, you can buy from our factory directly or other suppliers in your local market.
Customization of personality is ok, welcome to contact us now!
FAQ
A: printers are multi-functional printers: Aily uv printer 6040 can print on Bottles and any materials such as phone case, leather,
wood, plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc...
Q2:Can LED UV printer print embossing effect?
A: Yes, it can print embossing effect, for further information or samples pics, please contact our representative salesman.
Q3:Does it must be sprayed a pre-coating?
A :some material need pre-coating , such as metal, glass, etc.
Q4:How can we start to use the printer?
A: We will send the manual and teaching video with the package of the printer.
Before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions.
We will also offer excellent service by providing free technical support online.
Q5:What about the warranty?
A: Our factory provide one year warranty: any parts (except print head, ink pump and ink cartridges) questions on normal use, will provide new ones within one year(not include shipping cost). Beyond one year, only charge at cost.
Q6:what’s the printing cost?
A: Usually,1 square meters need cost about $1.
Printing cost is very low.
Q7:how can I adjust the print height?
A: Aily uv6040 printer installs infrared sensor so the printer can detect the height of printing objects automatically.
Q8:where can I buy the spare parts and inks?
A: Our factory also provide spare parts and inks, you can buy from our factory directly or other suppliers in your local market.
Customization of personality is ok, welcome to contact us now!
