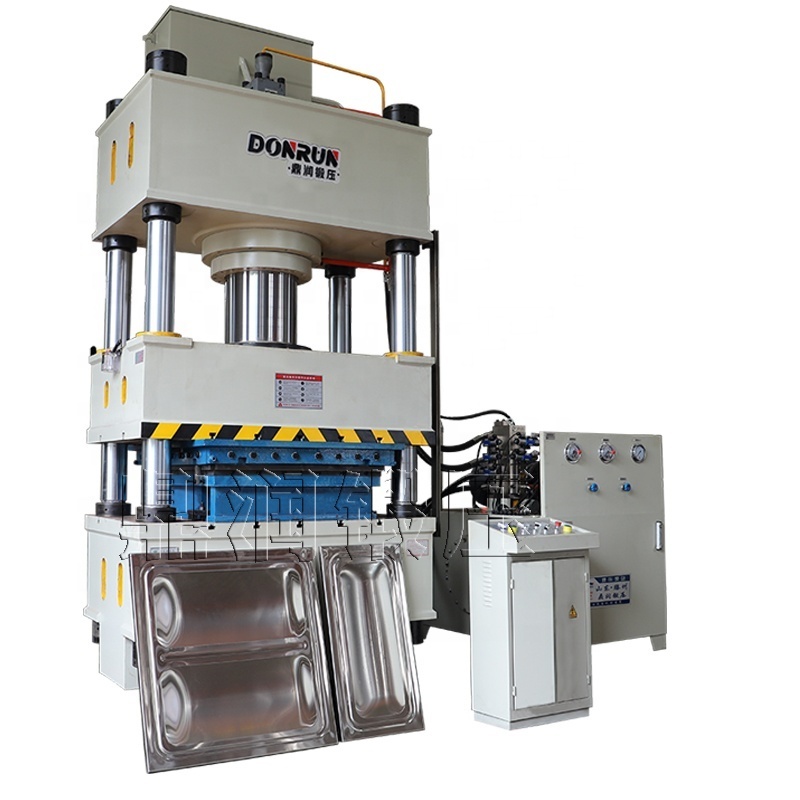

YQ32-400T Four column Deep Drawing water tank stamping hydraulic press
YQ32-400T Four column Deep Drawing water tank stamping hydraulic press
YQ32-400T Four column Deep Drawing water tank stamping hydraulic press
YQ32-400T Four column Deep Drawing water tank stamping hydraulic press
YQ32-400T Four column Deep Drawing water tank stamping hydraulic press
YQ32-400T Four column Deep Drawing water tank stamping hydraulic press
YQ32-400T Four column Deep Drawing water tank stamping hydraulic press
YQ32-400T Four column Deep Drawing water tank stamping hydraulic press

YQ32-400T Four column Deep Drawing water tank stamping hydraulic press

FOB Reference Price: Get Latest Price
≥1 Sets
US $27800
≥3 Sets
US $25200
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Return Force (kN):
4000 kN
Place of Origin:
Shandong, China
Brand Name:
Dingrun
Year:
new
Voltage:
optional
Dimension(L*W*H):
1000x900x2900mm
Weight (T):
13 T
Model Number:
YQ32
Motor Power (kw):
22 kw
Marketing Type:
new product 2021
Power Source:
Hydraulic
Product name:
YQ32-400T Deep Drawing water tank stamping hydraulic press
Keyword:
400 ton hydraulic press
Application:
stainless steel water tank press machine
keyword 2:
deep drawing hydraulic press
Processing material:
auto water tank 400 ton hydraulic press machine
Advantage:
High Efficiency water tank hydraulic press machine
Color:
Customized water tank hydraulic press machine
Frame:
Frame Steel Welded water tank hydraulic press machine

Quick Details

Machine Type:
Four-column Three-beam Hydraulic Press
Slide Stroke (mm):
300
Ejector Force (kN):
55
Return Force (kN):
4000 kN
Place of Origin:
Shandong, China
Brand Name:
Dingrun
Year:
new
Voltage:
optional
Dimension(L*W*H):
1000x900x2900mm
Weight (T):
13 T
Model Number:
YQ32
Motor Power (kw):
22 kw
Marketing Type:
new product 2021
Power Source:
Hydraulic
Product name:
YQ32-400T Deep Drawing water tank stamping hydraulic press
Keyword:
400 ton hydraulic press
Application:
stainless steel water tank press machine
keyword 2:
deep drawing hydraulic press
Processing material:
auto water tank 400 ton hydraulic press machine
Advantage:
High Efficiency water tank hydraulic press machine
Color:
Customized water tank hydraulic press machine
Frame:
Frame Steel Welded water tank hydraulic press machine
YQ32-400T Four column Deep Drawing water tank stamping hydraulic press
Product Description
The main performance characteristics: YQ32-400T Four column Deep Drawing water tank stamping hydraulic press economical and Practical, Hydraulic control adopts to insert set valve integrated system, decrease let out Point.Movement reliability, durable and long life span, Itis constant pressure to realize with calm in the first place and calm procedure two develop technology, have to insure press the function of delay time, The route of working pressure may be regulated in assigned scope, adopt buttons for centralized control, Can realization manual, Semi-automatic, automatic 3 operate form. Application field : This series of hydraulic presses is suitable for the pressing process of plastic materials, such as stamping, bending, flanging and thin stretching, etc. It can also be used for the correction, press-fit, plastic products and powder products. Product main technical specifications:
Specification
Unit
400T
Nominal force
KN
4000
Max. pressure of liquid
MPa
25
Stroke of slider
mm
600
Max. opening height
mm
1000
Working table size
mm*mm
1000x1000
Speed of slider
Descent speed
mm/s
80
Working speed
mm/s
6-15
Return speed
mm/s
100
Motor power
KW
37
Ejecting force
KN
100
Ejecting stoke (mm)
mm
300
Detailed Images


Hydraulic system
The hydraulic system device is arranged on the right side of the press, with cartridge integrated system, flexible action, reliable work, good sealing performance. The hydraulic pump comprises an oil tank, a high-pressure pump, motor, cartridge valves and other components.


Piston Rod
Medium-frequency hardening of 45 steel, deepening the material 2-3 mm, making the surface hardness of the piston rod to 55 ,effective solution to seal ring injury，not easy to scratch .



Cartridge Valve System

The cartridge valve is inteqrated into the system to reduce leakagepoints, reliable operation and long service life.

Combination gasket
All oil joints are sealed with a combination of gaskets, internally with rubber, externally with red copper customized by the manufacturer. Compared with the iron used by other manufacturers, the advantages are: 1.The ductility of red copper is strong, making the bond tight;2.In the process of high-pressure washing, red copper can effectively protect the rubber skin from breakage.

Core electrical appliance
It adopts relay control (PLC optional),
and it realizes electro-hydraulic control, jog, manual and semi-automatic
operation modes together with hydraulic valve.



Hydraulic Station layout
Compared with the plug-in oil pump,We use the external and horizontal position of the oil pump to reduce the heat generated when the oil is pumped out. The oil rises slowly, and the oil temperature is always controlled within a controllable range of about 55 degrees Celsius, so that the hydraulic components can work at a tolerable temperature and prolong the service life of the machine.
Hydraulic Tank
Shot blasting combines three new processes of high-pressure vacuuming dough clearance.After the equipment is commissioned, the fuel tank is opened again, and the hydraulic oil flows into the main tank through the high pressure, and the components of each part are cleaned twice.
Finished Products
YQ32-400T Four column Deep Drawing water tank stamping hydraulic press is suitable for the pressing of powder, and shaping of cattle and sheep salt bricks,molding of mineral salt block .Mainly used in enterprise assembly line.
Company Introduction
Tengzhou Dingrun Forging Machinery Plant is a manufacturer of hydraulic press, Our company is located in Tengzhou city , Shandong province , China .Our factory covers 2000 square meters. There are so many high quality engineers and experienced workers in our factory. We provide high quality machines at good prices.Welcome to visit our website or contact us for more details. We follow the principle of "satisfy our customers by active innovation; perfect every product; win customers' trust with good credit and high quality". We will perfect our service and adhere to the "higher, faster, newer, stricter" working attitude. We sincerely hope to establish business relationships with your esteemed corporation.
Certifications
YQ32-400T Four column Deep Drawing water tank stamping hydraulic press
Our hydraulic presses are all in accordance with export standards, and we have obtained relevant export certificates and CE certificates
Packing&Shipping
Package:
YQ32-400T Four column Deep Drawing water tank stamping hydraulic press
1. The machine adopts export standard packaging to prevent damage such as damage, deterioration and pollution of the goods.
2.Export packaging is adapted to the requirements of various modes of transport. Such as shipping export packaging needs to be strong, anti-extrusion, anti-collision; railway export packaging transportation requires packaging shock.
Related Products
FAQ
1.What's the price and specification of hydraulic press machine?
Re: Dingrun always provide high quality machine, as we know,oversea market is more important and difficult than domestic market because of communication time costing after sales.So always,our machines has enough quality standard to make sure the machine can work more than the real warranty period. In this way ,we will save a lot and think advance for the clients. Please let me know the utensil diameter and height, the pictures and drawing will be better, so that we can check and recommend suitable machine for you.

2. How about your machine quality?We are worry about the quality.
Re: Dingrun is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.

3. May I send samples to test? Do you have a test fee or not?
Re: Yes, if you could send us samples, it will be better. For testing, we have to customize the moulds according to your products, so the moulds cost will be on your account, of course the moulds belong to you.
