240W High Bay Lighting Led Power Supply Constant Current Waterproof 42V 36V Full Aluminum 5 Years Consant Current 201 - 300w 90%

240W High Bay Lighting Led Power Supply Constant Current Waterproof 42V 36V Full Aluminum 5 Years Consant Current 201 - 300w 90%

FOB Reference Price: Get Latest Price

≥1 Pieces

US $35.8

≥500 Pieces

US $34.3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Turefull

Model Number:: ZF-HBG-240-HL

Output Frequency:: 47-63HZ

Output Current:: 5.5A

Application:: LED Lighting

Certification:: CE/ROHS/FCC/TUV/SAA

Warranty:: 5 Years

Type:: Consant Current

Protection:: OVP/OCP/SCP/OTP

Efficiency:: 90%

Housing:: Full Aluminum

Capacitor:: Rubycon/king-box

Size:: 151.68*66.5mm

Product Name:: 200W waterproof LED high bay light ip67 LED electronic power supply

Quick Details

Output Power:: 201 - 300w

Input Voltage:: 90-277V

Output Voltage:: 36V

Place of Origin:: Guangdong, China

Brand Name:: Turefull

Model Number:: ZF-HBG-240-HL

Output Frequency:: 47-63HZ

Output Current:: 5.5A

Application:: LED Lighting

Certification:: CE/ROHS/FCC/TUV/SAA

Warranty:: 5 Years

Type:: Consant Current

Protection:: OVP/OCP/SCP/OTP

Efficiency:: 90%

Housing:: Full Aluminum

Capacitor:: Rubycon/king-box

Size:: 151.68*66.5mm

Product Name:: 200W waterproof LED high bay light ip67 LED electronic power supply

Product description

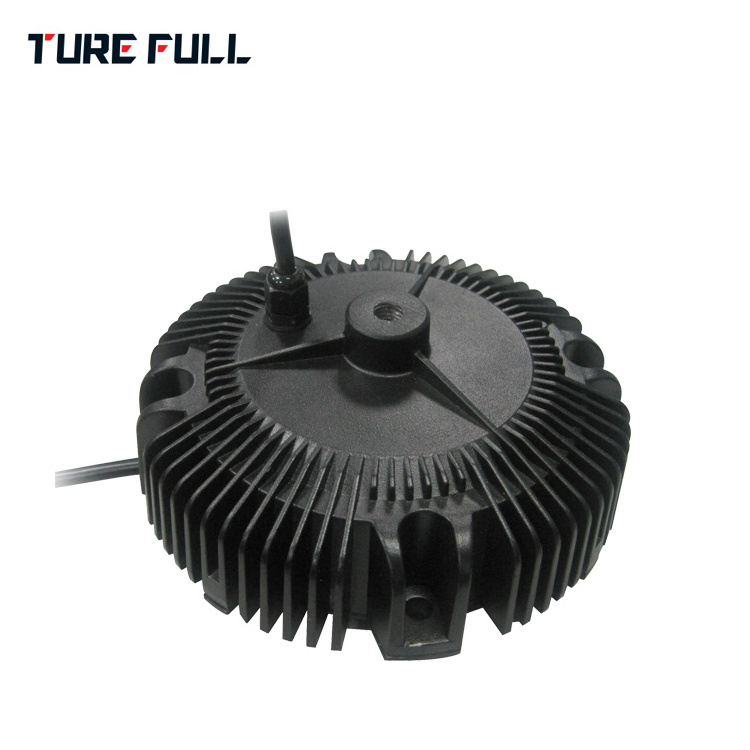

240W waterproof LED high bay light ip67 LED electronic power supply

1.Features and Specification

1.Adopt original imported IC,capacitor,Mos,conform to universal standards,Stable quality and stable performance.
2.Protection:OVP/SCP/OTP/OCP
3.Current Accuracy 3%,low Dc ripple ,high inversion frequency,low temperature,long lifespan
4.Wide input voltage 90-277V,100% load aging and full functional testing
5.high PFC>0.95,high efficiency>0.88
6.Power outdoor high power LED lighting
7.Full aluminum case,IP67 waterproof
8.5 years warranty

Model-No.		ZF-HBG-240W-36	ZF-HBG-240W-48	ZF-HBG-240W-60	ZF-HBG-240W-72
output	DC voltage	27～36Vdc	36～48Vdc	48～60Vdc	60～72Vdc
	Rated current	8.8～6.6A	6.6～5A	5～4A	4～3.3A
	Rated power	240W	240W	240W	240W
	Ripple current	400MA MAX	300MA MAX	200MA MAX	200MA MAX
	Current Accuracy	3%
Input	input voltage	90-277V
	Frequency Range	47-63HZ
	PFC（typical value）	PF >0.99 at 100-277V ac @ Full load
	Efficiency(typical value)	91%	92%	92%	93%
	input current	0.8A Max@100-277V ac & full load
	input surge current	277V ac input ,the MAX 40A
Protection design	output over-voltage protection	42V	56V	68V	80V
	output short-circuit protection	Hiccup, short circuit removal can be recovered by itself
	over-Temp.	85℃+/-10℃,start
environment	working Temp.	-40---+70℃
	working humidity	20-95%RH
	storage Temp. Hunidity	-40-+80℃，10-95%RH
	IP grade	IP67
	Vibration	10-500HZ,5G 12min/period，X,Y,Z Every 72 minutes
MTBF	MTBF	≥150Khrs MIL-HDBK-218F(25℃)
Safety and EMC	Safty standard	EN 61347-1：2008+A1：2011+A2：2013 , EN 61347-2-13：2006 , EN 62493：2010
	pressurization	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	leakage current	0.75mA max @ 277V ac 50HZ input
	Surge	Differential Mode:4KV common mode:6KV
	Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70%RH
	EMC radiation design	EN55015(CISPR15),EN61000-3-2;EN61000-3-3,GB17743,GB17625.1
	EMC anti-interference design	EN61547 ,EN550452,EN61000-4-2,3,4,5,6,8,11,GB/T18595,GB17626
size	Size	1304432mm
