Quick Details
-
Dimension(L*W*H):
-
2.2*1.4*2.1M
-
Weight:
-
4.5
-
Power (kW):
-
17.1 KW
-
Product Name:
-
Eva foaming machine
-
Feature:
-
Easy Simple Operation
-
Product Type:
-
Soles, Slippers, Strap, Sheets
-
Raw material:
-
EVA Granules, Rubber Material
-
Color:
-
Single Color or Double Colors
-
Working Table:
-
820*560MM
-
Clamping Force:
-
200T
-
Open Travel:
-
400mm
-
Machine Heater:
-
9.6KW
-
Motor:
-
7.5KW
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
MLR
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2.2*1.4*2.1M
-
Weight:
-
4.5
-
Power (kW):
-
17.1 KW
-
Product Name:
-
Eva foaming machine
-
Feature:
-
Easy Simple Operation
-
Product Type:
-
Soles, Slippers, Strap, Sheets
-
Raw material:
-
EVA Granules, Rubber Material
-
Color:
-
Single Color or Double Colors
-
Working Table:
-
820*560MM
-
Clamping Force:
-
200T
-
Open Travel:
-
400mm
-
Machine Heater:
-
9.6KW
-
Motor:
-
7.5KW
Feeds
Recommend Products
Specification

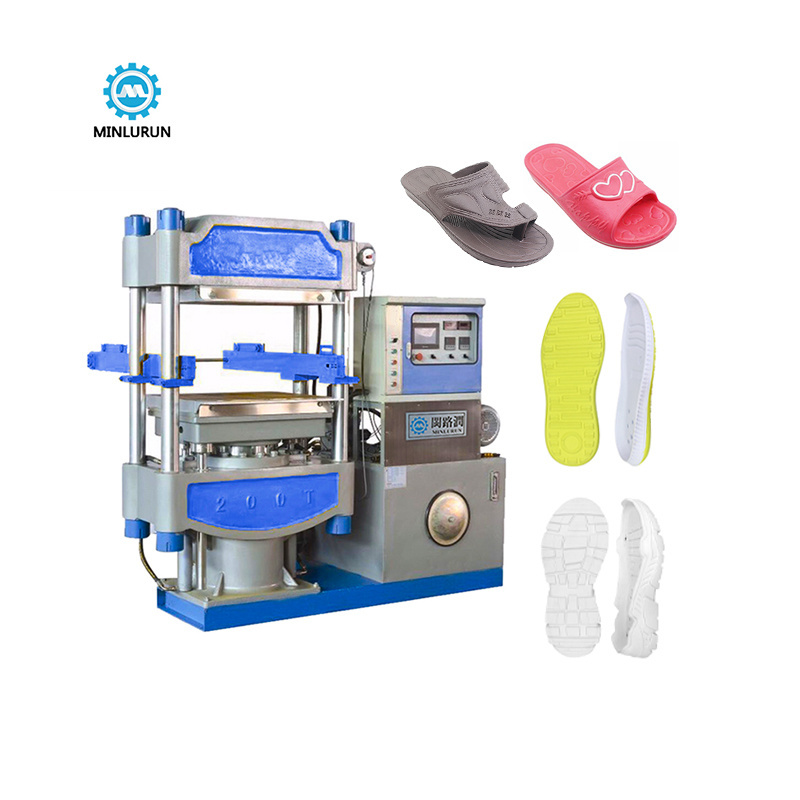

Double Colors Small Rubber EVA Slipper Foaming Machinery Pressing Molding Production Manufacture Machine
Character:
1. Low Operation Height
Operation height in accord with human engineering
2. Extra Height Opening Stroke.
Act be fixed opening stroke :400mm, which is not affected by any mould thickness changes and available for 2 plates mould.
3. Mold Thickness Adjusting Mechanism .Mold adjusting scope: 100-400mm
4. Rapid Mold Opening
The equipment adopts ACT mechanism to quickly open the mold.
1. Low Operation Height
Operation height in accord with human engineering
2. Extra Height Opening Stroke.
Act be fixed opening stroke :400mm, which is not affected by any mould thickness changes and available for 2 plates mould.
3. Mold Thickness Adjusting Mechanism .Mold adjusting scope: 100-400mm
4. Rapid Mold Opening
The equipment adopts ACT mechanism to quickly open the mold.
5.Using FOr making EVA Rubber foaming sheet, EVA slipper, EVA sole, Rubber Outsole, Flip Flop Straps.
|
Model
|
Unit
|
MLR-1S
|
MLR-1S2C
|
|
Capacity
|
Stations
|
1
|
1
|
|
Clamping Force
|
Ton
|
200t
|
1
|
|
Mould plate
|
MM
|
770*550
|
770*550
|
|
Pressing Force
|
T
|
200
|
200
|
|
Opening Stroke
|
MM
|
400
|
400
|
|
Die Heating Power
|
KW
|
7.5
|
7.5
|
|
Motor Power
|
KW
|
5
|
5.5
|
|
Total Power
|
KW
|
12.5
|
13
|
|
Oil Tank
|
L
|
250
|
250
|
|
Weight
|
KG
|
3200
|
3500
|
|
Measurement
|
MM
|
1800*1200*1000
|
1800*1400*1200
|
