Quick Details
-
Product Weight(kg):
-
0.2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNRICHER
-
Connection Mode:
-
Wiring
-
Product name:
-

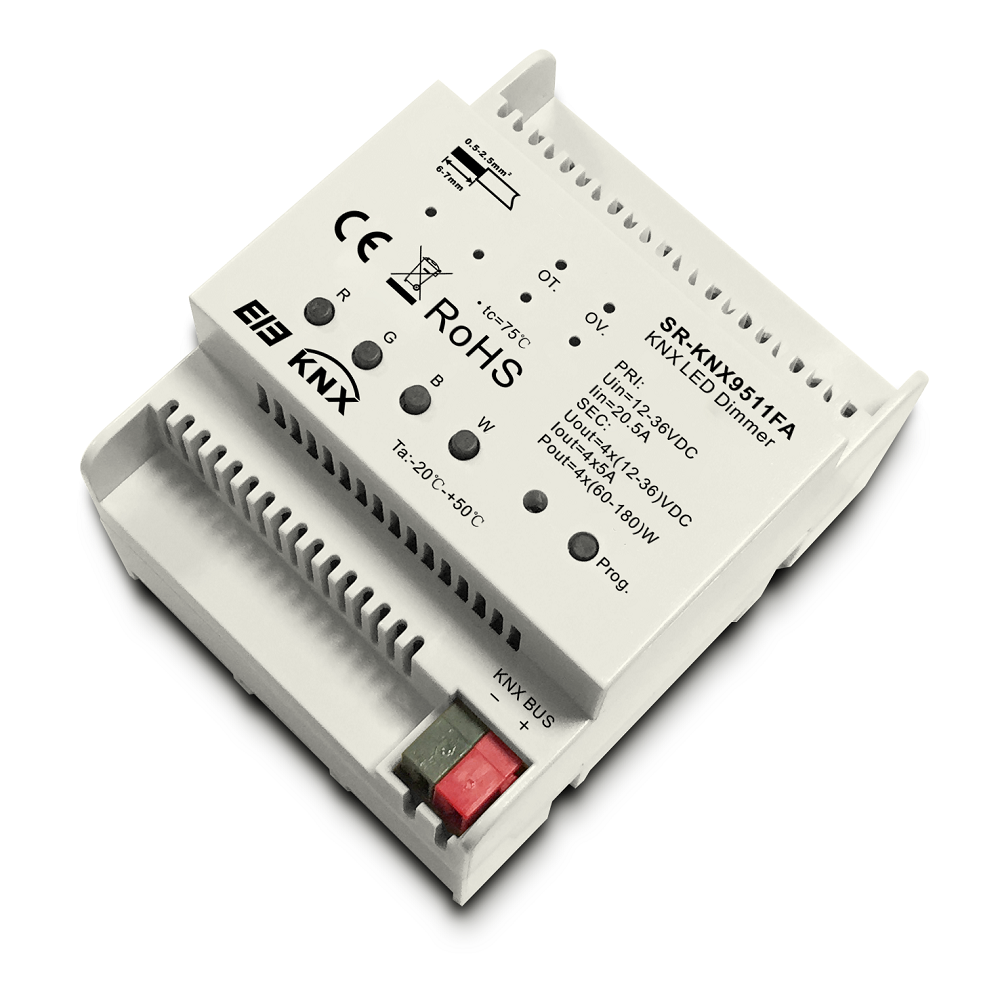

KNX LED Controller
-
Load voltage:
-
12-36V DC
-
Output Current:
-
5A*4CH
-
Features:
-
DIN RAIL installation; RGBW
-
EIB/KNX:
-
EIB bus connection terminal
-
Working Temperature:
-
-5 °C+45°C
-
Channel:
-
4 Channels
-
Rated Power:
-
4x(60-180)W
-
Protocol:
-
KNX
-
Bus Operating Voltage:
-
21-30V DC, via the KNX/EIB bus
Quick Details
-
Warranty(Year):
-
5-Year
-
Type:
-
Controller
-
Max. Load Power:
-
240-720W
-
Product Weight(kg):
-
0.2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNRICHER
-
Connection Mode:
-
Wiring
-
Product name:
-
KNX LED Controller
-
Load voltage:
-
12-36V DC
-
Output Current:
-
5A*4CH
-
Features:
-
DIN RAIL installation; RGBW
-
EIB/KNX:
-
EIB bus connection terminal
-
Working Temperature:
-
-5 °C+45°C
-
Channel:
-
4 Channels
-
Rated Power:
-
4x(60-180)W
-
Protocol:
-
KNX
-
Bus Operating Voltage:
-
21-30V DC, via the KNX/EIB bus
Product Description


Specification
Brand Name
|
SUNRICHER
|
Type
|
KNX Controller
|
Output Power
|
240-720W
|
Input voltage
|
12-36V DC
|
Output Current
|
5A*4CH
|
Features
|
DIN RAIL installation; RGBW
|
EIB/KNX
|
EIB bus connection terminal
|
Working Temperature
|
-5 °C+45°C
|
Channel
|
4 Channels
|
Rated Power
|
4x(60-180)W
|
Protocol
|
KNX
|
Bus Operating Voltage
|
21-30V DC, via the KNX/EIB bus
|
Size
|
90.1*72*66.4mm
|
