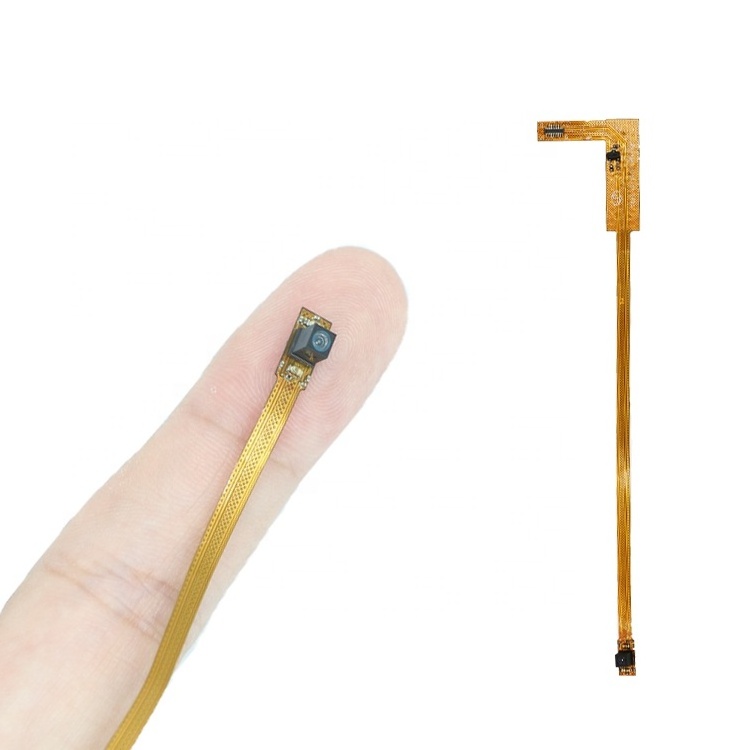

HZ OEM Low-Power OV6211 OmniVision HD CMOS Sensor 90degrees Wide angle Lens mini mipi Interface camera module 400*400

HZ OEM Low-Power OV6211 OmniVision HD CMOS Sensor 90degrees Wide angle Lens mini mipi Interface camera module 400*400

FOB Reference Price: Get Latest Price

≥1 Pieces

US $25

≥100 Pieces

US $23

≥1000 Pieces

US $21

≥10000 Pieces

US $15

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Mounting Type:: MIPI/USB

Description:: AR VR IR camera module

Sensor:: OV6211 OmniVision CMOS

Lens COLOR:: B&W

IR Filter:: 850+10nm

Resolution:: 400*400

Focus:: Fixed focus

FOV:: 90°

Interface:: Mipi Interface/USB2.0

Data Format:: YUY / MJPG

Frame Rate:: 120FPS

Lens Construction:: 2p

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: haozhou/OEM

Model Number:: HZ-OV6211 MIPI

Mounting Type:: MIPI/USB

Description:: AR VR IR camera module

Sensor:: OV6211 OmniVision CMOS

Lens COLOR:: B&W

IR Filter:: 850+10nm

Resolution:: 400*400

Focus:: Fixed focus

FOV:: 90°

Interface:: Mipi Interface/USB2.0

Data Format:: YUY / MJPG

Frame Rate:: 120FPS

Lens Construction:: 2p

Title goes here.

The OV6211 features a 3-micron OmniPixel3-GS™ global shutter pixel. It is capable of capturing full resolution (400 x 400 pixels)
video at 120 FPS, enabling smear-free black and white image capture in both landscape or portrait mode.

The OV6211 is an ultra-compact, low-power global shutter sensor that enables computer vision for a broad range of applications, including notebooks, ultrabooks, tablets, smartphones, gaming devices and security systems.

FOV: 90 degrees

Suitable for: VR glasses,positioning, sweeper

Pixels: 400*400@120fps

200*200@200fps

100*100@200fps

Product Paramenters

Mini Camera Module USB Interface HD Camera 0.3MP OV6211 OmniVision spi camera module

Customize factory High quality Mini Camera Module USB Interface HD Camera 0.3MP OV6211 OmniVision spi camera module

haozhou provides high quality camera modules with professional OEM design and manufacturing services to customers worldwide. We are carrying OmniVision, Sony, Samsung, Hynix, GalaxyCore...

The main application areas: mobile phone, digital still camera, laptop, DV, PDA/handheld, toy, PC camera, security camera,
automotive camera, tablet pc, visual doorbell, medical system, smart home, industrial image, recognition system, fingerprint identification system ...

Module No.	HZ-OV6211 MIPI
Module Size	9⁺84. .28*3.4mm
Focus	Fixed focus
0bject distance	20MM-50MM
Resolution	600LW/PH (Center)
interface	MIPI
Power	power 5.0V
Sensor Type	Ov6211
Active Array Size	400*400
Sensitivity	7190mV/(Lux : sec)@850
Pixel Size	3.0um x 3.0 um
Maximum Image Transfer Rate	400400, 100FPS ,200200 200 FPS
L ens Construction	2P
F/No	2.8
EFL	1.8 mm
BFL(Optical)	0.58mm
FOV	90°
TV Distortion	<0.7%
Relative llumination (Sensor)	=55%
IR Filter	850+10nm

Details Images

Customizable usb2.0 & usb3.0 camera module / mipi camera module / binocular camera module / endoscope camera module / HDMI camera module / infrared camera module / global shutter camera module etc.

Application Field More Applications: bar code scanning machine, license plate recognition, eye tracking, smart home, access control system, driving recorder, notebook computer, all-in-one machine, iris scanning, AR, VR, robot, machine vision, industrial inspection, ATM machine, automatic vending machine, face recognition, unmanned aerial vehicle, security gate machine, pc multimedia, attendance machine, endoscope, security monitoring, pos machine, conference camera, video doorbell, motion camera, 3D vision, arcade game machine, automatic terminal equipment Wait for more applications

Main Pixel

3mp ( VGA ) pixels, 1mp ( 720P) pixels, 1.3mp (960P) pixels

2mp(1080P)pixels, 3mp (1080P)pixels, 4mp (2KP) pixels

5mp ( 2KP) pixels, 8mp ( 4KP ) pixels, 12mp (4KP) pixels

13mp (4KP) pixels, 16mp (4KP) pixels, 20mp pixels

Interface
·FPC interface: DVP, MIPI;

Using CSP (BGA chip technology), COB, PLCC, CLCC process AV output interface: CVBS, AHD analog signal output

·USB output interface: free drive, plug and play, monocular, binocular;

Starlight level, wide dynamic H.264, IR-CUT infrared, global exposure, AF focus, high-speed frame, and other USB camera modules for various applications

Lens / Angle

Composition material: 2P3P 4P 5P 6P IG2P 2G2P 4G 5G 6G7G 8G 9G.etc

Focus: FF MFAF. (according to customer demand)

Angle of view: 5 degrees -240 degrees panorama

It is a close-focus lens; in a camera, the smaller the focal length, the larger the imaging range, the smaller the image of the
object in the screen, the larger the focal length, the smaller the imaging range, and the larger and clearer the image of the
object in the screen, this is a far-focus lens
