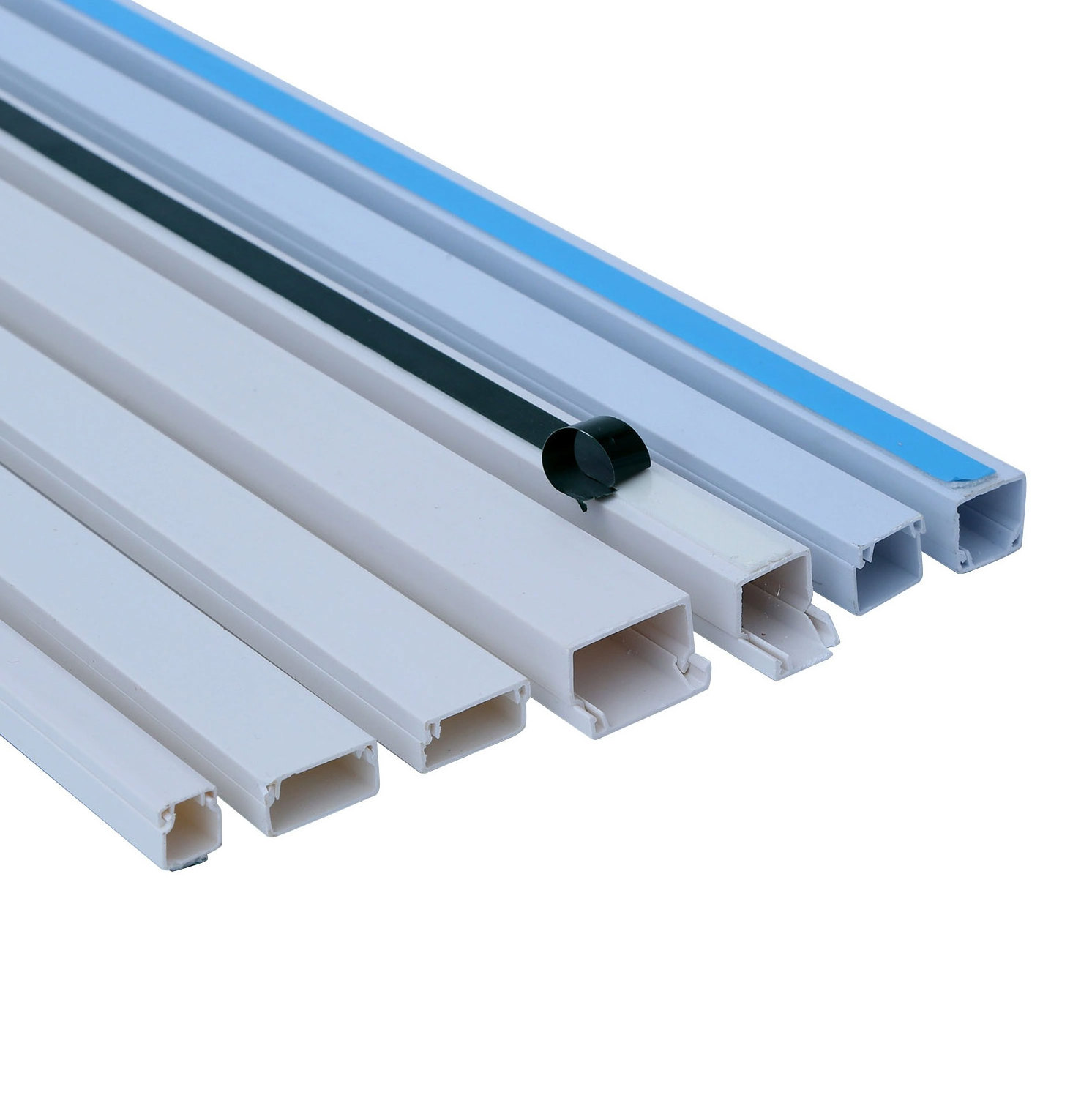

Fire Retardant PVC Cable Trunking 100x60 100x100 100x40 100x75 Wiring Ducts Solid

Fire Retardant PVC Cable Trunking 100x60 100x100 100x40 100x75 Wiring Ducts Solid

FOB Reference Price: Get Latest Price

≥1000 Meters

US $0.2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: Fire Retardant Pvc Cable Trunking

Name:: Fire Retardant Pvc Cable Trunking

Color:: White

Material:: new virgin PVC

Usage:: building material,cable protector

Advantage:: high quality, durable for over 50 years

Feature:: bear 180kgs w/o deformation, bend 180 degree w/o broken

Industry:: electrical

Application:: angle/corner/floor/wall

Back:: double side adhesive tape

Shape:: rectangle, arc, trapezoid-shaped

Quick Details

Brand Name:: Yangxun

Type:: Busbar

Place of Origin:: China

Model Number:: Fire Retardant Pvc Cable Trunking

Name:: Fire Retardant Pvc Cable Trunking

Color:: White

Material:: new virgin PVC

Usage:: building material,cable protector

Advantage:: high quality, durable for over 50 years

Feature:: bear 180kgs w/o deformation, bend 180 degree w/o broken

Industry:: electrical

Application:: angle/corner/floor/wall

Back:: double side adhesive tape

Shape:: rectangle, arc, trapezoid-shaped

Fire Retardant PVC Cable Trunking 100x60 100x100 100x40 100x75 Wiring Ducts Solid

Products Description

Product Name	PVC cable trunking
Specification	With tape ,without tape
Colour	RAL NO., Pantone color card, or based on your sample
Brand	OEM
Material	PVC
Certificate	ISO9001,ISO14001,REACH,ROHS
Features	1.High quality with high strength,environmentally-friendly material.
		2.Water-proof and fire-proof: No moisture absorbing, water permeation, and mildew arising.High flame retardant level and electrical insulation.
		3.Convenient for you to install cables and wires.
		4.OEM service: We can make custom

Product Paramenters

Size ( mm )	Thickness ( mm )	Size ( mm )	Thickness ( mm )	Size ( mm )	Thickness ( mm )
10X10	0.60	25X25	0.95	60X40	1.40
15X10	0.55	30X15	0.76	60X60	1.68
15X10	0.80	30X15	0.60	75X50	1.25
16X16	0.58	38x17	0.90	75X75	1.50
16X16	0.63	38x17	0.75	75X75	1.30
16X16	0.80	40X16	0.60	80X40	1.35
16X16	1.00	40X16	0.80	80X50	1.40
18X9	0.40	40X16	1.00	80X50	1.70
20X10	0.45	40X25	0.68	99X27	0.90
20X10	0.55	40X25	0.76	99X27	1.20
20X10	0.70	40X25	1.00	100X40	1.35
22X12	0.50	40X25	1.20	100X40	1.50
22X12	0.60	40X30	1.00	100X50	1.35
22X12	0.80	40X30	1.20	100X50	1.70
23X13	0.65	40X40	1.38	100X60	1.65
23X13	0.75	50X25	1.00	100X60	1.90
24X14	0.75	50X50	1.10	100X75	1.65
24X14	0.65	50X50	1.25	100X75	2.00
25X16	0.63	59X22	1.10	100X100	1.60
25X16	0.72	59X22	0.85	100X100	2.00
25X16	1.00	60X30	1.10	150X100	2.00
25X25	0.75	60X40	1.20
Other size	customizable

Details Images

Our Combustion- Proof PVC duct trunk have strength tenacity, and are Combustion-Proof, fireproofing, Damp proof, Alkalescency -Resistant. Aging-resistant.

Precautions:

DO ✔
Keep the pipes and fittings away from sharp objects, heat sources, and toxic and corrosive materials. Before you need to use pipes
and fittings, keep the protective packaging intact. Prevent dust or other materials from entering the pipe. Untie the pipe and
allow it to heat up in the sun before burial.

DON"T ❌ :
Throw pipe from delivery vehicles. Place pipeand fittings incontact withlubricating oil,gasoline,solvents,or other aggressive
materials. Heat pipe with an open flame.

Applications
