Quick Details
-
Frequency:
-
40.68MHZ
-
Welding Area:
-
Customized
-
Dimensions:
-
1760*1200*1880
-
Use:
-
PVC welding
-
Weight (KG):
-
300 KG
-
Power (kW):
-
5Kw,6kw,8kw,12kw,15kw
-
Keyword:
-
High frequency double head welding machine
-
Certification:
-
CE
-
Operation mode:
-
Foot step/pneumatic
-
Automatic Grade:
-
Semi-Automatic
-
Usage:
-
EVA,PVC,PU,Leather fabric emboosing
-
OEM/ODM:
-
Accepted
-
Working Station:
-
2
-
Color:
-
Green
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JINGSHUN
-
Voltage:
-
220V/380V
-
Frequency:
-
40.68MHZ
-
Welding Area:
-
Customized
-
Dimensions:
-
1760*1200*1880
-
Use:
-
PVC welding
-
Weight (KG):
-
300 KG
-
Power (kW):
-
5Kw,6kw,8kw,12kw,15kw
-
Keyword:
-
High frequency double head welding machine
-
Certification:
-
CE
-
Operation mode:
-
Foot step/pneumatic
-
Automatic Grade:
-
Semi-Automatic
-
Usage:
-
EVA,PVC,PU,Leather fabric emboosing
-
OEM/ODM:
-
Accepted
-
Working Station:
-
2
-
Color:
-
Green
Specification
|

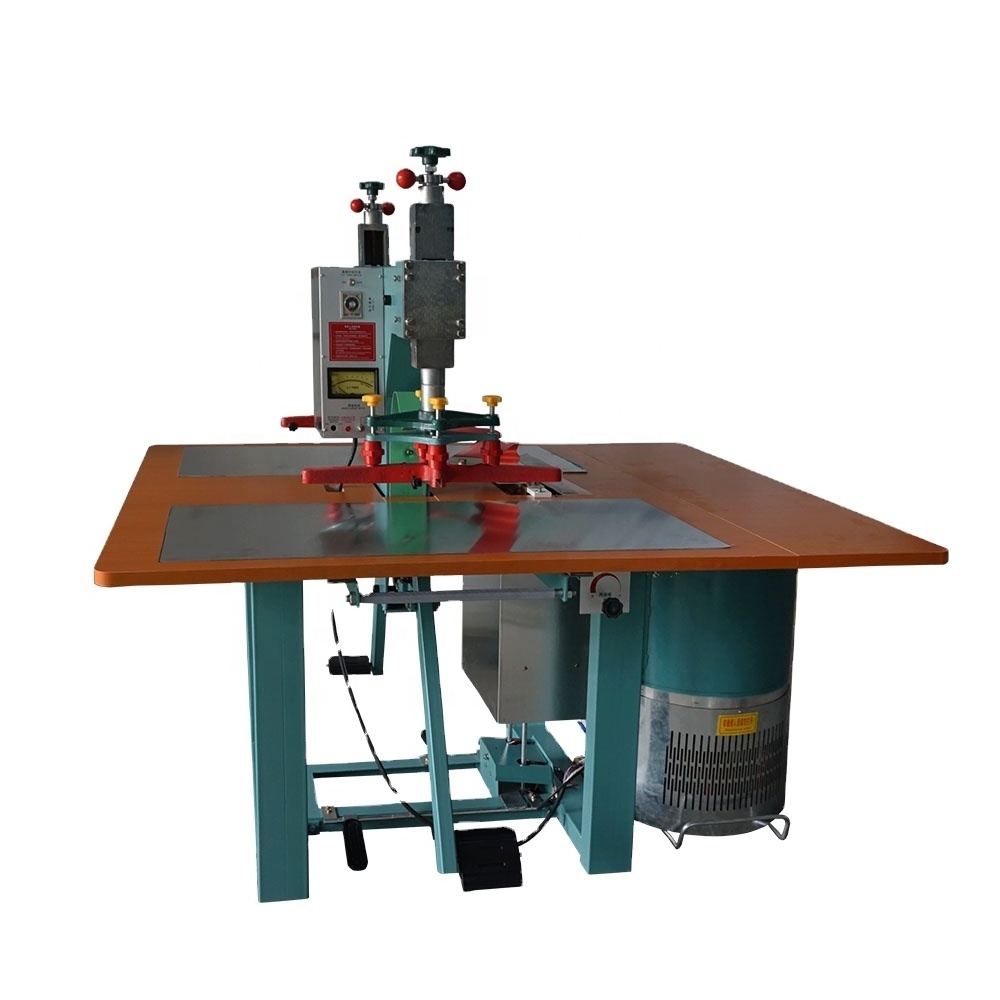

High frequency double head welding machine for pvc upvc
|
|
|
|
|
|
|||||
|
Model Number
|
JGP-5T/YRG
|
JGP-6T/YRG
|
JGP-8T/YRG
|
JGP-12T/YRG
|
JGP-15T/YRG
|
|||||
|
HF Output (KW)
|
5
|
6
|
8
|
12
|
15
|
|||||
|
Input Power (KVA)
|
8
|
10
|
15
|
20
|
25
|
|||||
|
Power Supply (VAC)
|
1-Phase 220 OR 3-Phase 380 OR Customized AC Voltage and frequency
|
3-Phase 380 or Customized.
|
|
|
|
|||||
|
Oscillation Frequency (MHZ)
|
40.68MHZ
|
|
27.12
|
20-27.12
|
|
|||||
|
Protection Sys.
|
Standard anti-spark protection / Overload current protection( High sensitivity anti-spark system is required.)
|
High sensitivity spark protection / Overload current relay
|
|
|
|
|||||
|
Lower Electrode Size(MM)
|
350*500 Or Customized.
|
|
|
|
|
|||||
|
Gap of Maximum Eletrode
|
100mm~150mm
|
|
|
|
|
|||||
|
Press Stroke
|
70mm
|
|
|
|
|
|||||
|
Oscillation Tube
|
7T85RB
|
7T69RB/E3069
|
7T69RB/E3069
|
E3130
|
8T85RB
|
|||||
|
Machine size (L*W*H) MM
|
1680*1200*1880
|
1760*1200*1880
|
1760*1200*1910
|
1880*1200*2230
|
2040*1200*2230
|
|||||
|
N.W. (KGS)
|
300
|
345
|
450
|
480
|
500
|
|||||
Product Features:
1. Pedal hydraulic electric-heating head model
2. Output strong electric power
3. Machine using a special designed mechanism, the maximum pressure of foot pedal can reach up to 5000KGS so as to meet most operating conditions.The high quality components make these machines work very smoothly and precisely;
4. Machine output power can be adjusted at the tuner according to electrode size and material thickness. In addition, other control devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity;
2. Output strong electric power
3. Machine using a special designed mechanism, the maximum pressure of foot pedal can reach up to 5000KGS so as to meet most operating conditions.The high quality components make these machines work very smoothly and precisely;
4. Machine output power can be adjusted at the tuner according to electrode size and material thickness. In addition, other control devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity;
5. High frequency welding machine equipped with frequency stabilizer and high frequency magnetic leakage suppressor, this device provide leakage of electron magnetic radiation to avoid jamming other electrical instruments such as television and radio,etc.
Packing & Delivery
High Frequency Sports Shoes Logo Welding Machine Standard export plywood cases
