Quick Details
-
D/C:
-
NO2021
-
Capacitance:
-
3UF
-
Cross Reference:
-
5W
-
Tolerance:
-
5%
-
Rated Voltage:
-
450V
-
Operating Temperature:
-
40/70/21
-
Description:
-
capacitor
-
Voltage - Rated:
-
220V
-
ESR (Equivalent Series Resistance):
-
1
-
Applications:
-
fan motor
-
Impedance:
-
1
-
Temperature Coefficient:
-
30
-
Current - Leakage:
-
1
-
Voltage - Breakdown:
-
450V
-
Capacitance Range:
-
0.5UF~10UF
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ezone
-
Model Number:
-
CBB61
-
D/C:
-
NO2021
-
Capacitance:
-
3UF
-
Cross Reference:
-
5W
-
Tolerance:
-
5%
-
Rated Voltage:
-
450V
-
Operating Temperature:
-
40/70/21
-
Description:
-
capacitor
-
Voltage - Rated:
-
220V
-
ESR (Equivalent Series Resistance):
-
1
-
Applications:
-
fan motor
-
Impedance:
-
1
-
Temperature Coefficient:
-
30
-
Current - Leakage:
-
1
-
Voltage - Breakdown:
-
450V
-
Capacitance Range:
-
0.5UF~10UF

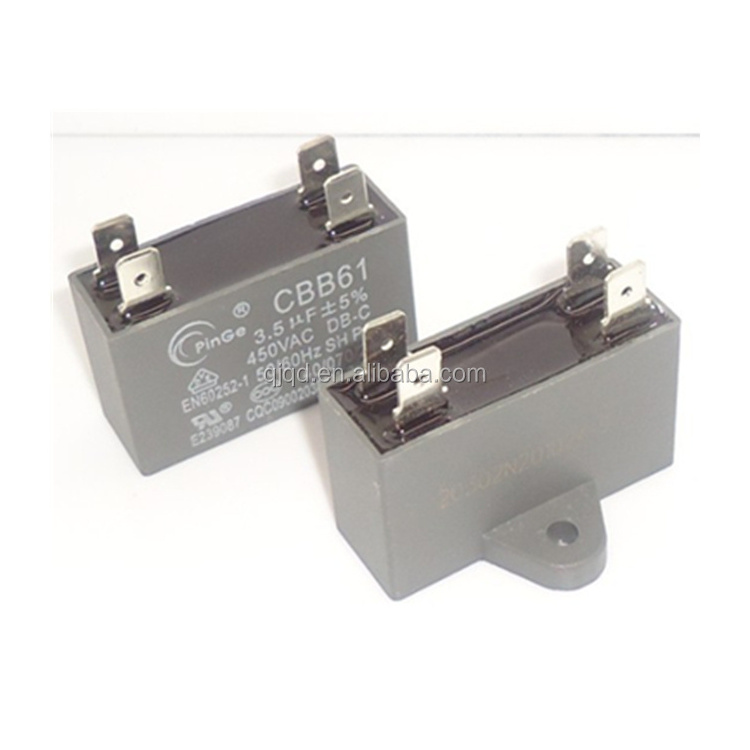

Fan motor run capacitor 3.0uF 3.5uF 2.5uF 1uF 450V CBB61
Technical data and performance indicators:
Detailed category: GBT/366.71-2005,IEC252
Climatic category: 40/085/21;40/070/21
Capacitance tolerance: ± 5%
Loss tangent: ≤0.002(100Hz)
Test voltage:
the first between the leads: 2Un 60s no breakdown, leads to the head and shell 2000VAC, 60s no breakdown.
| (μF) | 200~300VAC | 370-400VAC | 440-450VAC | ||||||
| Capacitance | L | B | H | L | B | H | L | B | H |
| 1 | 36 | 11 | 19 | 37 | 14 | 24 | 37 | 14 | 24 |
| 1.5 | 36 | 11 | 19 | 37 | 14 | 24 | 37 | 14 | 28 |
| 2 | 37 | 14 | 24 | 37 | 14 | 28 | 47 | 14 | 28 |
| 2.5 | 37 | 14 | 24 | 37 | 15 | 28 | 37 | 18 | 30 |
| 5 | 47 | 14 | 28 | 47 | 18 | 34 | 47 | 20 | 34 |
| 8 | 47 | 18 | 34 | 57 | 18 | 32 | 47 | 26 | 38 |
| 16 | 57 | 18 | 32 | 58 | 23 | 37 | 58 | 28 | 40 |
| 20 | 58 | 23 | 37 | 58 | 28 | 40 | 58 | 30 | 50 |
| 24 | 58 | 28 | 40 | 60 | 30 | 45 | 60 | 40 | 50 |
| 30 | 60 | 40 | 50 | 73 | 40 | 53 | 73 | 40 | 53 |
1. Rectangular flame plastic shell, epoxy sealed structure;
2. Internal explosion-proof devices with fused, use of safe and reliable.
3. The product has low loss, insulation resistance, good self-current, overload characteristics;
4. Suitable for washing machines, fractional horsepower motor, the motor starts to help and run.
5. Small size, reliable eletric performance, self-healig, canned epoxy mpregnant structure
Packaging Details:Cartons
Delivery Details:fan motor capacitor 3.5UF 450V CBB61 shipped 30 days after payment.
