Quick Details
-
Application:
-
Furniture factory
-
Weight (KG):
-
2000 KG
-
Power (kW):
-
18.5
-
Max.Working Width(mm):
-
650mm
-
Marketing Type:
-
Hot Product 2023
-
Feeding speed:
-
0-10m/min
-
Feeding motor:
-
1.5KW
-
Saw wheel diameter:
-
700mm
-
Maximum sawing width:
-
650mm
-
Maximum workpiece thickness:
-
300mm
-
Saw plate thinnest thickness:
-
0.2mm
-
Error:
-
±0.15mm
-
Length and width of saw blade:
-
Length 5350mm Width 75mm
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
Quick Details
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
2500*2600*1800mm
-
Application:
-
Furniture factory
-
Weight (KG):
-
2000 KG
-
Power (kW):
-
18.5
-
Max.Working Width(mm):
-
650mm
-
Marketing Type:
-
Hot Product 2023
-
Feeding speed:
-
0-10m/min
-
Feeding motor:
-
1.5KW
-
Saw wheel diameter:
-
700mm
-
Maximum sawing width:
-
650mm
-
Maximum workpiece thickness:
-
300mm
-
Saw plate thinnest thickness:
-
0.2mm
-
Error:
-
±0.15mm
-
Length and width of saw blade:
-
Length 5350mm Width 75mm
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
Origin certification CE certification Strength factory Alibaba certification
|

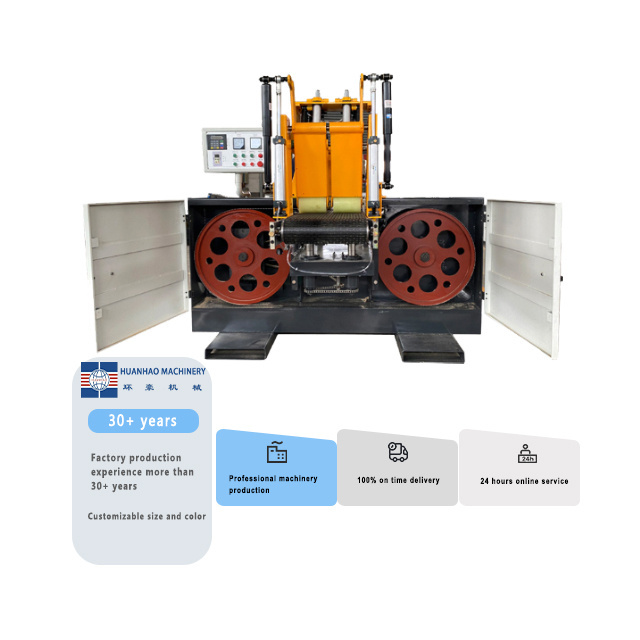

Upper-horizontal band saw
|
|
|
|
|
||||
|
型号
|
Saw wheel diameter
|
Maximum sawing width
|
lifting motor
|
Processable thickness
|
||||
|
HHG-400
|
730mm
|
400mm
|
15KW
|
0.2-400mm
|
||||
|
HHG-650
|
730mm
|
650mm
|
18.5kw
|
0.2-400mm
|
||||
|
Lower horizontal band saw
|
|
|
|
|
||||
|
HHG-400
|
730mm
|
400mm
|
15kw
|
0.2-400mm
|
||||
|
HHG-650
|
730mm
|
650mm
|
18.5kw
|
0.2-300mm
|
||||
|
CNC band saw
|
|
|
|
|
||||
|
HHG-400
|
730mm
|
400mm
|
15kw
|
0.2-400mm
|
||||
|
HHG-650
|
730mm
|
650mm
|
18.5kw
|
0.2-400mm
|
||||
Air pressure gauge
Button operation
---------- Welcome to visit the factory
----------
：Are you a trading company or manufacture？
We are a factory.
---------------------------------------------------------------------------------------------------------
：Can customized services be supported?
Yes, we can customize the color, size and LOGO you need
---------------------------------------------------------------------------------------------------------
：Where is your factory located?
We are a Chinese manufacturer in Qingdao City, Shandong Province
---------------------------------------------------------------------------------------------------------
：can you make the machine according to my design or prototype?
Yes. We have an professional designer for working out the most suitable
design and productionplan for the machine that you are going to book with us
---------------------------------------------------------------------------------------------------------
：Guarantee period？
Within one year since the date of finishing commissioning
---------------------------------------------------------------------------------------------------------
