Quick Details
-
Place of Origin:
-
Shanghai, China
-
Usage:
-
Oil
-
Application:
-
Metering
-

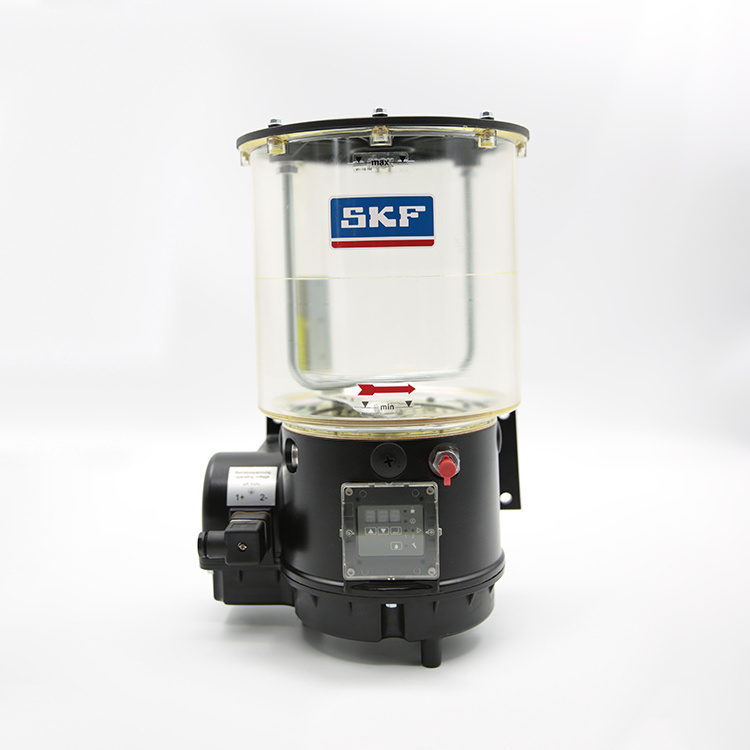

Product name:
-
Piston pump
-
Operating voltage:
-
12 V DC / 24 V DC
-
Fuse:
-
5 A / 3 A
-
Max. back pressure:
-
300 bars
-
Reservoir capacity:
-
6
-
Number of outlet ports:
-
max. 3 (1.1, 1.2 and 1.3)
-
Max. flow pressure:
-
700 mbars
-
Switching frequency:
-
100 Hz
Quick Details
-
Customized support:
-
No
-
Brand Name:
-
SKF
-
Model Number:
-
KFGS3-5+924
-
Place of Origin:
-
Shanghai, China
-
Usage:
-
Oil
-
Application:
-
Metering
-
Product name:
-
Piston pump
-
Operating voltage:
-
12 V DC / 24 V DC
-
Fuse:
-
5 A / 3 A
-
Max. back pressure:
-
300 bars
-
Reservoir capacity:
-
6
-
Number of outlet ports:
-
max. 3 (1.1, 1.2 and 1.3)
-
Max. flow pressure:
-
700 mbars
-
Switching frequency:
-
100 Hz
| Technical data | |
| Motor | |
| Operating voltage | 12 V DC / 24 V DC |
| Fuse | 5 A / 3 A |
| Unit | |
| Max. back pressure | 300 bars |
| Perm. operating temperature | –25 °C to +75 °C |
| Type of enclosure DIN EN 60529 . IP 55 | |
| Reservoir capacity | 6 |
| Reservoir material | PMMI (6 kg reservoir) |
| Number of outlet ports | max. 3 (1.1, 1.2 and 1.3)(If less than 3 outlet ports are needed, screw plugs are used in place of pump elements.) |
| Lubricant | grease up to NLGI grade 2 compatible with: plastics, NBR elastomers,copper and copper alloys. |
| Max. flow pressure | 700 mbars |
|
Please note: only use grease that has been approved by Willy Vogel AG.
Approved lubricants list “Lubricants for Progressive Systems,NLGI grade 2”, see “www.vogelag.com” or please request from “info@vogel berlin.de”. |
|
| Lubricantlevel switch | |
| Function: | |
|
Switch opens when lubricant drops to critical level.
Fault also signaled in the event of a wire break. |
|
| Operating voltage | 10 to 30 V DC |
| Switching frequency | 100 Hz |
| Continuous current | ≤ 200 mA |
| Natural current consumption | 6 to 12 mA |
| Voltage drop | ≤ 1.8 V at Icontinuous |
| EC directives | EN 6094752 |
| Integral IG502I control unit | |
| Modes and parameters | |
| Interval, adjustable | 0.1…99.9 h |
| Contact, adjustable |
0.1…99.9 min or 1…999 pulses
(pump running time) |
| Elapsedhours counter | 0.1…99999.9 h |
| nonerasable | |
| Faulthours counter |
0.1…99999.9 h |
|
Monitoring, adjustable with cycle switch (CS) or without monitoring (OFF) Basic factory setting: timer mode
|
|
| Pump running time | tCO = 4 min |
| Interval time | tPA = 1 h |
| Monitoring | COP = OFF |
