Quick Details
-
Model Number:
-
XLDH-F-II
-
Max. Current:
-
AC250V 3A DC30V 3A
-
Product name:
-
Safety Switch
-
Certificate:
-
CE ISO
-
Ambient temperature:
-
(-40℃~ 50℃)
-
Relative humidity:
-
0 ~ 95%
-
Contact rating:
-
AC250V 3A DC30V 3A
-
Working voltage:
-
AC220V 50/60HZ
-
Protection level:
-
IP67
-
Atmospheric pressure:
-
80 kPa ~110kPa
-
Start delay:
-
10 S
-
Power consumption of the whole machine:
-
3W
Quick Details
-
Max. Voltage:
-
AC220V 50/60HZ
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TSXL
-
Model Number:
-
XLDH-F-II
-
Max. Current:
-
AC250V 3A DC30V 3A
-
Product name:
-
Safety Switch
-
Certificate:
-
CE ISO
-
Ambient temperature:
-
(-40℃~ 50℃)
-
Relative humidity:
-
0 ~ 95%
-
Contact rating:
-
AC250V 3A DC30V 3A
-
Working voltage:
-
AC220V 50/60HZ
-
Protection level:
-
IP67
-
Atmospheric pressure:
-
80 kPa ~110kPa
-
Start delay:
-
10 S
-
Power consumption of the whole machine:
-
3W
Recommend Products
Products Description

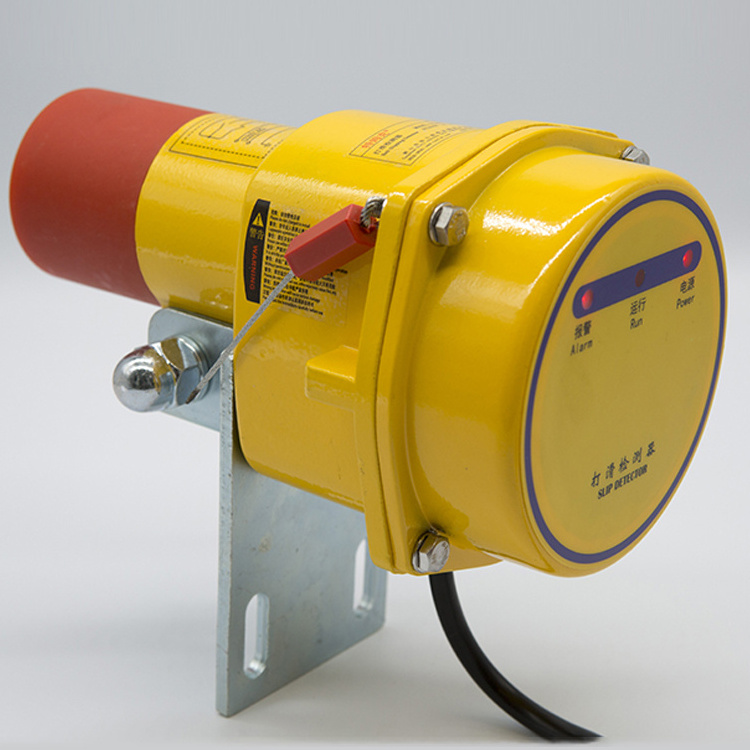

Through the real-time speed detection of the driven pulley of the belt conveyor, the speed switch can judge whether there is the slip fault of the conveyor belt, and send out alarm signals according to the speed change in time to avoid the loss and the expansion of the accident. This product adopts advanced ARM processor technology and embedded control principle, with stable performance, powerful function and high protection level.
Characteristic
Adopt high-strength A-alloy precise die-casting shell, with strong impact resistant capability.
The surface of the shell is sprayed with plastic and has strong corrosion resistance.
The shell has high protection level, good sealing, and can be used in harsh environment.
Using ARM MCU as control unit, it has fast response speed, high precision and small error.
Non-contact, non-fragile components, long service life.
Integral design, two bolts fixed, easy to install and use.
High contact capacity relay output.
With indicator lamp display, easy to use and observe.
|
Ambient temperature
|
-40℃~50℃
|
|
Relative humidity
|
0~95%
|
|
Atmospheric pressure
|
80 kPa ~110kPa
|
|
Working voltage
|
AC220V 50/60HZ
|
|
Power consumption of the whole machine
|
3W
|
|
Output mode and quantity
|
1× SPDT
|
|
Contact rating
|
AC250V 3A DC30V 3A
|
|
Detection range
|
10~9999 R/min
|
|
Optimum detection distance of sensor head
|
10mm
|
|
Alarm threshold
|
Alarm: Speed reduced by 50%
|
|
Start delay
|
10 S
|
|
Protection level
|
IP67
|
Zero speed switch with robost construction and non contacted elctronic type with built in timer with (2NC+2NO) contacts
