- Product Details
- {{item.text}}
Quick Details
-
Internal Dimensions(l x W x H)(mm):
-
5898*2352*2713mm
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
CIMC
Quick Details
-
Type:
-

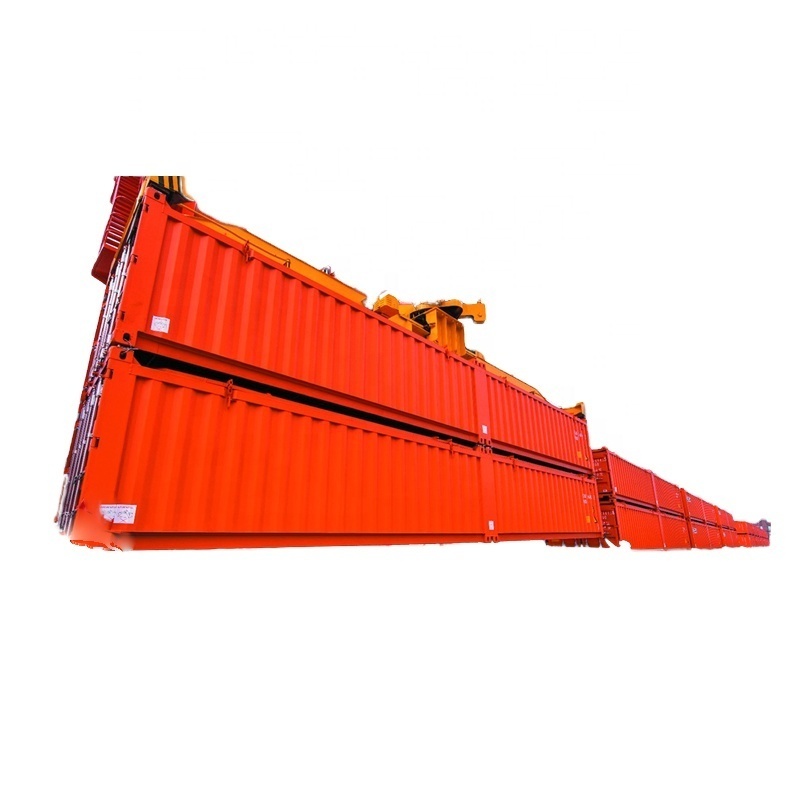

half height container
-
Capacity:
-
42.3cu.m
-
External Dimensions(l x W x H)(mm):
-
6058*2438*2896mm
-
Internal Dimensions(l x W x H)(mm):
-
5898*2352*2713mm
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
CIMC
Product
Features
1. Material: Corten A / SPA-H
2. Available for both 4-point and 8-point lifting for heavy loads reached to 37tons
3. Removable hard top covers and beam
4. Double layers transportation, suitable for all kind of bulk cargo sacks steel coils, steel pipes etc.
5. Container certified by Classification society TIR CSC CCS
6. Fully intermodal (road, rail or by sea)
2. Available for both 4-point and 8-point lifting for heavy loads reached to 37tons
3. Removable hard top covers and beam
4. Double layers transportation, suitable for all kind of bulk cargo sacks steel coils, steel pipes etc.
5. Container certified by Classification society TIR CSC CCS
6. Fully intermodal (road, rail or by sea)
Paramenters
|
Model
|
|
NPD-273
|
||
|
Specification
|
Dimensions
|
Value
|
||
|
External
|
Length
|
12192mm
|
||
|
|
Width
|
2438mm
|
||
|
|
Height
|
1717mm
|
||
|
Internal
|
Length
|
12032mm
|
||
|
|
Width
|
2352mm
|
||
|
|
Height
|
11496mm
|
||
|
Door opening
|
Width
|
2343mm
|
||
|
|
Height
|
1394mm
|
||
|
Top opening
|
Length
|
5739mm
|
||
|
|
Width
|
2132
|
||
|
Inside cubic capacity
|
|
42.3cu.m
|
||
|
Maximum payload
|
|
37000kg
|
||
|
For more specifications and details, please contact us!
|
|
|
||
Certifications
About us
Dalian CIMC Special Logistics Equipment Co., Ltd.
Dalian CIMC Special Logistics Equipment Co., Ltd. (abbreviation: CIMC Dalian) is a wholly-owned subsidiary of CIMC Group. It is located in the northeast sea-land transport center, China (Liaoning ) Free Trade Zone Dalian area, adjacent to container terminals and railway stations, and transportation is very convenient.
The company focuses on providing the customers with the customized containerized logistics equipment, integrated equipment, standardized and customized services. It has successfully developed more than 20 series and more than 2,000 kinds of customized products, which are widely used in shipping, railways, highways, marine engineering, petrochemical, steel, coal, electricity, energy storage, photovoltaic, food, medical, environmental protection, data, automotive, aerospace, military, construction and other industrial fields.
The company focuses on providing the customers with the customized containerized logistics equipment, integrated equipment, standardized and customized services. It has successfully developed more than 20 series and more than 2,000 kinds of customized products, which are widely used in shipping, railways, highways, marine engineering, petrochemical, steel, coal, electricity, energy storage, photovoltaic, food, medical, environmental protection, data, automotive, aerospace, military, construction and other industrial fields.
Why Choose Us
Reliable Quality
The company has passed ISO9001 and other 5 management system certifications,
CCS, LR, BV, DNV and other classification societies certification, obtained the production license for hazardous chemical tanks; obtained more than 300 patent authorizations; formulated 5 national and industry standards.
Proven Technique
For the design of new product, engineers conduct 3D modeling based on Pro-E software and apply CAE finite element analysis(Abbr.FEA) system in strength inspection. At the R&D center, varieties of tests can be processed, such as pressure, strength,
impaction, vibration etc.
Product Capacity
The company has an annual output of 150,000 TEU international standard containers, 100,000 units or railway bulk cargo 35 tons open top containers, and 50,000sets of offshore containers, offshore tanks, new energy storage equipment containers, mobile
medical containers, and other special equipment.
