Quick Details
-
Mounting Type:
-
Ceiling mounting
-
Description:
-
Z10 for outdoor lighting
-
Model Number:
-
ANT-6-Z10
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BRILLIANT
-
Theory:
-
PIR
-
Output:
-
0-10V dimming signal
-
Power supply:
-
12V-24V DC,>30mA
-
Certificate:
-
CE, UL
-
Mounting height:
-
50ft Max
-
Material:
-
Plastic
-
Detect Area:
-
360°
-
Color:
-
White
-
Warranty:
-
5 Years
-
OEM&ODM:
-
Available
-
Temperature:
-
-20℃ ~ + 60℃
Quick Details
-
Use:
-
outdoor lighting and solar street light etc.
-
Series:
-
Z10 sensor
-
Features:
-
IP65
-
Mounting Type:
-
Ceiling mounting
-
Description:
-
Z10 for outdoor lighting
-
Model Number:
-
ANT-6-Z10
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BRILLIANT
-
Theory:
-
PIR
-
Output:
-
0-10V dimming signal
-
Power supply:
-
12V-24V DC,>30mA
-
Certificate:
-
CE, UL
-
Mounting height:
-
50ft Max
-
Material:
-
Plastic
-
Detect Area:
-
360°
-
Color:
-
White
-
Warranty:
-
5 Years
-
OEM&ODM:
-
Available
-
Temperature:
-
-20℃ ~ + 60℃
Specifications
|
Power supply
|
12V-24V DC, >30mA
|
|
Remote range
|
50ft indoor, no backlight
|
|
Dim control output
|
0-10V, max. 25mA sinking current
|
|
Detection radius
|
20%/50%/75%/100%(1-8m)
|
|
Mounting height
|
Max 40ft
|
|
Time setting
|
10s-60min(adjustable)
|
|
Light control
|
10LUX-50LUX(adjustable)
|
|
Temperature
|
-4°F~+140°F(-20°C~+60°C)
|
|
IP rating
|
IP65
|
Products Description

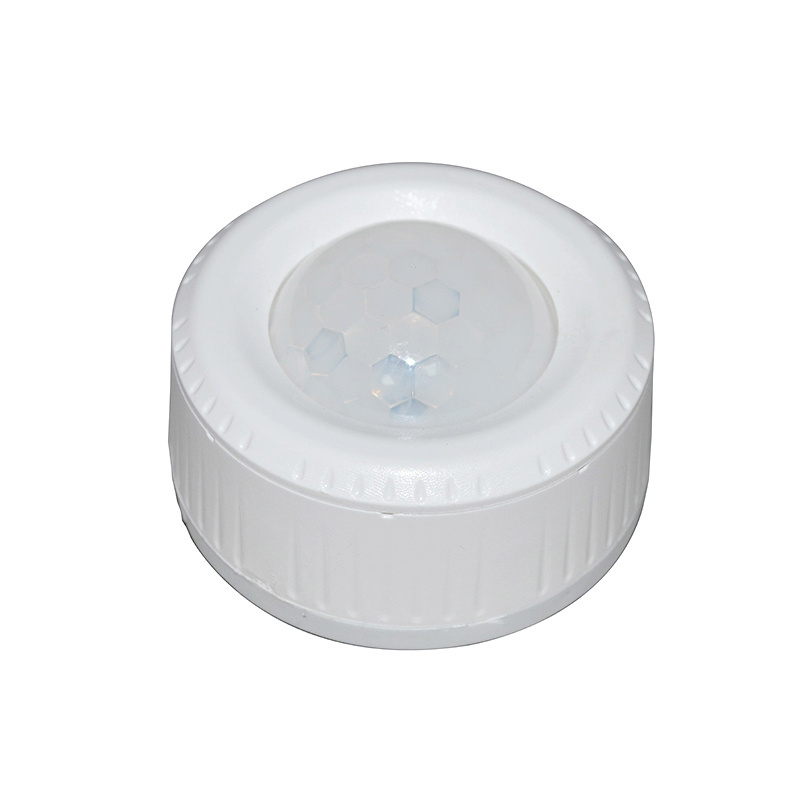

Quick detail of solar motion flood lights PIR motion sensor
1, Z10 international standard version
*0~10V output signal, daylight harvest 2 in 1, remote control setting.
2, Super compact size(57mm only in diameter).
3, IP65, specially designed for outdoor lighting simple plug and play.
4, Intelligent photocell to measure and differentiate natural light from LED light.
5,One-key memory commissioning & IR remote commissioning with memory function, easy setting and user friendly.
Description of solar motion street lights PIR motion sensor
The sensor uses Z10 standard socket, 12V DC input, 0-10v dimming and daylight harvest function by remote control setting high bay
max. 12m PIR motion sensor.
Advantage of IP65 PIR sensor
This kind of model is using Z10 standard socket, and if you own international standard Z10 socket, you can use our
sensor or other models with different functions. PIR sensor input current is very small, it’s a good choice for Solar outdoor
lighting.
The sensor uses Z10 standard socket, 12V DC input, 0-10v dimming and daylight harvest function by remote control setting high bay
max. 12m PIR motion sensor.
Advantage of IP65 PIR sensor
This kind of model is using Z10 standard socket, and if you own international standard Z10 socket, you can use our
sensor or other models with different functions. PIR sensor input current is very small, it’s a good choice for Solar outdoor
lighting.
Sensor Coverage
Application Scene：
