- Product Details
- {{item.text}}
Quick Details
-
Pressure:
-
16Mpa/20Mpa or required, 16Mpa/20Mpa or required
-
Weight:
-
25
-
Power:
-
0.75KW/1.5KW/2.2KW/3KW, 1.5KW/2.2KW
-
Dimension(L*W*H):
-
Custom size
-
Product name:
-
Hydraulic power pack
-
Voltage:
-
AC12/24V
-
Oil tank:
-
12L-20L
-
Installation:
-
horizontal
-
Displacement:
-
2.5ml/r or required
-
After warranty service:
-
Online support
-
Other:
-
Custom design can be provided
Quick Details
-
Warranty:
-
1 Year
-
Brand Name:
-
HYTEC
-
Place of Origin:
-
Shandong, China
-
Pressure:
-
16Mpa/20Mpa or required, 16Mpa/20Mpa or required
-
Weight:
-
25
-
Power:
-
0.75KW/1.5KW/2.2KW/3KW, 1.5KW/2.2KW
-
Dimension(L*W*H):
-
Custom size
-
Product name:
-
Hydraulic power pack
-
Voltage:
-
AC12/24V
-
Oil tank:
-
12L-20L
-
Installation:
-
horizontal
-
Displacement:
-
2.5ml/r or required
-
After warranty service:
-
Online support
-
Other:
-
Custom design can be provided

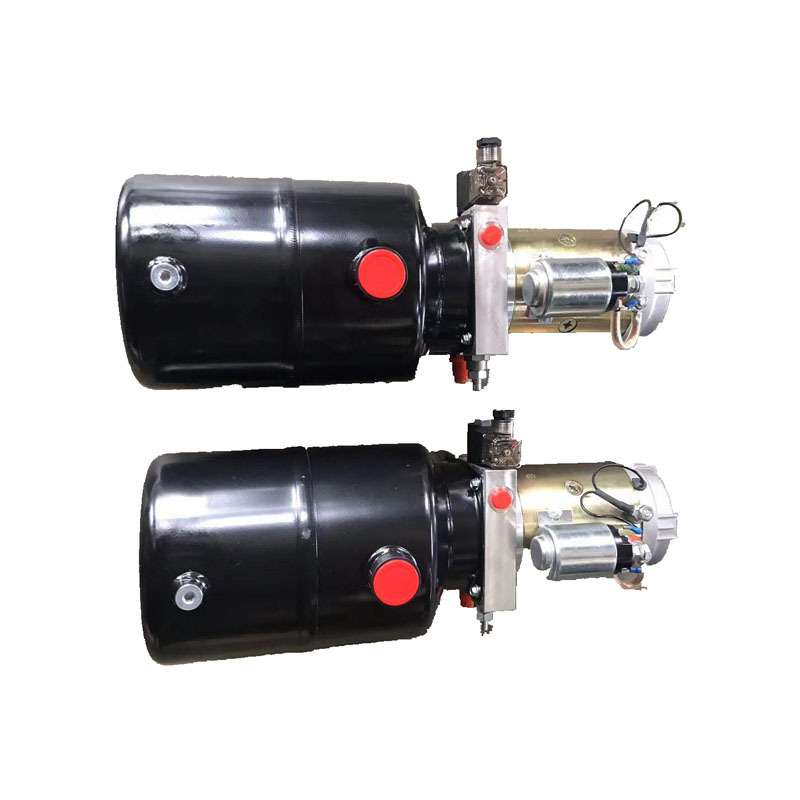

Guaranteed after-sales service 12v dc hydraulic power unit for trailer
1. Usage:For tipper trailer;
2. Voltage: 12V/24V;
3. Working pressure:16Mpa;
4. Installation:horizontal installation;
5. Oil tank:10-20L;
6. Custom design can be provided.
|
Product name
|
Hydraulic power pack
|
|
Pressure
|
16Mpa/20Mpa or required
|
|
Voltage
|
AC12/24V
|
|
Oil tank
|
12L-20L
|
|
Power
|
1.5KW/2.2KW
|
|
Installation
|
horizontal
|
|
Condition
|
New
|
|
Displacement
|
2.5ml/r or required
|
|
After warranty service
|
Online support
|
|
Other
|
Custom design can be provided
|
Popular model
|
Motor voltage
|
Motor power
|
Displacement
|
System pressure
|
Tank capacity
|
L(mm)
|
|
12VDC
|
1.5KW
|
2500rpm
|
20Mpa
|
12L
|
559
|
|
|
|
|
|
10L
|
791
|
|
24VDC
|
2KW
|
|
18Mpa
|
12L
|
559
|
|
|
|
|
18MPa
|
20L
|
579
|
More models
Application
How about the after sale service?
1)We will always keep the quality the same with the same and if there is something with the quality,we will make compensaton for our coustomers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will slove the problems in the selling for our coustomers.
