Quick Details
-
Weight (KG):
-
230
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MINGYUE
-
Dimension(L*W*H):
-
750*700*1600mm
-
Product name:
-
biltong packaging machine
-
Capacity:
-
30-60bags/min
-
Range of measurement:
-
1-100ml
-
Sealing type:
-
3 or 4 sides sealing/ backing sealing
-
Material:
-
Stianless Steel
-
Control system:
-
PLC+touch Screen/normal Screen
-
Touch Screen Language:
-
Chinese,English or according to customer's requirements
-
Certification:
-
CE
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Function:
-
FILLING, Sealing
-
Packaging Type:
-
Bags, Film, Foil
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
230
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MINGYUE
-
Dimension(L*W*H):
-
750*700*1600mm
-
Product name:
-
biltong packaging machine
-
Capacity:
-
30-60bags/min
-
Range of measurement:
-
1-100ml
-
Sealing type:
-
3 or 4 sides sealing/ backing sealing
-
Material:
-
Stianless Steel
-
Control system:
-
PLC+touch Screen/normal Screen
-
Touch Screen Language:
-
Chinese,English or according to customer's requirements
-
Certification:
-
CE
-
Marketing Type:
-
Ordinary Product
Hot Selling Biltong Packaging Machine With Low Price
Technical parameters
|
Model |
MY-60 |
|
Capcity |
40-60 bags/min |
|
Range of measurement |
1-100ml |
|
Bag size |
(L)15-160 (W)20-100mm |
|
Power |
1180W |
|
Voltage |
380V/50HZ 220V/50-60HZ |
|
Packing material |
Paper/the polyethylene,nylon/polyethylene,tea filter paper,etc |
|
Net weight |
250kg |
|
Overall dimensions |
800*800*1800mm |
Machine features
1) Be able to weight, bag-making, filling, sealing, cutting,lot number automatically.
2 ) It has color control system which can get the complete trade mark design
(photoelectricity control system).
3) The machine fix stepper motor controller,its advantage is precise,needless to adjust other parts.
4) Intelligent temperature control by temperature controller to make heat balance better.use bilingual display screen control system and stainless steel cabinet.
5) Fine packaging performance ,low noise ,clear sealing texture and strong sealing performance.
6) With safe plastic box on rotating blade to avoid hurting operator's hands.
7) Need to change new temperature controller,blade& pressing mode only after 3 years continuous operation,2 shifts a day and other parts is still good and safe freely).
8) With printer (to be able to code the date and batch number) and rotating blade(be able to adjust the length of bag and shape of bag notch edge packing.
Applicable packing film
Paper/PE, PT/PE, PET/AL/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed.
Recommendation Of Popular Products
If you are interested in the following products and would like to know more about them ,please click on the products pictures
or
Contact Us Directly

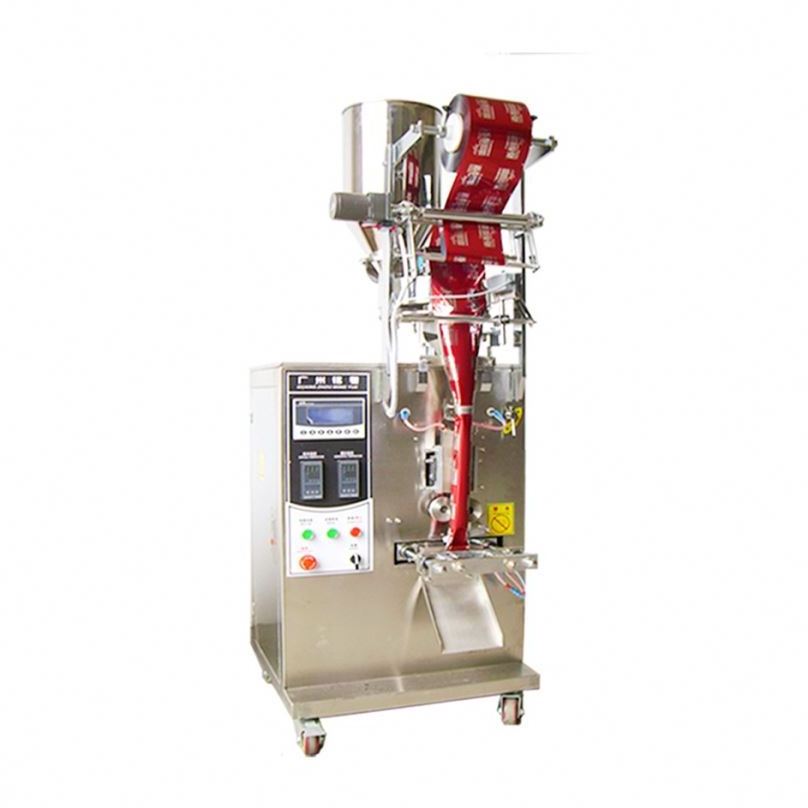

Machine Picture
