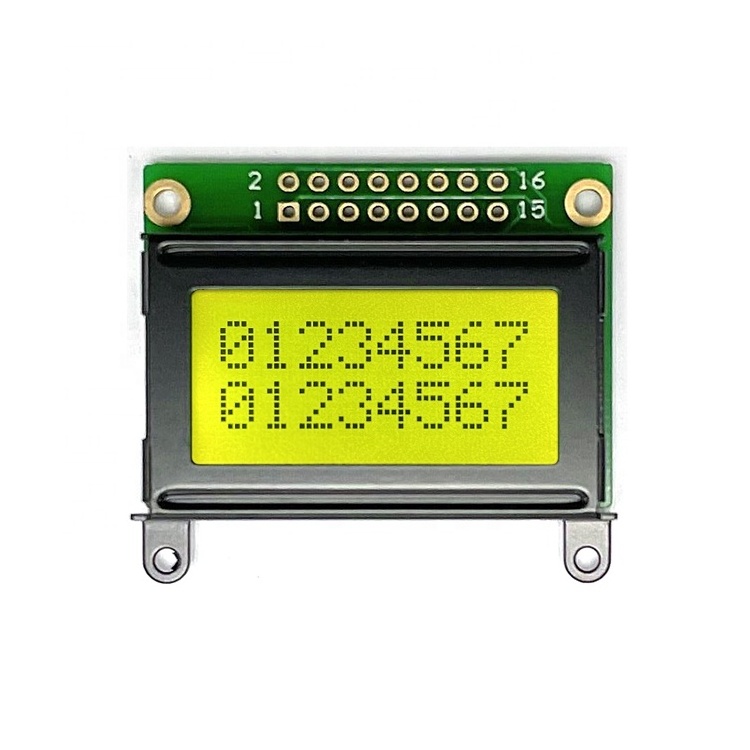

1.3 inch 08x02
character lcd display
8-bit parallel interface
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TCC
-
Resolution:
-
8*2
-
Viewing direction:
-
6'clock
-
External dimensions:
-
40.0*30.0*12mm
-
Visual area:
-
30.0*14.0mm
-
Active area:
-
25.7*9.5mm
-
Interface:
-
8-bit parallel
-
Controller IC:
-
SPLC780/ST7066
-
Display mode:
-
STN/Positive/Transflective/YG
-
Backlight:
-
LED Yellow green
-
Number of pins:
-
16 pin
Quick Details
-
Type:
-
Character
-
Display Size:
-
1.3"
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TCC
-
Resolution:
-
8*2
-
Viewing direction:
-
6'clock
-
External dimensions:
-
40.0*30.0*12mm
-
Visual area:
-
30.0*14.0mm
-
Active area:
-
25.7*9.5mm
-
Interface:
-
8-bit parallel
-
Controller IC:
-
SPLC780/ST7066
-
Display mode:
-
STN/Positive/Transflective/YG
-
Backlight:
-
LED Yellow green
-
Number of pins:
-
16 pin
Specification
|
Resolution
|
8*2
|
|
Viewing direction
|
6'clock
|
|
External dimensions
|
40.0*30.0*12mm
|
|
Visual area
|
30.2*14.0mm
|
|
Active area
|
25.7*9.5mm
|
|
interface
|
8-bit parallel
|
|
Display mode
|
STN/Positive/Transflective/YG
|
|
Backlight
|
LED Yellow green
|
|
Controller IC
|
SPLC780/ST7066
|
|
Operating temp
|
-20～70℃
|
|
Storage temp
|
-30～80℃
|
|
Number of pins
|
16 pin
|
SYB0802BV40
Product packaging
Choose a suitable electrostatic packaging bag according to the size of the product, and use an airplane box with foam to ensure that the product is not damaged during transportation.
More products
Product application
Our products are used in a wide range of applications, such as electronic equipment, medical equipment, industrial equipment and smart home.
Certifications
We have a complete quality management system and have passed ISO9001:2015, SGS, TUV,BV, RoHS, and other certifications.
Manufacturing Technique
The company has advanced manufacturing equipment to provide customers with a strong guarantee for fast service and delivery.
TCC always adhere to the "Quality First" and strictly control the production process, the product after high temperature aging 100% inspection of qualified shipments.
