Quick Details
-
Main steel structure:
-
Galvanized or painted steel chassic
-
Wall & Roof:
-
EPS/Glass wool/ Rock wool sandwich panel
-
Window:
-
Aluminium alloy /PVC sliding window
-
Door:
-
Sandwich panel/steel door/wood door
-
Floor:
-
18mm plywood + PVC covering
-
Accessories:
-
Bolts,screws,nails
-
Wind rating:
-
100km/h for standard, if need cyclone, can be advise before pricing.
-
Type:
-
knock down system
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YAJ BUILDING
-
Size:
-
6m x 3m x 2.6m
-
Main steel structure:
-
Galvanized or painted steel chassic
-
Wall & Roof:
-
EPS/Glass wool/ Rock wool sandwich panel
-
Window:
-
Aluminium alloy /PVC sliding window
-
Door:
-
Sandwich panel/steel door/wood door
-
Floor:
-
18mm plywood + PVC covering
-
Accessories:
-
Bolts,screws,nails
-
Wind rating:
-
100km/h for standard, if need cyclone, can be advise before pricing.
-
Type:
-
knock down system
|
Specification
|
|
|
|
|
||||
|
Product Name
|

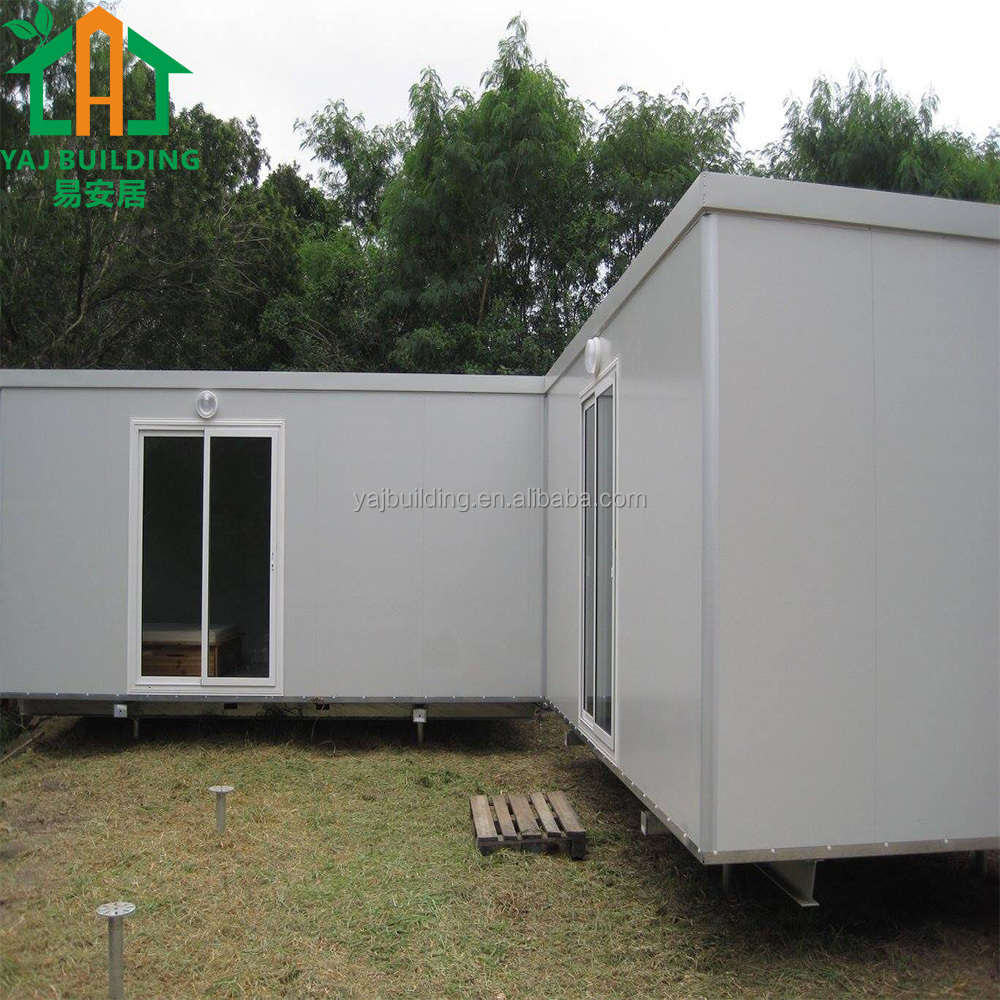

Easy Quick Assembly Metal Structure Prefab Mobile Modular Prefabricated House Home For Living
|
|
|
|
||||
|
Size
|
L6000 X W 3000 X H 2600 mm
|
|
|
|
||||
|
Shipment
|
12 units/40HC
|
|
|
|
||||
|
Wall
|
EPS/Rockwool/Fiberglass wool/Rock wool/PU Sandwich Panel
|
|
|
|
||||
|
Roof
|
EPS/Rockwool/Fiberglass wool/Rock wool/PU Sandwich Panel
|
|
|
|
||||
|
Floor
|
18 mm Plywood+ PVC flooring
|
|
|
|
||||
|
Window
|
PVC sliding window or customized
|
|
|
|
||||
|
Door
|
Single Steel/Double Sliding/Folding Glass Door
|
|
|
|
||||
|
Assemble days
|
2 workers/2units/day
|
|
|
|
||||
|
Technical Data Sheet
|
|
|
|
|
||||
|
Wind Load
|
Anti 100KM/H, can be reach to 200km/h if custom
|
|
|
|
||||
|
Floor Load
|
200 KG/㎡
|
|
|
|
||||
|
Roof load
|
50 KG/㎡
|
|
|
|
||||
|
Seismic Load
|
7 degree
|
|
|
|
||||
Advantage
1. Detachable / Collapsible & slop roof container house
2. Low transportation cost & labor cost saving
3. Convenient moving,easy assembly and disassembly
3. Convenient moving,easy assembly and disassembly
4. Recyclable
5. Customization and drawing support
Application
1. Low cost housing units, classroom, dormitory
2. Office Building
3. Site office, worker camp
4. Garden house, shop
5. Modular hotel rooms, holiday house
Foshan YAJ Building Co., Ltd is located in Foshan City, Guangdong province, China, with professional manufacture and export experience over 15 years.
Specializes in different type
container house
,
steel structure building
,
prefabricated house
,
sandwich panels
. With professional experiences, advanced technical knowledge and strict quality controls, YAJ building is in the forefront as one of the most trusted firms in the industry, provide one-stop service from design, manufacturing, logistics, customs clearance, to installation supervision for our products.
