Quick Details
-
Air Consumption:
-
12m3/min
-
Place of Origin:
-
China
-
Brand Name:
-
TXSL
-
Voltage:
-
380v
-
Power:
-
7.5KW
-
Dimension(L*W*H):
-
2070*1000*1200MM
-
Weight:
-
1400 kg
Quick Details
-
Max. Conveying Distance:
-
30m
-
Max Aggregate Size:
-
15mm
-
Hose Inner Diameter:
-
57 mm
-
Air Consumption:
-
12m3/min
-
Place of Origin:
-
China
-
Brand Name:
-
TXSL
-
Voltage:
-
380v
-
Power:
-
7.5KW
-
Dimension(L*W*H):
-
2070*1000*1200MM
-
Weight:
-
1400 kg
Description of
Description:

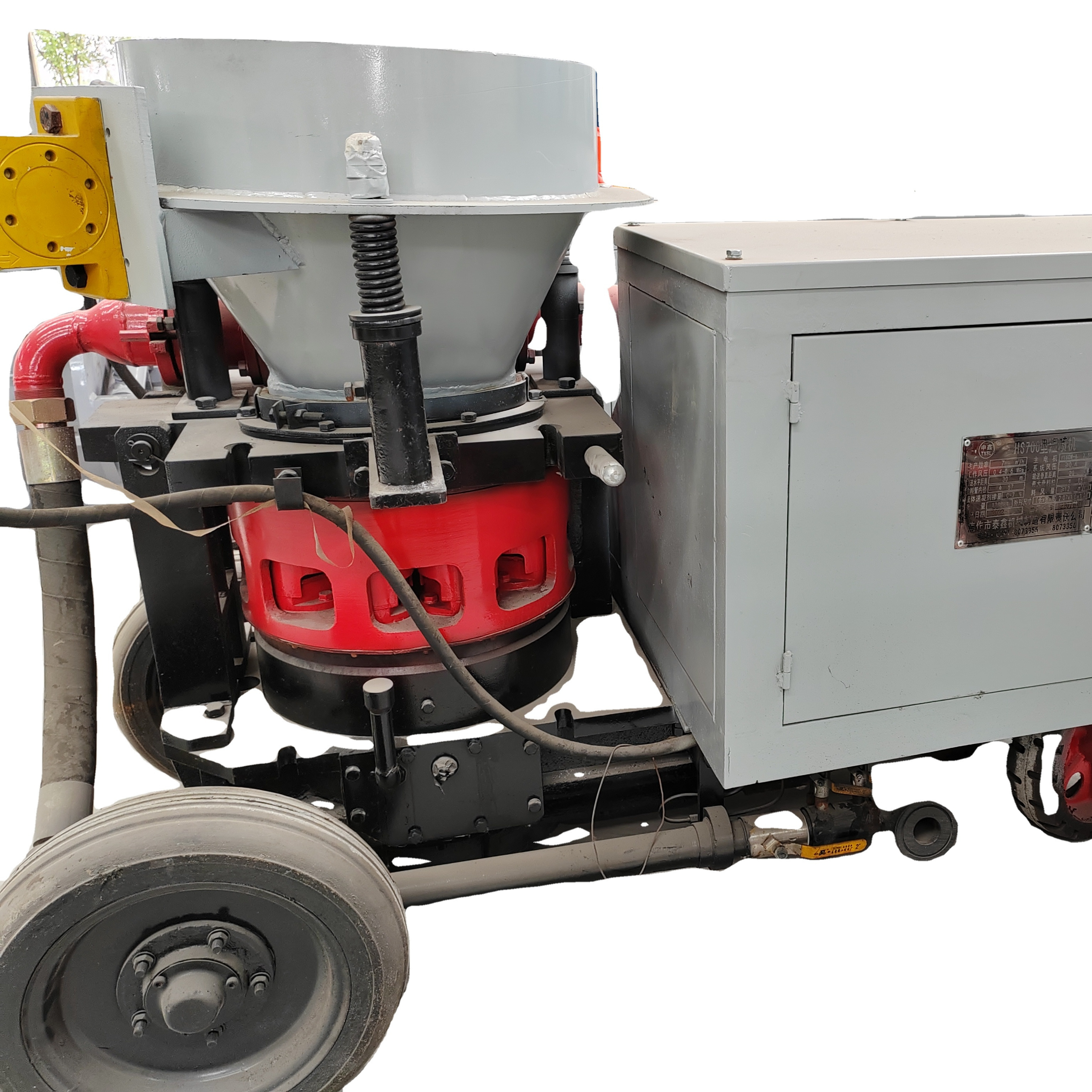

Type: HS700 Piston-Type Wet Shotcrete Machine
Voltage: 380v
Output Capacity:3-7m³ / h
Conveying Distance: 20m vertical, 40 horizontal
Maximum Grain Size: 20mm
Drive model: Electric/Diesel
HS700 wet mix shotcrete machine is a new generation of wet-mix concrete spraying machine developed by Weibang company and Germany
ISAI company. The wet shotcrete machine on the principle of rotor-piston cam feeding mechanism is at the world leading level.
Application:
It is dustless,suitable for using in tunnels,mine,bridge,highway,subway,culvert,engineering and hydropower projects.
Why to select HS700? High adaption to materials, no matter what ratio of water, sand and cement, HS700 will adapt to it easily. No
plugging, users will no longer to worry about plugging during spraying.
Main Feature:
1.Forced feeding by the piston completely avoiding material sticking in rotor material chambers, high adaptation to the
concrete(regardless of highly viscous concrete or fiber concrete).
2.Synchronously radial feeding of three material chambers leads to rarefied flow, flowing continuity, no plugging, small recoil
force of spray nozzle, low rebound, smooth spraying surface.
3. Liquid accelerator system allows accurate dosing and uniform mixing.
Type: HS700 Piston-Type Wet Shotcrete Machine
Voltage: 380v
Output Capacity:3-7m³ / h
Conveying Distance: 20m vertical, 40 horizontal
Maximum Grain Size: 20mm
Drive model: Electric/Diesel
HS700 wet mix shotcrete machine is a new generation of wet-mix concrete spraying machine developed by Weibang company and Germany
ISAI company. The wet shotcrete machine on the principle of rotor-piston cam feeding mechanism is at the world leading level.
Application:
It is dustless,suitable for using in tunnels,mine,bridge,highway,subway,culvert,engineering and hydropower projects.
Why to select HS700? High adaption to materials, no matter what ratio of water, sand and cement, HS700 will adapt to it easily. No
plugging, users will no longer to worry about plugging during spraying.
Main Feature:
1.Forced feeding by the piston completely avoiding material sticking in rotor material chambers, high adaptation to the
concrete(regardless of highly viscous concrete or fiber concrete).
2.Synchronously radial feeding of three material chambers leads to rarefied flow, flowing continuity, no plugging, small recoil
force of spray nozzle, low rebound, smooth spraying surface.
3. Liquid accelerator system allows accurate dosing and uniform mixing.
Parameters of
|
Model
|
HS-600
|
HS-700
|
||
|
Spraying Capacity
|
6m³/h
|
7m³/h
|
||
|
Max Grain Size
|
15mm
|
15mm
|
||
|
Group aggregate fineness modulus
|
≥2.5
|
≥2.5
|
||
|
Liquid accelerator dosage
|
0-7
|
0-7
|
||
|
Conveying hose diameter
|
57mm
|
57mm
|
||
|
Concrete slump
|
10-20cm
|
10-20cm
|
||
|
System wind pressure
|
≥0.5MPa
|
≥0.5MPa
|
||
|
Working wind pressure
|
0.4-0.6MPa
|
0.4-0.6MPa
|
||
|
Air consumption
|
≥12m³/min
|
≥12m³/min
|
||
|
Maximum conveying distance
|
Horizontal:30m Vertical:20m
|
Horizontal;30m Vertical:20m
|
||
|
Machine dust
|
＜10mg/m³
|
＜10mg/m³
|
||
|
Rebound（under standard process conditions）（%）
|
≤20
|
≤20
|
||
|
main motor power
|
7.5kW
|
7.5kW
|
||
|
Dimensions（L × W× H）
|
2070×1000×1200mm
|
2070×1000×1200mm
|
||
|
weight
|
1400kg
|
1400kg
|
||
|
Disclaimer: TXSL company reserves the right to change this specification without further notice.
|
|
|
||
