* Intelligent control system with large PLC screen.
* Button operation, simple and convenient.
* With Emergency Stop button, in case of emergency situation.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
2100*1030*2285 mm
-
Weight:
-
600 kg
-
Product name:
-
Industrial Grinding Dust Collector
-
Motor Power:
-
3KW*2
-
Working Voltage:
-
380V 50Hz
-
Air Volume:
-
4500-9000 m³/h
-
Maximum negative pressure:
-
2500 Pa
-
Compressed Air:
-
0.5~0.6Mpa
-
Filter material:
-
Flame retardant coated polyester fiber
-
Cleaning Mode:
-
Automatic rotor pulse back blow
-
Noise Level:
-
75 dBA
-
Certification:
-
CE ISO
Quick Details
-
Minimum Particle Size:
-
0.3um
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Moland
-
Dimension(L*W*H):
-
2100*1030*2285 mm
-
Weight:
-
600 kg
-
Product name:
-
Industrial Grinding Dust Collector
-
Motor Power:
-
3KW*2
-
Working Voltage:
-
380V 50Hz
-
Air Volume:
-
4500-9000 m³/h
-
Maximum negative pressure:
-
2500 Pa
-
Compressed Air:
-
0.5~0.6Mpa
-
Filter material:
-
Flame retardant coated polyester fiber
-
Cleaning Mode:
-
Automatic rotor pulse back blow
-
Noise Level:
-
75 dBA
-
Certification:
-
CE ISO
Specification
|
Model
|
MLWF900
|
|
Motor Power
|
3KW*2
|
|
Working Voltage
|
380V/50Hz
|
|
Air Volume
|
4500-9000 m^3/h
|
|
Maximum Negative Pressure
|
2500 Pa
|
|
Compressed Air
|
0.5-0.6 MPa
|
|
Filter Area
|
80 m^2
|
|
Filter Material
|
Flame retardant coated polyester fiber
|
|
Cleaning Mode
|
Automatic rotor pulse back blow
|
|
Filtering Accuracy
|
0.3um
|
|
Noise Level
|
75 dBA
|
|
Size
|
2100*1030*2285mm
|
|
Weight
|
600±20 kg
|
|
Logo
|
Moland or customized
|
|
Color
|
White or customized
|
Details Images
Cartridge Filter
*
Flame retardant film coated polyester fiber
* Brand: Japan
Toray
* Size: φ325*300 mm
* Qty:
16 pcs
* Filtration efficiency: >99.9%
* Filter Accuracy: 0.3μm
Electrical Control
As per the workpiece material you processed, we supply non-explosion-proof and explosion-proof type dust collector.
Explosion-proof device
can be equipped to protect your workers when necessary.
If you're not sure which type to choose, you can tell us your welding workpiece material, then we'll recommend you the suitable type.
* 2 pcs of large capacity dust collection drawer
* Regularly dump the dust out it.
* With handle for you to pull it out and push it in easily

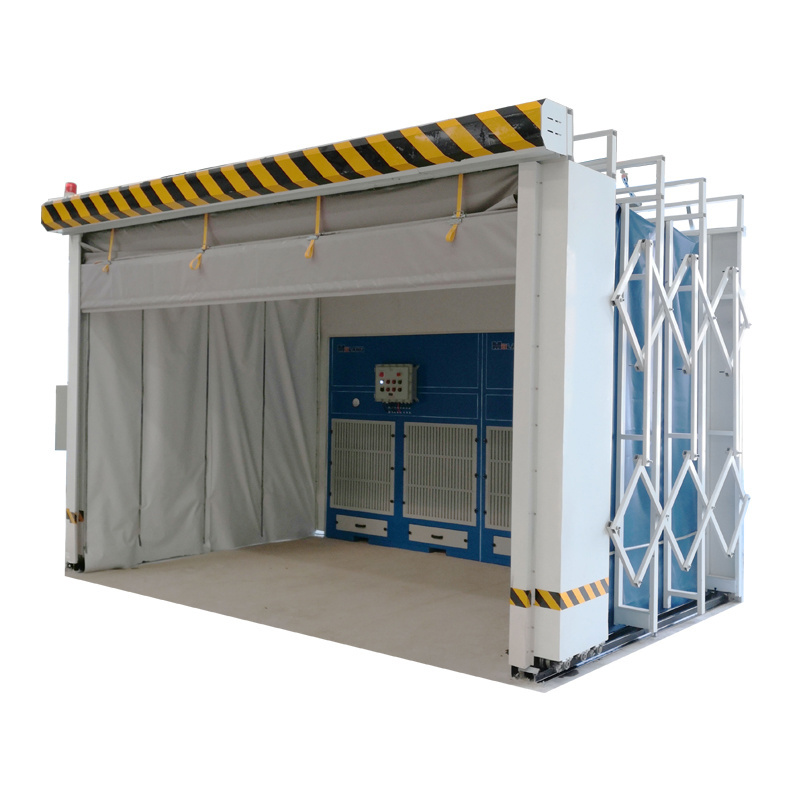

Telescopic Grinding Room
Fixed Grinding Room
Telescopic Grinding Room
Fixed Grinding Room
