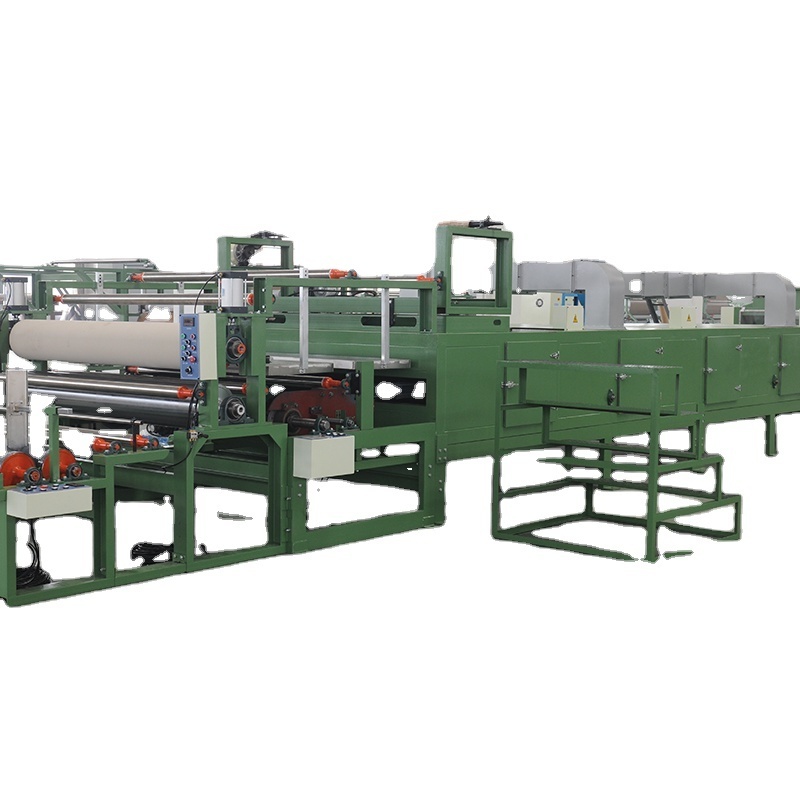

Automatic Powdered Machinery powder coating machine Double Powder Hot Melt Power Laminating Machine for Textile

Product Name

Automatic Powdered Machinery powder coating machine Double Powder Hot Melt Power Laminating Machine for Textile

Weight

1000kg

Oven Length

15m (Standard)

Power

60kw

Application

Mainly used for clothing industry fabric laminating especially suitable for thin fabric laminating.

Feature

Use the powder point transfer of technology, transfer of hot melt powder adhesive evenly to the lining, after backing, then with
the fabric heat laminating, the melt glue to the fabric into a certain depth, so that the two layers of fabric adhesive
together,the use of different hot melt powder, it can make the laminating material to obtain well handle feeling, washable, sand
washing,dry cleaning advantages, or have the aforementioned advantages at the same time.

Process flow

unwinding → powder sprinkling → heating and baking melting → composite → winding1. Adopt inlet temperature control system to
ensure constant drying temperature, temperature difference is less than ±2℃, to ensure stable door width of products;
2, the use of special heating system, heating fast, to ensure the hot melt effect is stable;
3, the use of energy-saving heat preservation oven, so that the temperature is not easy to lose;
4. Mixing and vibration system of powder sprinkling head ensures uniform powder sprinkling on material surface;
5, the transmission adopts frequency conversion synchronous control system, to ensure the speed and powder synchronization, so
that the powder quantity control uniform and stable.
6, mechanical width according to the material width to customize.
7, cooling mode: water cooling or air cooling can be used.
