Quick Details
-
Brand Name:
-
TOPSFLO
-
Model Number:
-
TL-B03
-
Place of Origin:
-
China
-
Horsepower:
-
dc power
-
Outlet Size:
-
9.4mm
-
Power:
-
2.4~5.3w
-
Usage:
-
Water
-
Liquid:
-
hot or cold water, beverage, etc
-
Temperature range:
-
0~100 Celsius degree,100 Celsius,90 Celsius,80 Celsius
-
Motor:
-
DC brushless motor,dc motor,12v dc motor,24v dc motor
-
pump feature:
-
continuous 24hours work,Blocked protection
-
pump lifetime:
-
long lifetime 20,000hours
-
Fuel:
-
DC power, Battery,
-
Certification:
-
RoHS ce Reach
Quick Details
-
Application:
-
Drinking water treatment, Food and Beverage Industry, Water Treatment Solutions
-
Pressure:
-
6.5L/min
-
Voltage:
-
12v 24v dc
-
Brand Name:
-
TOPSFLO
-
Model Number:
-
TL-B03
-
Place of Origin:
-
China
-
Horsepower:
-
dc power
-
Outlet Size:
-
9.4mm
-
Power:
-
2.4~5.3w
-
Usage:
-
Water
-
Liquid:
-
hot or cold water, beverage, etc
-
Temperature range:
-
0~100 Celsius degree,100 Celsius,90 Celsius,80 Celsius
-
Motor:
-
DC brushless motor,dc motor,12v dc motor,24v dc motor
-
pump feature:
-
continuous 24hours work,Blocked protection
-
pump lifetime:
-
long lifetime 20,000hours
-
Fuel:
-
DC power, Battery,
-
Certification:
-
RoHS ce Reach

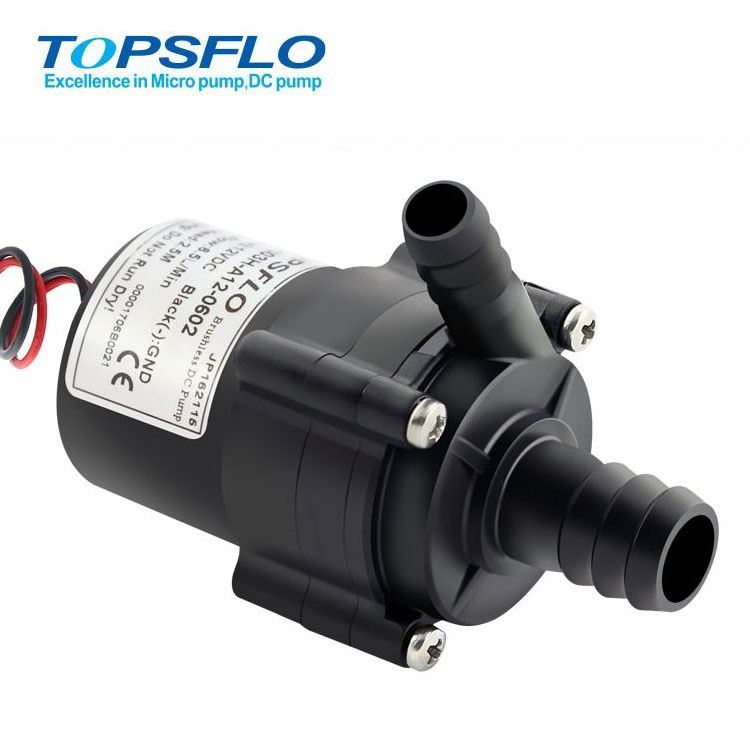

TOPSFLO Water DC Power Mini Water Pump Electric Dc water pump 12 volt
|
||
| HUGE PRODUCTION CAPACITY | R&D,OBM,ODM | SUPER QUALITY |
|
Self-built factory
16,000
square meter
;
workshop, automatic electronic production lines,annual production capacity of more than 3 million pcs. |
CNAS standard national laboratory,
experience R&D engineers,
|
More than 80% of our products are exported to America and Europe; CQC quality certification,REACH, RoHS,EU CE certifications. |
♦ 16000M2 modern factory with its own physical property rights, ESD anti-static control dust free workshop,
100+ sets of professional imported equipment
♦
4 major professional and precision laboratories that meet the
CNAS national laboratory
accreditation standards
♦
More than 50 patents
in the micro water pump industry, strong research and development strength, and master advanced industry technology
♦
Complete certification, passed
CE, ROHS, REACH, WRAS, Food Grade and other certification
Application:
Coffee maker/coffee machine, Water cooler/water dispenser, Beverage dispenser
Water purifier/water dispenser, Tea maker, Milk dispenser, Laboratory
Medical treatment, Fountain, aquariums, Computer CPU cooling circulation, Water heating mattress
Product Features:
•
.High efficiency brushless DC motor with
long lifetime 20,000hours
•
.Heavy duty work,
can sustain continuous 24hours work
•
.Special designed
high efficiency
closed-impeller for low power consumption
•
.Motor widely voltage designed suitable for battery,Power supplying with peak-low voltage damply
•
.All wetted materials
food grade approved
to be safety usage
•
.Durable permanent magnetic rotor/impeller and fine ceramic shaft
•
.
Low or no maintenance
•
.
Blocked protection
Product Specification:
| Model | Product Code | Max Water Flow (L/Min) | Rated Voltage(DC) | Rated Current (A) | Max Water Head(M) | Rated Power(W) |
| B03 | TL-B03-A12-0602 | 6.5 | 12 | 0.43 | 2.5 | 5.16 |
| TL-B03-A24-0602 | 6 | 24 | 0.22 | 2 | 5.28 | |
| TL-B03-A12-0501 | 4.8 | 12 | 0.2 | 1.2 | 2.4 | |
|
Customization: 1. /S Submersible, liquid ≤50°C 2. /FG (RPM) signal wire 3. /PWM or /5V speed control |
||||||
Product Characteristics:
| Max Flow Rate | 6.5L/MIN |
| Max Water Head | 2.5 M |
| Rated Voltage | 12V/24V |
| Working Voltage Range | 6V-18V /12V-28V |
| Motor Type | Brushless DC motor |
| Liquid Temperature | 0-105°C |
| Noise Class form 0.3M | 37dB /Max |
| Ideal Life Time | 20000 Hours |
| Working Mode | Continuous |
| OD of Inlet/Outlet | 14 mm/9.4mm |
| Max pressure / Continue work Pressure | 1.8Mpa / 0.5Mpa |
| Working liquid | Pure Water,antifreeze,etc |
| Power Supply | DC power supply, battery |
| Remarks | Can’t dry-running, not Self-priming |
Usage Note:
Dry-running is prohibited.
Reverse polarity is not allowed (except customized).
The pump if dropped or with heavy vibration do not use.
Liquid contain impurities or magnetic particles are not allowed.
Liquid temperature over 80°C is not allowed (except high temperature models).
Acidic or alkaline liquid is prohibited (except customized).
