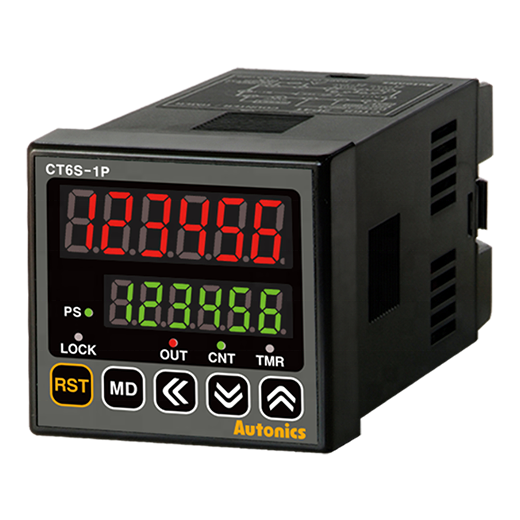

Original Autonics CT6S-1P4T Programmable Digital Counter with LED Display with MODBUS RS 485

FOB Reference Price: Get Latest Price

≥1 Pieces

US $49.2

≥20 Pieces

US $45.9

≥100 Pieces

US $41.8

Free Inquiry

Customized Request

Quick Details

Products Description

Display method	6-digit 7-segment LED
Operation method	Counter: Count up, Count down, Count up/down Timer: Count up, Count down
Terminal	Terminal block
Output Operation	SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
Power supply	100-240VAC~ 50/60Hz
Time operation	POWER ON START SIGNAL ON START
External Power Supply	Max. 12VDC ±10%, 100mA
Signal Input Method	Voltage input(PNP), No-voltage input(NPN)
Max. Counting Speed	1, 30, 1k, 5k, 10k [cps]
Min. signal Width	1ms/20ms
Memory Protection	Approx. 10 years
Setting range	0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
Control output_Type	1-stage preset
Control output_Relay	SPDT (1c): 1
Control output_NPN open collector	1
Communication output	RS485
Protection structure	IP65(front panel)
Approval	CE, UR
Counter_Counting range	-99999 to 999999
Counter_Scale	Decimal point up to fifth digit
Counter_Min. input signal width	RESET: Selectable 1ms/20ms
Timer_Min. input signal width	INA, INH, RESET: Selectable 1ms/20ms
Environment_Ambient temperature	-10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Weight	Approx. 212g (approx. 159g)

Main Features

Integrated counter/timer unit for counting and timing applications RS485 (Modbus RTU) communication (communication models)
One-shot output time : 0.01s to 99.99s

Counter Functions

Various input/output modes (9 input modes, 11 output modes)
Prescale value range
- - 6-digit models : 0.00001 to 99999.9
- - 4-digit models : 0.001 to 999.9
Batch counting function, set count starting point (value) function
