Quick Details
-
Mold Height(mm):
-
200 - 510 mm
-
Ejector Stroke(mm):
-
155 mm
-
Ejector Force(kN):
-
2300 kN
-
Theoretical Shot Volume(cm³):
-
658 cm³
-
Injection Rate (g/s):
-
160 g/s
-
Injection Weight (g):
-
546 g
-
Screw Speed (rpm):
-
0 - 180 rpm
-
Screw diameter (mm):
-
50 mm
-
Screw L/D Ratio:
-
22.8
-
Distance between Tie Bars:
-
510*510mm
-
Weight (KG):
-
5000 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
480 mm
-
Model Number:
-
HL
-
Brand Name:
-
HUILI
-
Power (kW):
-
32 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Plastic Injection Moulding Machine
-
Screw Diameter:
-
32mm-180mm
-
Machine weight:
-
different
-
Color:
-
Customers' Request
-
Injection pressure:
-
150Mpa--250Mpa
-
electrical equipment:
-
World famous brand
-
Material application:
-
PP PE PS ABS etc
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
510mm
-
Distance between Tie Bars(Height)(mm):
-
510mm
-
Plasticizing Capacity(g/s):
-
160
-
Mold Height(mm):
-
200 - 510 mm
-
Ejector Stroke(mm):
-
155 mm
-
Ejector Force(kN):
-
2300 kN
-
Theoretical Shot Volume(cm³):
-
658 cm³
-
Injection Rate (g/s):
-
160 g/s
-
Injection Weight (g):
-
546 g
-
Screw Speed (rpm):
-
0 - 180 rpm
-
Screw diameter (mm):
-
50 mm
-
Screw L/D Ratio:
-
22.8
-
Distance between Tie Bars:
-
510*510mm
-
Weight (KG):
-
5000 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
480 mm
-
Model Number:
-
HL
-
Brand Name:
-
HUILI
-
Power (kW):
-
32 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Plastic Injection Moulding Machine
-
Screw Diameter:
-
32mm-180mm
-
Machine weight:
-
different
-
Color:
-
Customers' Request
-
Injection pressure:
-
150Mpa--250Mpa
-
electrical equipment:
-
World famous brand
-
Material application:
-
PP PE PS ABS etc

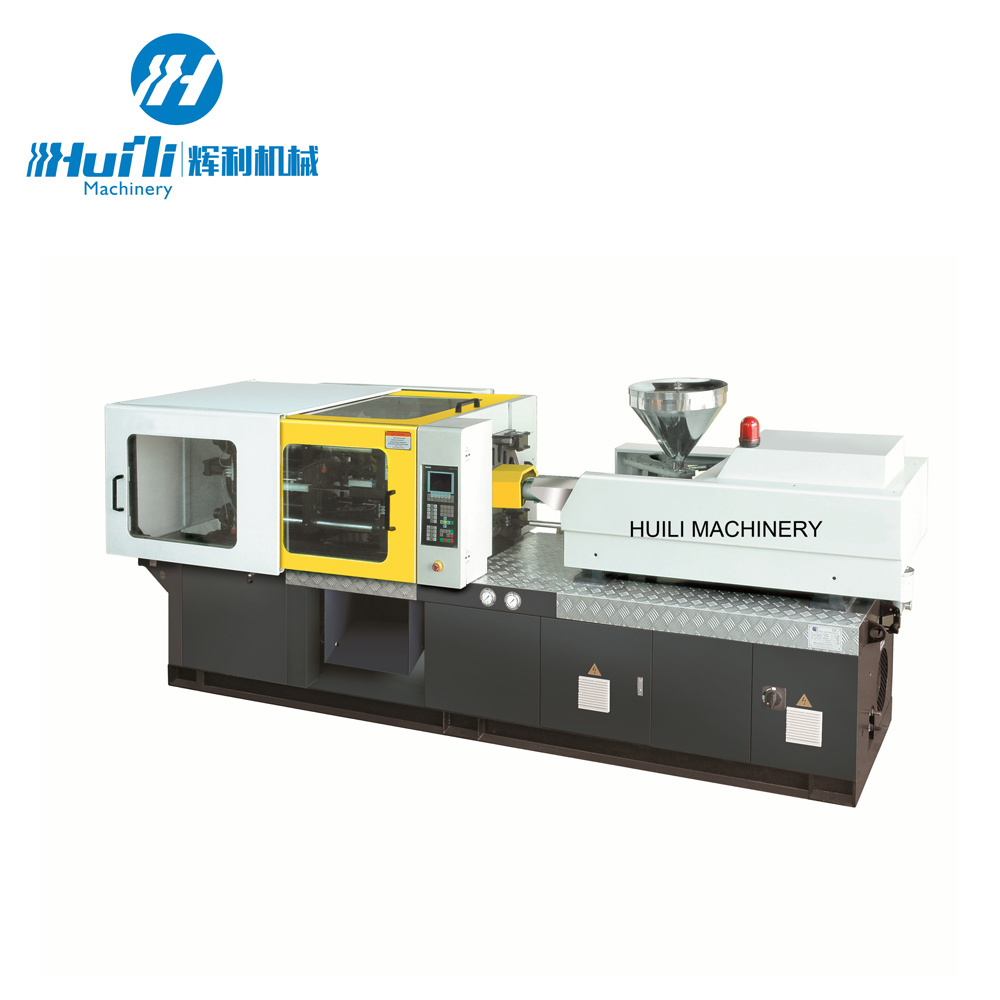

plastic injection molding machine
Advantage : Strong Technical design ability, Stable quality, and large production capability, Famous brand.
Specifications
1.plastic products making machine
2.European technology and world-famous spare parts
3.Easy to operate and maintain
|
We specialized in plastic industry for more than ten years.We manufacture for plastic injection molding machine, moulds.Our plastic injection molding machine with clamping force ranges from 100ton-2200ton.Our machine works as high precision and rigidity. It has excellent performance, fast response and energy efficiency.We would like to share many kinds of plastic products manufacturing technology with our customers.We never compromised on the quality and have an excellent track records for the customer satisfaction.
1. Clamp tonnage : 132 ton (see below)
2. Clamp tonnage : 165 ton (see below)
3. Clamp tonnage : 205 ton (see below)
4.Clamp tonnage : 230 ton (see below)
5.Clamp tonnage : 260 ton (see below)
6.Clamp tonnage : 750 ton (see below)
Final Product Photo
PET bottle blow moulding machine(semi-auto and full auto machine) , to blow PET bottles from PET preform .
