Quick Details
-
Warranty:
-
2 years
-
Brand Name:
-
Sunfield
-
Model Number:
-
SFED-P1.2M
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
120*65*2mm
-
Cell Type:
-
Sunpower mono cells
-
Pm:
-
1.2W
-
Vmp/Voc:
-
5.5V/6.6V
-
Imp/Isc:
-
2200mA/240mA
-
Cell efficiency (%):
-
24
-
Number of cells (Pcs):
-
10
-
Front side:
-
PET/ETFE
-
Cables and length, Connector:
-
Customized
-
Temperature Range:
-
-40---+85℃
-
Test Conditions:
-
AM1.5, 1000W/ M2, 25 degrees centigrade
Quick Details
-
Cell size:
-
125mmx125mm
-
Type:
-
All Black, IBC, Mini PET/ETFE, SMT
-
Panel Efficiency:
-
20%
-
Warranty:
-
2 years
-
Brand Name:
-
Sunfield
-
Model Number:
-
SFED-P1.2M
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
120*65*2mm
-
Cell Type:
-
Sunpower mono cells
-
Pm:
-
1.2W
-
Vmp/Voc:
-
5.5V/6.6V
-
Imp/Isc:
-
2200mA/240mA
-
Cell efficiency (%):
-
24
-
Number of cells (Pcs):
-
10
-
Front side:
-
PET/ETFE
-
Cables and length, Connector:
-
Customized
-
Temperature Range:
-
-40---+85℃
-
Test Conditions:
-
AM1.5, 1000W/ M2, 25 degrees centigrade

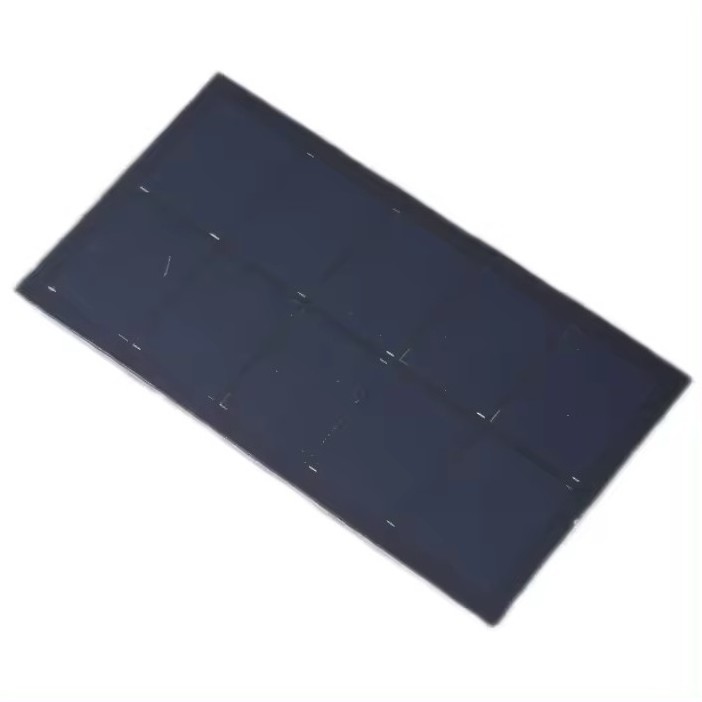

Product Description
Specification
|
MONO/POLY
|
Sunpower mono cells
|
|
Item No.
|
SFED-P1.2M
|
|
Maximum power (Wp)
|
1.2
|
|
Maximum power voltage (V)
|
5.5
|
|
Maximum power current (A)
|
0.22
|
|
Open circuit voltage (V)
|
6.6
|
|
Short circuit current (A)
|
0.24
|
|
Cell efficiency (%)
|
24%
|
|
Number of cells (Pcs)
|
10
|
|
Size of module (mm)
|
120*65*2mm
|
|
Front side
|
PET/ETFE
|
|
Back side
|
PCB board
|
|
Cables and length
|
Customized
|
|
Connector
|
Optional
|
|
Temperature Range
|
-40---+85℃
|
|
Test Conditions
|
AM1.5, 1000W/M², 25ºC
|
|
Power guarantee
|
2 years
|
Product Details
Product Features
1) PET or ETFE + PCB lamination
2) Waterproof, Compressive Strength and Scratch- Resistant
3) Stable & Reliable Performance and High Output
4) Anti-deformation and UV resistant
5) Long Lifespan and Light Weight, low transportation Cost
6)
Suitable for both lithium battery and Ni-MH battery connectivity
7) A good match for mobile phone, mobile phone chargers, small power consumption electronics
8) Wiring service available, OEM & ODM available
Product Applications
Applications
Mini Solar Panels are ideal for solar backpacks, solar charging umbralla, solar water pump, solar street light or LED light, solar toys, ect.
