Quick Details
-
Model Number:
-
LP-2018
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lampow
-
Output:
-
12V 24V DC
-
Operating voltage:
-
12v/24v
-
Max load:
-
60w
-
Rated current:
-
5A
-
Detecting angle:
-
120°
-
Warranty:
-
3 years
-
Delay time:
-
35s
-
Materials:
-
Housing/Base:ABS,Chromium plating;Lens/Power cable:PVC
-
Color:
-
Black/White/Silver
-
Certificate:
-
CE RoHS
Quick Details
-
Use:
-
lighting control when detects human motion
-
Mounting Type:
-
Surface/embedded mounted
-
Description:
-
Motion Sensor
-
Model Number:
-
LP-2018
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lampow
-
Output:
-
12V 24V DC
-
Operating voltage:
-
12v/24v
-
Max load:
-
60w
-
Rated current:
-
5A
-
Detecting angle:
-
120°
-
Warranty:
-
3 years
-
Delay time:
-
35s
-
Materials:
-
Housing/Base:ABS,Chromium plating;Lens/Power cable:PVC
-
Color:
-
Black/White/Silver
-
Certificate:
-
CE RoHS
Product Description

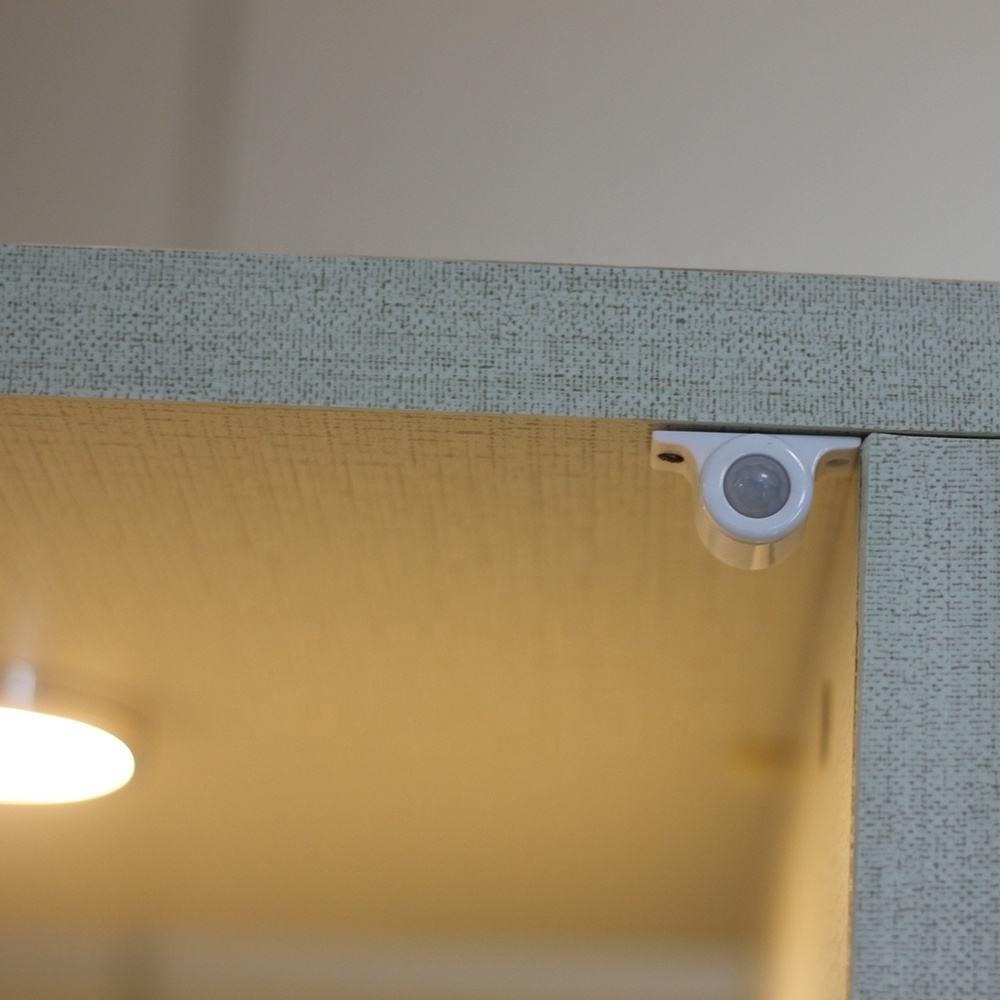

LP-2018 is a DC low voltage 12V/24V infrared detector with an infrared pyroelectric sensor that provides human motion detection and is used for automatic lighting control. When the power is switched on, the detector starts to work normally after about 10 seconds of warm-up; when a signal is detected, the detector outputs a high level and holds it, after the "delay time reaches the set time", it outputs a low level. LP-2018 has the advantages of high stability and small size and is ideal for local lighting applications such as wardrobes and cabinets.
| Item | Parameters |
| Product name | PIR Sensor Switch |
| Model | LP-2018 |
| Operating voltage | 12v/24v |
| Max load | 60w |
| Rated current | 5A |
| Detecting range | 3.5M |
| Detecting angle | 120° |
| PCB size | 30*16*6mm |
| Sensor size | Embedded mounted:16(outer diameter)*13(depth)mm,drilling size:14mm;Surface mounted:30mm*13mm*16mm |
| Drilling size | 14mm |
| Materials | Housing/Base:ABS,Chromium plating;Lens/Power cable:PVC |
| Input cable length | 150cm |
| Output cable length | 15cm |
