Quick Details
-
Model Number:
-
PM424
-
Material:
-
304SS and SS316L
-
Pressure range:
-
-0.1MPa...0kPa~10kPa...100MPa
-
working temperature:
-
-60℃~+200℃
-
Output signal:
-
4~20mA (1~5V) 2-wire, 0~10mA (0~5V) 3-wire
-
Process connection:
-
M20*1.5, G1/4 male, NPT1/8 male or customized
-
Power supply:
-
12 ~ 30V (Default 24V)
-
Stability:
-
≤ 0.1% FS/year, ≤ 0.01%FS/℃
-
Electrical connection:
-
Direct cable, 4PIN/5PIN connector
-
Overload pressure:
-
150%FS
-
Measuring medium:
-
High temperature gases, liquids, corrosive and non-corrosive media
-

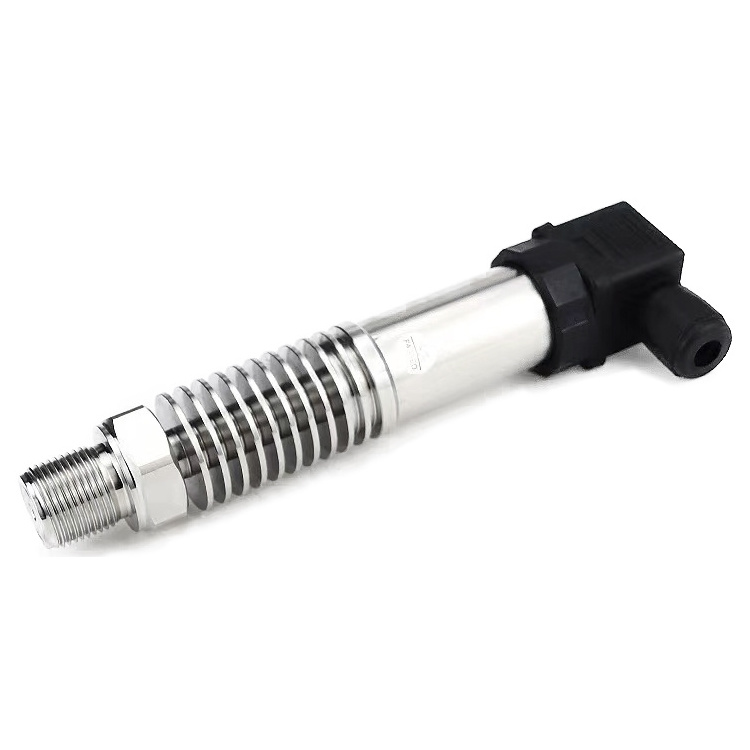

Product Name:
-
high pressure transmitter
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Model Number:
-
PM424
-
Material:
-
304SS and SS316L
-
Pressure range:
-
-0.1MPa...0kPa~10kPa...100MPa
-
working temperature:
-
-60℃~+200℃
-
Output signal:
-
4~20mA (1~5V) 2-wire, 0~10mA (0~5V) 3-wire
-
Process connection:
-
M20*1.5, G1/4 male, NPT1/8 male or customized
-
Power supply:
-
12 ~ 30V (Default 24V)
-
Stability:
-
≤ 0.1% FS/year, ≤ 0.01%FS/℃
-
Electrical connection:
-
Direct cable, 4PIN/5PIN connector
-
Overload pressure:
-
150%FS
-
Measuring medium:
-
High temperature gases, liquids, corrosive and non-corrosive media
-
Product Name:
-
high pressure transmitter
Titanium alloy diaphragm, strong corrosion resistance
Wide temperature zone, high precision
Flameproof, IP68 protection
Can be applied to harsh environments such as pollution, humidity, flflammable and explosive
Wide temperature zone, high precision
Flameproof, IP68 protection
Can be applied to harsh environments such as pollution, humidity, flflammable and explosive
|
Range
|
-0.1MPa...0kPa~10kPa...100MPa
|
|
|
||
|
Overload capability
|
Below 10MPa ≤ 2 times full scale
10MPa and above ≤1.5 times full scale |
|
|
||
|
Pressure Type
|
G (gauge pressure), A (absolute pressure), S (sealed gauge pressure)
|
|
|
||
|
Accuracy
|
0.1% (custom), 0.25% (typical), 0.5% (maximum)
|
|
|
||
|
Long-term stability
|
±0.1%FS/year (typical), ±0.2%FS/year (maximum)
|
|
|
||
|
Zero temperature drift
|
±0.015%FS/°C, ±0.02%FS/°C
|
|
|
||
|
Sensitivity temperature drift
|
±0.015%FS/°C, ±0.02%FS/°C
|
|
|
||
|
Compensation temperature
|
-10°C~70°C, -20°C~80°C
|
|
|
||
|
Medium temperature
|
-60°C~200°C, -30°C~65°C (Input type)
|
|
|
||
|
Power supply
|
12 ~ 30V (Default 24V)
|
|
|
||
|
Output signal
|
4mA~20mA (superimposable HART protocol)
0V~10V (output range can be customized) RS485 |
|
|
||
|
Load Resistance
|
Current type: ≤ (U-12) / 0.02 (Ω)
|
|
|
||
|
Protection level
|
IP65 (customizable IP67/IP68)
|
|
|
||
Packing&Shipping
Q:What kind of products do you offer ?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
Manufacturer Price Wholesale 4-20ma 0-50bar High Temp Pressure Transducer
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
Manufacturer Price Wholesale 4-20ma 0-50bar High Temp Pressure Transducer
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
Manufacturer Price Wholesale 4-20ma 0-50bar High Temp Pressure Transducer
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
Manufacturer Price Wholesale 4-20ma 0-50bar High Temp Pressure Transducer
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
Manufacturer Price Wholesale 4-20ma 0-50bar High Temp Pressure Transducer
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
Manufacturer Price Wholesale 4-20ma 0-50bar High Temp Pressure Transducer
Q. How can l get the quotation or send my inquiry to?
A. Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
1. What is the Measuring medium? Water, oil or others.
2. How about Measuring range: 0-5m or..?
3.What would be the processing pressure and temperature？
4. Which signal output:4-20mA, RS485 or..?
5. Require quantity?
As the specifications affect the price difference, page price for reference only. The final price is subject to our final confirmation.
