* 2D and 2D graphical touch screen programming mode
* 3D visualisation in simulation and production
* 9" high resolution colour TFT
* Full Windows application suite
* Delem Modusys compatibility (module scalability and adaptivity)
* USB, peripheral interfacing
* User specific application support within the controllers multitasking environment
* Sensor bending & correction interface
- Product Details
- {{item.text}}
Quick Details
-
Throat Depth (mm):
-
320 mm
-
Width of Working Table (mm):
-
180 mm
-
Dimension:
-
3700*1750*2420
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Chzone
-
Year:
-
2024
-
Weight (KG):
-
6600
-
Motor Power (kw):
-
7.5 kw
-
Marketing Type:
-
Hot Product 2024
-
Type:
-
press brake
-
Control system:
-
DA53T
-
Certification:
-
ce
Quick Details
-
Machine Type:
-
Synchronized
-
Length of Working Table (mm):
-
3200 mm
-
Slider Stroke (mm):
-
120 mm
-
Throat Depth (mm):
-
320 mm
-
Width of Working Table (mm):
-
180 mm
-
Dimension:
-
3700*1750*2420
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Chzone
-
Year:
-
2024
-
Weight (KG):
-
6600
-
Motor Power (kw):
-
7.5 kw
-
Marketing Type:
-
Hot Product 2024
-
Type:
-
press brake
-
Control system:
-
DA53T
-
Certification:
-
ce

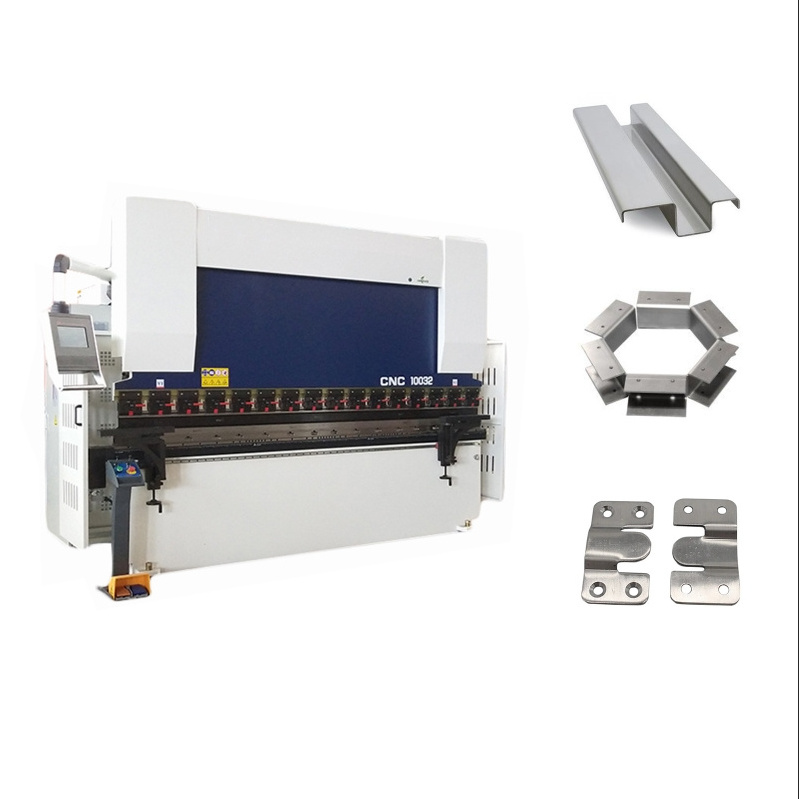

PB-CNC DA53T 3+1 Axis CNC Press Brake
Product Description
Main features:
* 3+1 Axis,Y1 Y2 X+Crowing
* Fast Released Tool Clamp
* Synchronized cylinders for Y1 & Y2 axis.
* 3+1 Axis,Y1 Y2 X+Crowing
* Fast Released Tool Clamp
* Synchronized cylinders for Y1 & Y2 axis.
* Schneider Electrics, Yaskawa Servo Motor and Driver
* Imported ball bearing lead screw and linear guide rail
* Imported ball bearing lead screw and linear guide rail
|
Controller
|
DELEM DA53T
|
|
Motor
|
Siemens
|
|
Valve
|
BOSCH Rexroth
|
|
Electrics
|
Schneider
|
|
Pump
|
Sunny
|
|
Servo
|
Yaskawa
|
Controller
DELEM DA53T
Main Parameters
|
MB8
|
6325
|
10032
|
10040
|
16032
|
16040
|
20032
|
20040
|
25032
|
25040
|
|
Nominal Pressure
|
800
|
1000
|
1000
|
1600
|
1600
|
2000
|
2000
|
2500
|
2500
|
|
Workbench Length
|
2500
|
3200
|
4000
|
3200
|
4000
|
3200
|
4000
|
3200
|
4000
|
|
Workbench Width
|
110
|
110
|
110
|
110
|
110
|
110
|
110
|
110
|
110
|
|
Poles distance
|
1960
|
2600
|
3200
|
2600
|
3200
|
2600
|
3200
|
2600
|
3200
|
|
Throat depth
|
320
|
380
|
380
|
400
|
400
|
400
|
400
|
400
|
400
|
|
Slipper Stroke
|
200
|
200
|
200
|
200
|
200
|
200
|
200
|
200
|
200
|
|
Max Opening Height
|
480
|
480
|
480
|
480
|
480
|
480
|
480
|
480
|
480
|
|
slipper stroke adjust Length
|
150
|
150
|
150
|
150
|
150
|
150
|
150
|
150
|
150
|
|
Main motor
|
5.5
|
7.5
|
7.5
|
11
|
11
|
15
|
15
|
18.5
|
18.5
|
|
Oil pump
|
13
|
16
|
16
|
20
|
20
|
25
|
32
|
32
|
32
|
|
Hydraulic System Max Work Pressure
|
30
|
30
|
30
|
30
|
30
|
30
|
30
|
30
|
30
|
|
wallboard thickNess
|
35
|
45
|
45
|
50
|
50
|
50
|
60
|
70
|
70
|
|
slipper thickNess
|
40
|
50
|
50
|
60
|
60
|
60
|
60
|
70
|
70
|
|
support plate thickNess
|
40
|
60
|
60
|
70
|
70
|
70
|
70
|
80
|
80
|
|
Dimension(L×W×H)
|
2800×1700×2550
|
3800×1750×2580
|
2600×1500×2200
|
3800×1800×2900
|
2800×1900×2820
|
3800×1900×2920
|
4500×2100×2920
|
3800×2150×3020
|
4500×2150×3050
|
|
Machine weight
|
4.8
|
7.6
|
9
|
9
|
11
|
12
|
13.5
|
14
|
15
|
Detailed Images
DA69T Controller
Top quality and grade in the world
Wila Top Tooling Holder
Automatic clamp and release.
Front Supportor
Two Movable one
Schneider Electrics
World famous bran, Stable quality. easy to get replace parts
Yaskawa Servo
Japanese Brand, High quality.
Taifeng Cylinder
Most Famous brand in China. Life-long time aftersale maintance.
Rexroth Valve
Germany BOSCH Valve. Simple Structure,Easy to repaire
Sunny Oil Pump
American most famous pump brand.
High quality
Siemens Motor
Original Germany Siemens imported motor
Air Cooling Device
Cooling device for hydraulic oil. Keep the oil temperature low
Kacon Foot Switch
South Koera CE Standard Foot Switch
GIVI Linear Encoder
High accuracy,stable quality.
Side Fence
CE Safety Standard. Power off when open
Back Fence
Movable Door. Power off when open the door
Hiwin Linear Guider and ball screw
Taiwan Brand. High Accuracy
Backgauge
Controlled by servo motor. X,R axis
Stop Fingers
Standard equipped with 4 fingers.
Standard AMADA type Toolings
*42CrMo material ,HRC>55
*Standard Segmented in to 835mm length each
*one piece segmented for small part
*Left and Right side with L shape cut
*Other types tooling for optional
Related Products
Optional Parts
Laser Protection Device
For CE Standard use. Keep safety of finger
Servo Main Motor
Fast Speed. No Noise when machine works. Need less hydraulic oil.
Two Hands Start Foot Switch
For CE Standard, keep safety.
Packing&Shipping
Machine usually send by sea. Is suitable for 20GP/40GP/40HQ/40OT container.
Some small machine can use Plywood case packing.
After loading machine will use carbon steel fix it.
