Mechanism/polyurethane insulation board/special for purifying fire and heat insulation/frozen fresh

Mechanism/polyurethane insulation board/special for purifying fire and heat insulation/frozen fresh

FOB Reference Price: Get Latest Price

≥300 Square meters

US $8.6

≥1000 Square meters

US $7.6

≥10000 Square meters

US $5.6

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: BRD&ARTECO

Flame Retardant Rating:: B1

Thickness Of Steel Plate:: 0.3/0.35/0.4/0.5(mm)

Thickness Of Wood Plates:: 50/75/100/120/150/200(mm)

Plate Width:: 1130mm

Density:: 40-45KG/m³

Thermal Conductivity:: ≤0.024W/M.K

Water Absorption:: ≤3%

Percentage Of Close Area:: ≥95%

Dimensional Stability:: ≤±1%

Elongation At Break:: ≥1%

Quick Details

Project Solution Capability:: graphic design, 3D model design, total solution for projects

Application:: Cold storage, warehouse, workshop

Design Style:: Modern

Place of Origin:: Guangdong, China

Brand Name:: BRD&ARTECO

Flame Retardant Rating:: B1

Thickness Of Steel Plate:: 0.3/0.35/0.4/0.5(mm)

Thickness Of Wood Plates:: 50/75/100/120/150/200(mm)

Plate Width:: 1130mm

Density:: 40-45KG/m³

Thermal Conductivity:: ≤0.024W/M.K

Water Absorption:: ≤3%

Percentage Of Close Area:: ≥95%

Dimensional Stability:: ≤±1%

Elongation At Break:: ≥1%

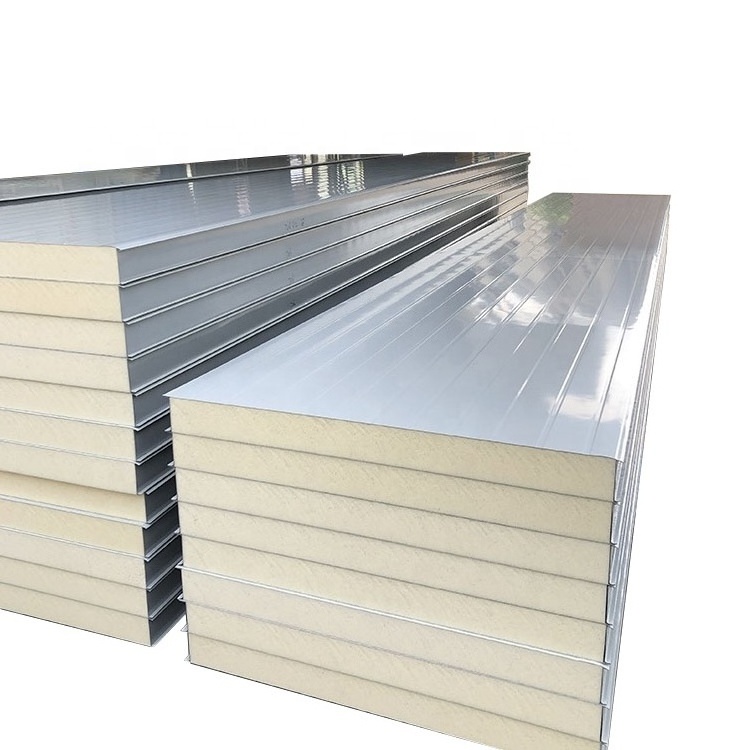

Cold Room Panel

BRD&ARTECO Cold Room Panel

The cold storage panels consist of an inner metal plate, an outer metal plate, and an intermediate polyurethane insulation layer. BRD brand polyurethane insulated panel for cold storage can be produced with a thickness of 20mm-300mm.

The appearance of the board is of pressed in compression bar or clear surface. The thickness of the color coated steel plate is 0.4 mm-0.8 mm. The effective width of the cold storage board is 1 m. The insulation core material is polyurethane (PU). The fire rating is B1 and B2. It has light self weight, a simple structure and a beautiful appearance.

It can effectively solve the temperature difference in the cold storage industry. Polyurethane foam insulation panel is the ideal insulation material for cold store/room/warehouse.

Advantages 1. Good imported raw material: USA Huntsman. 2. Heat-insulation, good sound insulation, fireproof. 3. Competitive price/Easy -installation/Light in weight. 4. Good durability, waterproof, fireproof, recycled using. 5. Evenly foamed polyurethane: totally automatic production line. 6. Rather low air permeability: black seal strip gives an extra enhancement. 7. Strong adhesion: separation will never happen on steel sheets and polyurethane foam.

Specifications for Polyurethane Sandwich Panel
Thermal Conductivity	<0.023
Metal sheet thickness	0.4~0.8mm
Temperature range	-55 ~ 160℃
Density	35-45kg/m3
Delivery date	within 15-20 day
Fireproof Grade	B1/B2 Grade/available
Application	Cold room and other building
Surface material	Stainless steel /color steel /available
Effective width	50mm/1000mm/1130mm/customized
Thickness	50mm/75mm/100mm/125mm/150mm/200mm/customized
Color	PERMAGARD® WHITE / SHALE GREY® / PAPERBARK® SURFMIST® / CLASSIC CREAM®

Cam Lock Cold Room Panel

cold room panel with cam lock as core material, and zinc-plated & color-coated steel sheets& stainless steel sheet & aluminum
sheet as the upper and bottom sheets. The panels are formed by heating and pressing with high-intensity glue , we produce the
panels one by one , it can make the panels much more strong and good quality.

Panels Connect Method:Dry-Joint System with Cam Lock.between two planels are male and female.the floor panels are reinforced and
they withstand distributed load up to 2000Kg/SQ meters.also the cold room should be installed in a sheltered place away from
direct sunshine.dust and rain.

Specifications for Cam Lock Cold Room Panel
Thickness	20-300mm,customized
Width	Standard width is 960mm or customized
Length	1~11.8m
Density	38-42kg/m³
Surface material	304 stainless steel, painted color steel and embossed aluminum sheet(0.3mm-1.0mm)
Connection	Connected by cam locks
Fireproof Rate	B1/B2 Grade/available
Certification	ISO9001:2015,BV and SGS.
