Quick Details
-
Marketing Type:
-
Hot Product 2021
-
Reverse Speed(km/h):
-
24.4
-
Place of Origin:
-
China
-
Brand Name:
-
TDER
-
Weight:
-
13800 kg
-
Dimension(L*W*H):
-
8270*2495*3390 mm
-
Color:
-
Customer's Demands
-
Drive Type:
-
Hydraulic Drive
-
Engine type:
-
Diesel
-
Application:
-
Compact Surface
-
Overall Length:
-
8270 mm
-
Operating weight:
-
13800 kg
-
Rated Power:
-
100kw
-
Model:
-
TG135
-
Engine model:
-
QSB5.9
-
Overall weight:
-
13800KG
Quick Details
-
Forward Speed(km/h):
-
38.3
-
Engine Brand:
-
CHANGFA/CHANGCHAI
-
Working diameter:
-
3048 mm
-
Marketing Type:
-
Hot Product 2021
-
Reverse Speed(km/h):
-
24.4
-
Place of Origin:
-
China
-
Brand Name:
-
TDER
-
Weight:
-
13800 kg
-
Dimension(L*W*H):
-
8270*2495*3390 mm
-
Color:
-
Customer's Demands
-
Drive Type:
-
Hydraulic Drive
-
Engine type:
-
Diesel
-
Application:
-
Compact Surface
-
Overall Length:
-
8270 mm
-
Operating weight:
-
13800 kg
-
Rated Power:
-
100kw
-
Model:
-
TG135
-
Engine model:
-
QSB5.9
-
Overall weight:
-
13800KG
Product Paramenters
|
MODEL
|
|
TG100
|
TG165
|
TG175
|
TG180
|
TG190
|
TG220
|
|
Operating mass
|
kg
|
10000
|
13800
|
15000
|
16000
|
16000
|
16900
|
|
Front axle load
|
kg
|
/
|
4000
|
4150
|
5150
|
5150
|
5820
|
|
Rear axle load
|
kg
|
/
|
9800
|
10850
|
10850
|
10850
|
11080
|
|
Max.forward speed
|
km/h
|
38
|
38.3
|
40.4
|
36/38.2
|
36/38.2
|
36.8
|
|
Max.backward speed
|
km/h
|
24
|
24.4
|
25.7
|
25/24.5
|
25/24.5
|
24.8
|
|
Speed gear number
|
|
F6/R3
|
F6/R3
|
F6/R3
|
F6/R3
|
F6/R3
|
F6/R3
|
|
Turning radius
|
mm
|
6000
|
7500
|
7500
|
7800
|
7800
|
7800
|
|
Hydraulic system pressure
|
Mpa
|
18
|
18
|
18
|
18
|
18
|
18
|
|
Blade length x height
|
mm
|
3048*450
|
3660x610
|
3660x610
|
3965x610
|
3965x610
|
3965x610
|
|
Front wheeltrack
|
mm
|
1900
|
2150
|
2150
|
2150
|
2150
|
2150
|
|
Rear wheeltrack
|
mm
|
1900
|
2165
|
2255
|
2255
|
2255
|
2255
|
|
Wheelbase
|
mm
|
5135
|
5347
|
5347
|
5647
|
5647
|
5647
|
|
Engine model
|
|
WP4.1
|
QSB5.9
|
QSB5.9
|
QSB5.9
|
WP6G190E330
|
QSC8.3
|
|
Engine power
|
kW
|
75
|
97
|
125
|
132
|
140
|
158
|
|
Overall dimensions
|
mm
|
7130*2375*3150
|
8270x2495x3390
|
8605x2695x3420
|
8605x2695x3420
|
8605x2695x3420
|
8605x2695x3420
|

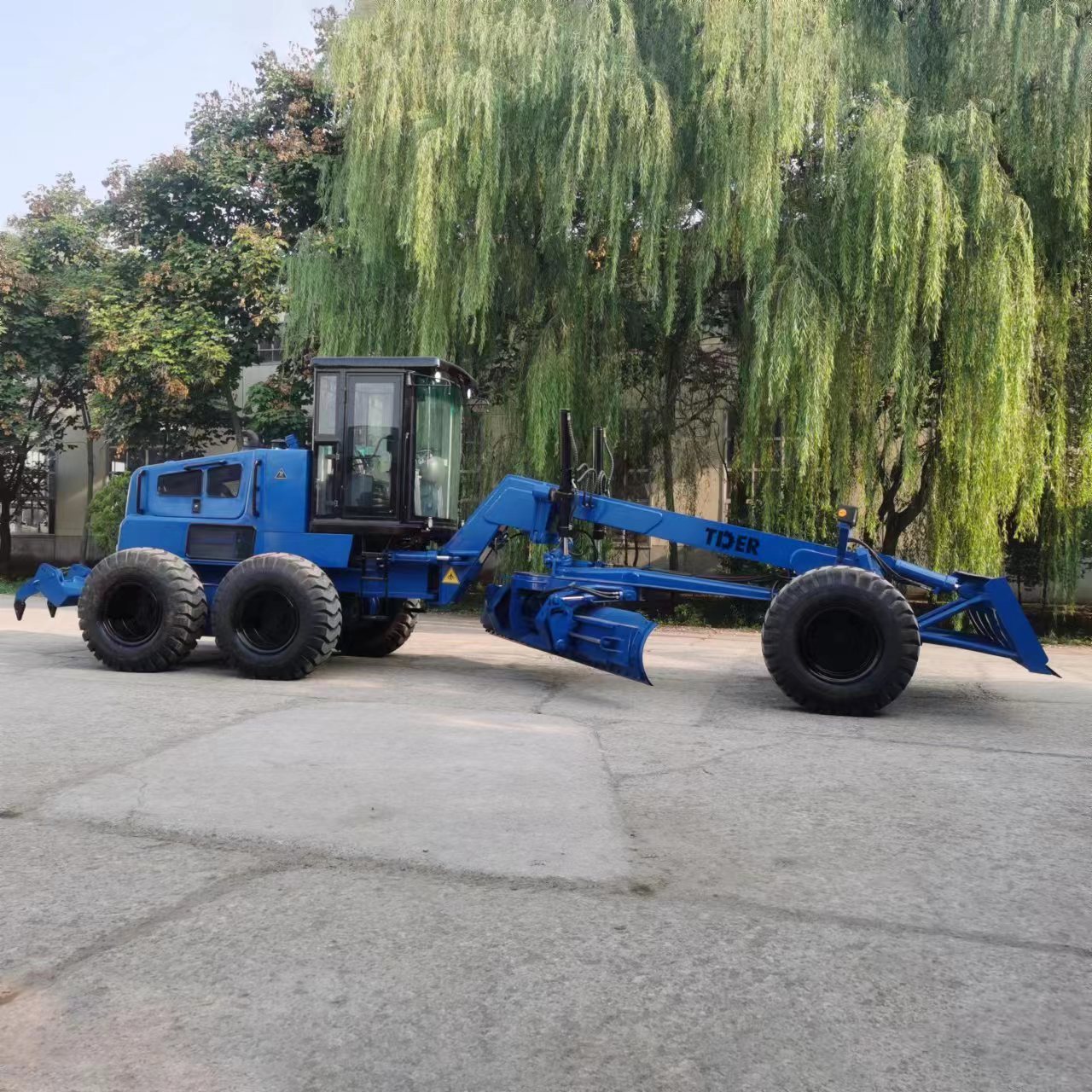

2023 TDER new Grader machine TG180 TG220 180HP 220HP motor graders with famous engine
FEATURE OF GRADER:
● The high-grade full-sealed luxury cab with full visual field and the high-efficiency shock-absorbing seat maximize the operating comfort.
● The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.
Working adaptability
● With 6 forward gears and 3 reverse gears, the electro-hydraulically controlled power shift transmission can select the optimal gear based on the working road condition to realize the best match between traveling and operation.
● The integral three-segment drive axle is built internally with imported no-spin automatic limited slip differential to guarantee stable and reliable drive.
● The balance box is capable of 15° angular swing in vertical direction and the heavy-duty roller chain drive guarantees better terrain adaptability of the machine. It can meet the normal operations under special road conditions, featuring stable power output and strong drive force.
Operating performance
● It features the higher traction force and the highest operating efficiency among the domestic products of like type.
● The blade of larger angular adjustment range (30°-68°) improves the material control capability and remarkably promotes the operating efficiency of motor grader, especially during the handling of dry material and clay.
FAQ
1. What Certificate do you have?
TDER
workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
TDER never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
TDER will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the TDER
warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
