Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jinan GoodCut
-
Dimension(L*W*H):
-
1300*900*60mm
-
Weight (KG):
-
800 KG
-
Product name:
-
low price 130w cutter 80w price mini laser engraving machine
-
Water chiller:
-
CW5200, CW5000, CW3000
-
Motor:
-
Leadshine stepper motor
-
Software support:
-
CorelDraw, PhotoShop, AutoCAD,TAJIMA,Lasercut5.3
-
Control system:
-
Ruida Control System/Leetro/Topwisdom
-
Laser tube power:
-
50W/80W/100W/130W/150W
-
Laser tube brand:
-
Beijing Reci EFR
-
Lens:
-
US II-VI lens
-
Transmission:
-
belt
Quick Details
-
Engraving Area:
-
1300*900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
75000mm/min
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jinan GoodCut
-
Dimension(L*W*H):
-
1300*900*60mm
-
Weight (KG):
-
800 KG
-
Product name:
-
low price 130w cutter 80w price mini laser engraving machine
-
Water chiller:
-
CW5200, CW5000, CW3000
-
Motor:
-
Leadshine stepper motor
-
Software support:
-
CorelDraw, PhotoShop, AutoCAD,TAJIMA,Lasercut5.3
-
Control system:
-
Ruida Control System/Leetro/Topwisdom
-
Laser tube power:
-
50W/80W/100W/130W/150W
-
Laser tube brand:
-
Beijing Reci EFR
-
Lens:
-
US II-VI lens
-
Transmission:
-
belt

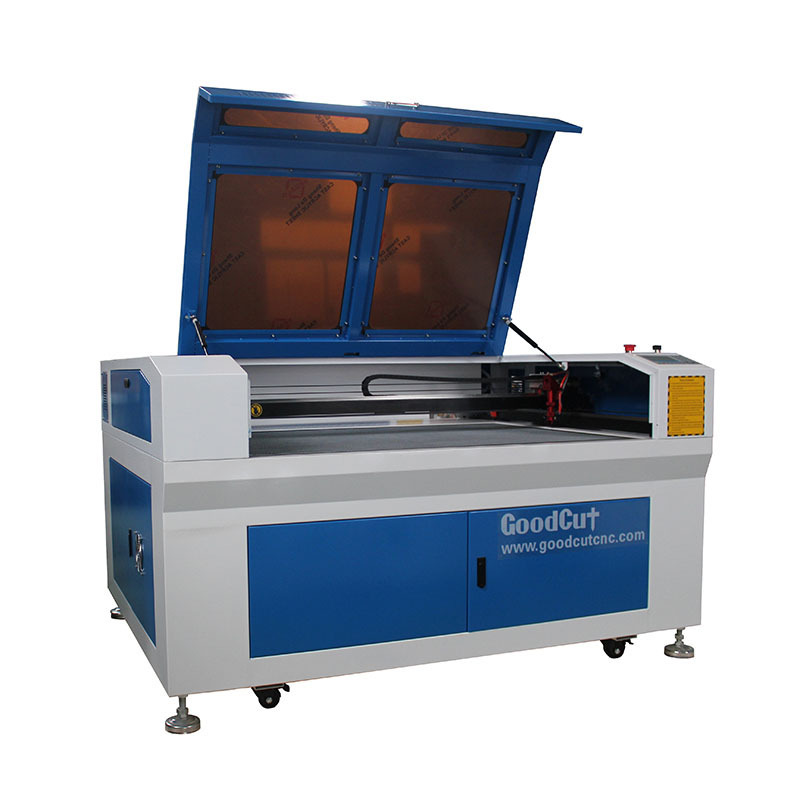

low price 130w cutter 80w price mini laser engraving machine
Main description
This series models adopt DSP&laser power source, self-developed laser power supply as well as integrated frame-structure. The system’s working performance is stable and reliable.
It is equipped with latest software, Auto CAD, CoreIDRAW, CAD, and other graphical software, and it can directly output pictures.
With dual laser head, the MT-D/F series can ensure two laser tubes or three laser tubes or even four laser tubes work simultaneously.
The system is suitable for large-batch producing industry like patch embroidery.
The advantages of the system are that it can double the processing efficiency and ensure the high quality of cutting. So it can combine saving cost with boosting production optimally.
Specification
| Cutting area | 1300x900mm |
| Laser type | Hermetic and detached CO2 glass laser tube |
| Laser power | 60w, 80w, 100w, 120w, 150w |
| Cooling way | Water cooling and protection system |
| Speed control | 0.1~100% set by software and control panel |
| Location accuracy | ±0.01mm |
| Engraving speed | 0.1~1000mm/s |
| Cutting speed | 0.1~500mm/s |
| Control software | RDWorksV8 |
| Display panel | LCD display |
| Supporting format | BMP, PLT, DXF, AI, DST |
| Software support | AutoCAD,CorelDraw, Photoshop, adobe Illustrator |
| Operating environment | Windows98/2000/XP/win7/8, vista |
| Working voltage | AC110V/60HZ or AC220V/50HZ |
| Running environment | Temperature:0-45°, Humidity: 5%-95% |
| Memory Buffer | 128MB |
| Gross power | <2000W |
| Optional parts | cw5000/cw3000 water chiller, overhead ccd camera |
Advantages
1. Adopt the off-line motion control system which need not be connected to PC operation. Use USB data import, can reserve many processing documents.
2. Co2 Laser Engraving Machine strong and stable mechanical structure and digital control.
3. Imported the American focusing mirror and silicon bottom gilded mirror with thin light spot and cutting force.
4. Equipped with professional industrial cooling water system, so the continuous work performance is very stable.
Application
1. Advertising:
billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel, literal-hole cut, lightbox mold, stamp, mould, seal etc.
2. Woodworking:
MDF,wooden mould, wood planks,bamboo, density board.
3. Decoration:
acrylic, organic glass, double color board, coconut shell, ox horn, ABS board, lamp shade, crafts, crystal, glass, ceramic, stone, metal coating etc.
4. Clothing:
leather, cloth, texitle, shoes, fabric etc.
