Quick Details
-
Place of Origin:
-
Chongqing, China
-
Throughput:
-
1-96
-
Reaction Volume:
-
30-1000μL
-
Sample Volume:
-
200μL
-
Compatible Consumables:
-
96-deep-well plates;customized 6 strip tube
-
Inter-well Extraction Difference:
-
CV≤3%
-
Rotational Speed:
-
≤3000rpm
-
Heating Temperature:
-
room temperature to 120℃
-
Operation Mode:
-
7-inch full-color LCD touch screen operation
-
Power Supply and Power Consumption:
-
AC100V-240V,50/60HZ; 600VA
Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Drawell
-
Model Number:
-
GeneRotex 96, GeneRotex 96
-
Place of Origin:
-
Chongqing, China
-
Throughput:
-
1-96
-
Reaction Volume:
-
30-1000μL
-
Sample Volume:
-
200μL
-
Compatible Consumables:
-
96-deep-well plates;customized 6 strip tube
-
Inter-well Extraction Difference:
-
CV≤3%
-
Rotational Speed:
-
≤3000rpm
-
Heating Temperature:
-
room temperature to 120℃
-
Operation Mode:
-
7-inch full-color LCD touch screen operation
-
Power Supply and Power Consumption:
-
AC100V-240V,50/60HZ; 600VA
Introduction:

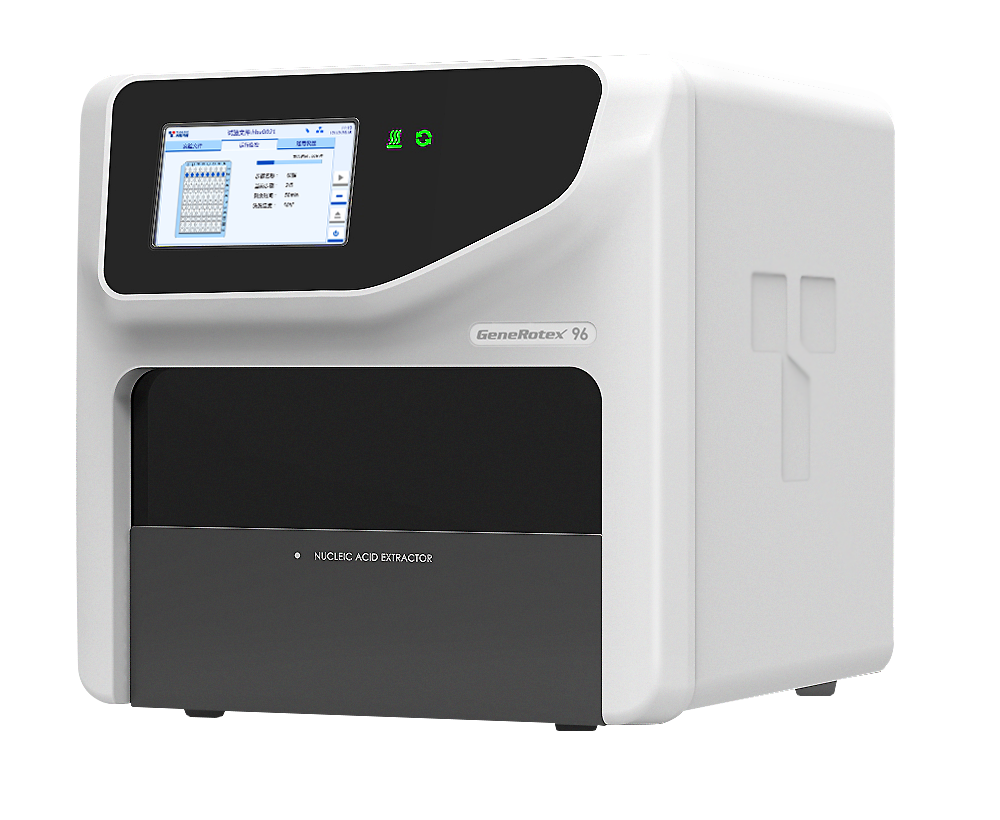

GeneRotex 96 Automatic Nucleic Acid Extractor is designed with our innovative rotary mixing technology (RMT), which can reduce aerosol generated during the purification process, minimize the risk of false positives caused by cross-contamination, and ensure the accuracy of experiment results. The innovative 6*16 extraction module, compatible with 96-deep-well plates and 6-tubestrips, can offer high-throughput extraction and reduce reagent waste without the conventional inconveniences caused by fixed throughput.Flexible and efficient, you can extract from 1 to 96samples per run with GeneRotex 96.
GeneRotex 96 Automatic Nucleic Acid Extractor is designed with our innovative rotary mixing technology (RMT), which can reduce aerosol generated during the purification process, minimize the risk of false positives caused by cross-contamination, and ensure the accuracy of experiment results. The innovative 6*16 extraction module, compatible with 96-deep-well plates and 6-tubestrips, can offer high-throughput extraction and reduce reagent waste without the conventional inconveniences caused by fixed throughput.Flexible and efficient, you can extract from 1 to 96samples per run with GeneRotex 96.
Features:
1. 7 inch color touch screen
Built-in 7-inch full-color LCD screen, easy to operate the experiment.
2. High throughput and efficient extraction
1. 7 inch color touch screen
Built-in 7-inch full-color LCD screen, easy to operate the experiment.
2. High throughput and efficient extraction
6*16 extraction module with special 96 deep well plate and 6 strip tube designed for GeneRotex 96 to ensure high throughput and
reduce reagent waste . You can extract from 1 to 96 samples per run.
3. Innovative rotary mixing technology
Based on Drawell's innovative rotary mixing technology(RMT), GeneRotex 96 can reduce aerosol generated during the experiment and minimize the risk of false positives caused by cross-contamination while being super quiet during operation.
4. Negative pressure system with HEPA filtration
The negative pressure ventilation design with replaceable HEPA filtration can ensure the exhausted air with no biological hazards.
5. High purification and reliable results
Less than 1% residual amount of magnetic beads increase confidence in your experiment result.
reduce reagent waste . You can extract from 1 to 96 samples per run.
3. Innovative rotary mixing technology
Based on Drawell's innovative rotary mixing technology(RMT), GeneRotex 96 can reduce aerosol generated during the experiment and minimize the risk of false positives caused by cross-contamination while being super quiet during operation.
4. Negative pressure system with HEPA filtration
The negative pressure ventilation design with replaceable HEPA filtration can ensure the exhausted air with no biological hazards.
5. High purification and reliable results
Less than 1% residual amount of magnetic beads increase confidence in your experiment result.
Specification
|
Model
|
GeneRotex 96
|
|
|
|
Throughput
|
1-96
|
|
|
|
Reaction Volume
|
30-1000μL
|
|
|
|
Sample Volume
|
200μL
|
|
|
|
Compatible Consumables |
96-deep-well plates |
customized 6 strip tube |
|
|
Inter-well Extraction Difference
|
CV≤3%
|
|
|
|
Rotational Speed
|
≤3000rpm
|
|
|
|
Heating Temperature
|
Lysis heating: room temperature to 120°C Elution heating: room temperature to 120℃
|
|
|
|
Mixing Method
|
Rotary mixing
|
|
|
|
Operation Mode
|
7-inch full-color LCD touch screen operation
|
|
|
|
Program Storage
|
Up to 1000 programs can be storaged
|
|
|
|
Protocol Management
|
Flexible to create,edit and delete protocols
|
|
|
|
Automatic Control
|
Motor-driven automatic opening and closing of the experiment cabinet
|
|
|
|
Magnetic Bead Residue
|
≤1%
|
|
|
|
Power Failure Protection
|
Choose freely whether or not to continue the experiment when the power is on again after cutting off
|
|
|
|
Contamination Control
|
Negative pressure HEPA exhaust filter module; Built-in UV disinfection module
|
|
|
|
Connection Port Type
|
USB port
|
|
|
|
Weight
|
45kg(net)
|
|
|
|
Instrument Dimensions
|
510mm*490mm*480mm (W*L*H)
|
|
|
|
Power Supply and Power Consumption
|
AC100V-240V,50/60HZ; 600VA
|
|
|
