Quick Details
-
Model Number:
-
UF-NL01
-
Specification:
-
I.D 6.3-25mm
-
Length:
-
100-200m
-
Thickness:
-
0.5-2.5mm
-
Standard:
-
RoHS
-
Keyword:
-

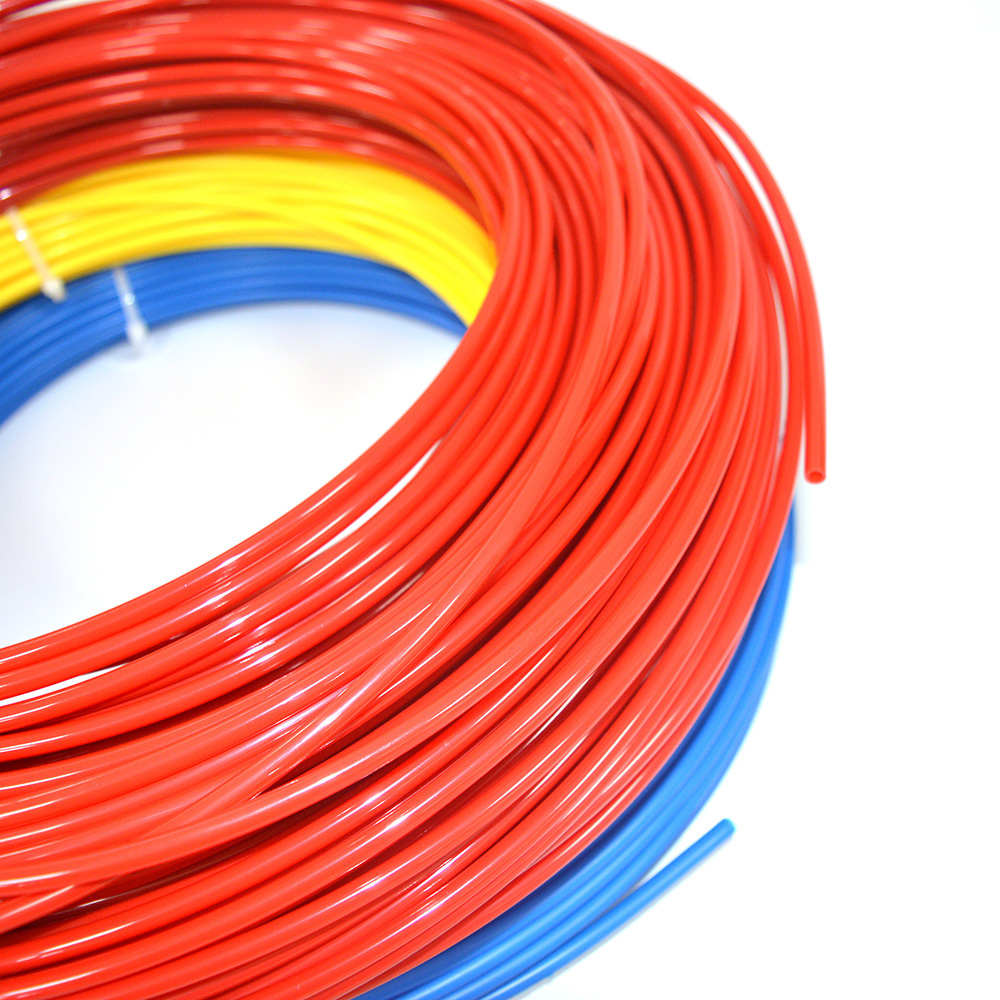

Nylon Air Hose Spray Tubing
-
Hardness:
-
95A-98A
-
Fluid admitted:
-
Air
-
Color:
-
blue,red,black etc.
-
Size:
-
6.3-25mm
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UtigoFlex
-
Model Number:
-
UF-NL01
-
Specification:
-
I.D 6.3-25mm
-
Length:
-
100-200m
-
Thickness:
-
0.5-2.5mm
-
Standard:
-
RoHS
-
Keyword:
-
Nylon Air Hose Spray Tubing
-
Hardness:
-
95A-98A
-
Fluid admitted:
-
Air
-
Color:
-
blue,red,black etc.
-
Size:
-
6.3-25mm
Products Description
Application :
The nylon hose widely used in light truck,air brake hose in car,power steering hose; forklift truck,loading care
excavator,crane,ships,engineering machinery and control system line;paint;high pressure liquid resin spraying pipe,air condition
etc
Features :
1. High mechanical strength, good toughness, high tensile and compressive strength. The specific tensile strength is higher than that of metal, 2. It has outstanding epidemic and labor resistance, and the parts can still maintain their original mechanical strength after repeated bending. 3. High softening point, heat resistant (-20°C -120°C) 4. The surface is smooth, the friction coefficient is small, and it is wear-resistant. 5. Corrosion resistance, very resistant to alkali and most salt liquids, and also resistant to weak acids, engine oil, gasoline, aromatic hydrocarbons and general solvents
Material :
Nylon
Environment and fluid temperature :
-20℃~+120℃
excavator,crane,ships,engineering machinery and control system line;paint;high pressure liquid resin spraying pipe,air condition
etc
Features :
1. High mechanical strength, good toughness, high tensile and compressive strength. The specific tensile strength is higher than that of metal, 2. It has outstanding epidemic and labor resistance, and the parts can still maintain their original mechanical strength after repeated bending. 3. High softening point, heat resistant (-20°C -120°C) 4. The surface is smooth, the friction coefficient is small, and it is wear-resistant. 5. Corrosion resistance, very resistant to alkali and most salt liquids, and also resistant to weak acids, engine oil, gasoline, aromatic hydrocarbons and general solvents
Material :
Nylon
Environment and fluid temperature :
-20℃~+120℃
size
(OD* Wall thick)
|
Weight
(g/m)
|
Tensile Strength
(kgf/cm2)
|
Working
pressure
(MPa)
|
Bending
Radius
(mm)
|
Bursting
Pressure
(MPA)
|
3mm*0.5mm
|
4.3
|
10
|
3.0
|
4.5
|
18
|
4mm*0.75mm
|
8.4
|
13
|
3.1
|
5.5
|
20
|
4mm*1mm
|
10.4
|
16
|
4.5
|
6.8
|
30
|
5mm*1mm
|
13.8
|
22
|
3.4
|
6.5
|
35
|
6mm*1mm
|
17.3
|
34
|
3.2
|
6.3
|
40
|
8mm*1mm
|
24.2
|
43
|
2.6
|
5.7
|
50
|
10mm*1mm
|
31.1
|
62
|
2.7
|
4.5
|
65
|
10mm*1.25mm
|
37.8
|
70
|
2.8
|
5.6
|
65
|
12mm*1.5mm
|
54.4
|
101
|
3.2
|
5.7
|
70
|
14mm*1.5mm
|
64
|
125
|
2.2
|
5.6
|
80
|
15mm*1.5mm
|
70
|
140
|
2.0
|
5.4
|
90
|
16mm*2mm
|
96.7
|
190
|
2.8
|
5.4
|
130
|
18mm*1.5mm
|
85.5
|
210
|
2.3
|
3.6
|
155
|
23mm*2mm
|
145.1
|
260
|
2.1
|
3.3
|
120
|
