Color:Bronze, white and balck for choose.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Extended height:
-
6 meters
-
Mounted:
-
with vehicle
-
Lifting method:
-
pneumatic
-
Material:
-
aluminum alloy
-
Special feature:
-
waterproof
-
Funcation:
-
camera with lighting
-
Color:
-
bronze
-
Surface treatment:
-
hard anodizing
-
Channels:
-
4
Quick Details
-
Special Features:
-
NIGHT VISION, Waterproof / Weatherproof
-
Function:
-
RESET, NIGHT VISION, Waterproof / Weatherproof
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Place of Origin:
-
Tianjin, China
-
Extended height:
-
6 meters
-
Mounted:
-
with vehicle
-
Lifting method:
-
pneumatic
-
Material:
-
aluminum alloy
-
Special feature:
-
waterproof
-
Funcation:
-
camera with lighting
-
Color:
-
bronze
-
Surface treatment:
-
hard anodizing
-
Channels:
-
4
Product Description

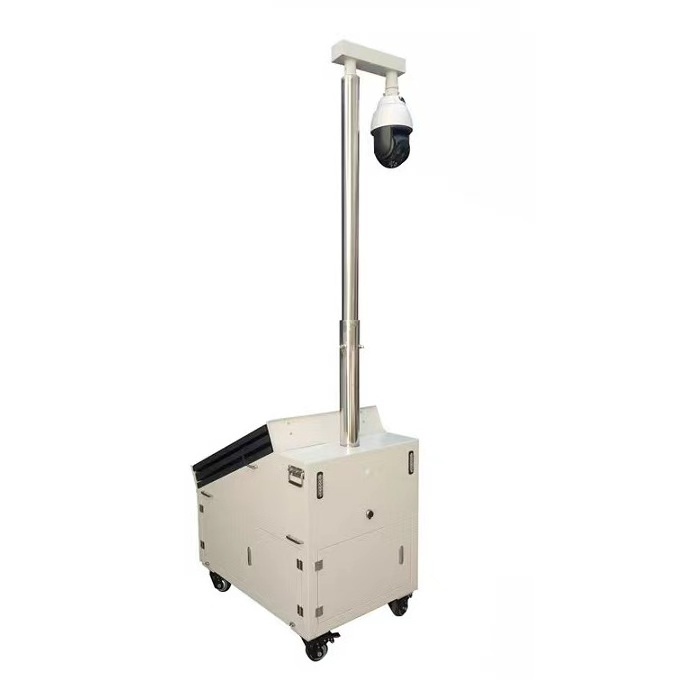

Mobile Surveillance Trailer
Whole set composed of CCTV camera,Lifting system,Transmission system and small trailer. camera to be positioned at heights from 6 ft. to 30 ft.(3m to 9m), the system can be used to monitor and protect valuable property at remote locations. PTZ camera is 360°rotation, support wifi/3G/4G wireless IP signal transmission.
Common application
Law Enforcement,
Traffic Monitoring
Construction Site Security
Commercial,Industrial Security
Sporting,Entertainment,Public Events Security
Incident Events,Disaster Scenes Monitoring
Parking Lots,Airports,Ports And Harbors Security
Border Patrol Security
If you want to have the catalog of our product, Please click here
Mast specification
Available Extended height:2m to 9m
Lift operation choose
lift control should be air compressor, easily and quickly.
Essential features
|
1. Lifting mast
|
|
|
|
Max. extended height
|
5-6 meters
|
|
|
Material
|
aluminum alloy
|
|
|
Lifting method
|
pneumatic lifting by air compressor
|
|
|
Closed height
|
1.8m
|
|
|
Load capaciy
|
max. 20kg
|
|
|
Max. wind load capacity
|
65km/h
|
|
|
2. Camera
|
|
|
|
Network
|
Support 4G LTE / 3G / Wifi
|
|
|
Effective Pixels
|
3 Million Pixels CMOS Sensor,
Support 1920×1080P HD Video Resolution |
|
|
Optical ratio
|
20X
|
|
|
Night Vision
|
Nine high-power array lamps 200 m
|
|
|
Protection Grade
|
IP66
|
|
|
Working temperature
|
-30℃-65℃
|
|
|
Working humidity
|
10%-90%RH
|
|
|
Power supply
|
DC12V
|
|
|
3. Trailer part
|
|
|
|
Material of trailer
|
iron steel
|
|
|
Color
|
White
|
|
|
Trailer size (without wheels)
|
76*76*60cm ( tolerance ±5cm)
|
|
|
Door
|
3pcs with door and key
|
|
Packing & Delivery
|
package
|
|
|
|
|||
|
carton packed
|
normal package is carton for the extended height less than 9m, weight less than 70kg mast, also can be plywood case at customers request
|
|
|
|||
|
plywood packed
|
normal package is plywood case for extended height more than 10m, weight more than
70kg mast
|
|
|
|||
Detail
Mast material is aluminum alloy 6063-T5
Tube surface treatment is Hard anodizing
Acessories
Operation steps
1.check the mast in good condition
2.fixed the mast on the ground. tripod and guy wire fixed diameter
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
2.fixed the mast on the ground. tripod and guy wire fixed diameter
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location.
(it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa
which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.
9. when lift down the mast, please pull down the lifting control valve handle bar..
If you want to have the catalog of our product, Please click here
Catalog
|
Pneumatic telescopic mast
|
|
|
|
|
|
|
||||||
|
MODEL No.
|
Extended
Height (m) |
Retracted
Height (m) |
Bottom
OD (mm) |
TOP
OD (mm) |
Section
NO. |
Head-load
(KG) |
||||||
|
TAL-2.0-1.3-150-AT8
|
2
|
1.3
|
118
|
98
|
2
|
150
|
||||||
|
TAL-3.0-1.5-50-AT8
|
3
|
1.5
|
98
|
66
|
3
|
50
|
||||||
|
TAL-4.0-1.3-20-AT8
|
4
|
1.3
|
87
|
43
|
4
|
20
|
||||||
|
TAL-4.5-1.65-50-AT9
|
4.5
|
1.65
|
118
|
66
|
4
|
50
|
||||||
|
TAL-5.0-1.7-40-AT8
|
5
|
1.7
|
98
|
51
|
4
|
40
|
||||||
|
TAL-5.0-1.75-30-AT9
|
5
|
1.75
|
98
|
51
|
4
|
30
|
||||||
|
TAL-6.0-1.7-30-AT8
|
6
|
1.7
|
118
|
51
|
5
|
30
|
||||||
|
TAL-6.0-1.75-12-AT8
|
6
|
1.75
|
87
|
28
|
5
|
12
|
||||||
|
TAL-6.0-2.0-50-AT9
|
6
|
2
|
118
|
66
|
4
|
50
|
||||||
|
TAL-6.0-1.95-30-AT8
|
6
|
1.95
|
87
|
43
|
4
|
30
|
||||||
|
TAL-6.0-1.5-25-AT9
|
6
|
1.5
|
118
|
51
|
5
|
25
|
||||||
|
TAL-7.0-1.95-40-AT8
|
7
|
1.95
|
118
|
51
|
5
|
40
|
||||||
|
TAL-8.0-1.8-50-AT9
|
8
|
1.8
|
160
|
51
|
7
|
50
|
||||||
|
TAL-8.0-2.2-60-AT7
|
8
|
2.2
|
140
|
66
|
5
|
60
|
||||||
|
TAL-8.0-2.0-25-AT8
|
8
|
2
|
118
|
36
|
6
|
25
|
||||||
|
TAL-9.0-2.15-30-AT8
|
9
|
2.15
|
140
|
51
|
6
|
30
|
||||||
NOTE:
above specification are standard model, customized size accepted
