Quick Details
-
Model Number:
-
NT12-4.5
-
Battery Size:
-
90*70*101*106mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
1.42 KG
-
Size:
-
90*70*101*106mm
-
Certificate:
-
ISO,CE,ROHS
-
Cycle use:
-
14.6-15.0V
-
Standby use:
-
13.5-13.8V
-
Initial current:
-
Less than 1.35A
-
Color:
-
Black/Grey/White
-
Usage:
-
UPS
-
Sealed Type:
-
Sealed
-
Certification:
-
ISO CE ROHS
-
Warranty:
-
1 Year
Quick Details
-
Anode Material:
-
/
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
NEATA
-
Model Number:
-
NT12-4.5
-
Battery Size:
-
90*70*101*106mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
1.42 KG
-
Size:
-
90*70*101*106mm
-
Certificate:
-
ISO,CE,ROHS
-
Cycle use:
-
14.6-15.0V
-
Standby use:
-
13.5-13.8V
-
Initial current:
-
Less than 1.35A
-
Color:
-
Black/Grey/White
-
Usage:
-
UPS
-
Sealed Type:
-
Sealed
-
Certification:
-
ISO CE ROHS
-
Warranty:
-
1 Year
Why choose us?
1.
More than 18 years
of experience in battery production field, welcome to visit our factory
2.With complete production
facilities, professional laboratories, R&D center and senior engineers with more than 10 years of experience.
3. Products have
CE,UL,ROHS,ISO,MSDS
and shipment certifications.
4. Our customized lead acid batteries and lithium batteries are widely used in solar energy systems, UPS,
inverter,telecommunication,back up power for electric system,CCTV and other fields
4. Our customized lead acid batteries and lithium batteries are widely used in solar energy systems, UPS,
inverter,telecommunication,back up power for electric system,CCTV and other fields
PRODUCT FEATURE
Long service time, sufficient power, able to support the use of equipment for a long time.
APPLICATION FIELD
Our batteries are widely used in solar systems, UPS systems, safety systems and control system, telecommunication equipments and electronic appliance inverter, etc.

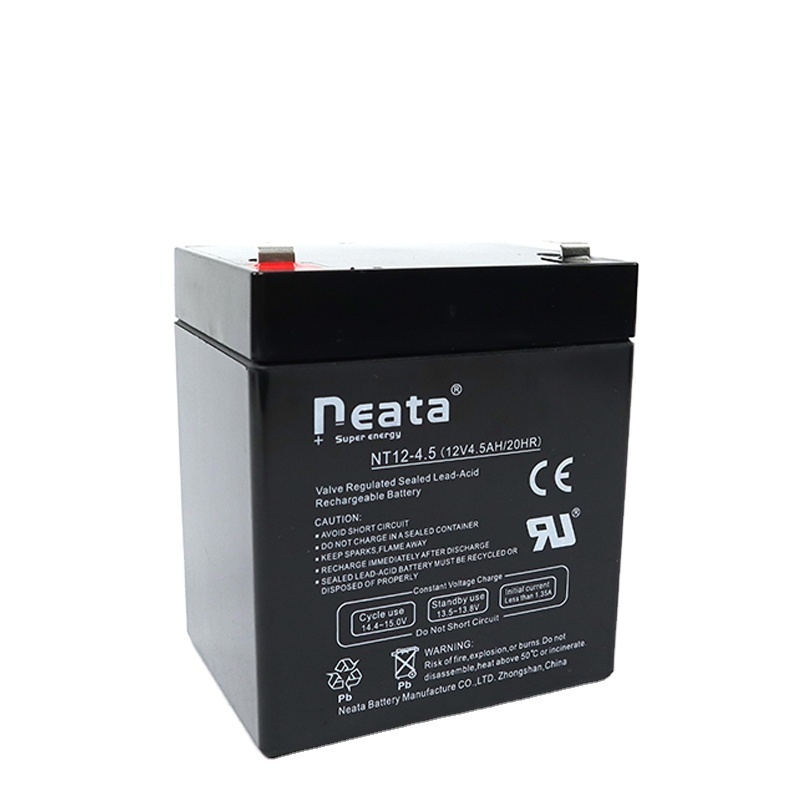

Products Description
|
Nominal Voltage
|
|
|
12V
|
||
|
Nominal Capacity (20 hour rate)
|
|
|
4.5Ah
|
||
|
Capacity
25℃(77°F)
|
|
20 hour rate (0.225A)
|
4.5Ah
|
||
|
|
|
10 hour rate (0.427A)
|
4.27Ah
|
||
|
|
|
5 hour rate (0.72A)
|
3.6Ah
|
||
|
|
|
1 hour rate (2.92A)
|
2.93Ah
|
||
|
Internal Resistance
|
|
Full Charged Battery 25℃(77°F)
|
≤45mΩ
|
||
|
Cyclic Life
|
|
50%(C20) Depth of discharge
|
800Times
|
||
|
Float Life
|
|
25℃(77°F) Float charge at 13.8V
|
About 3-5 Years
|
||
|
Capacity affected by Temperature (20 hour )
|
|
40℃ (104°F)
|
102%
|
||
|
|
|
25℃ (77°F)
|
100%
|
||
|
|
|
0℃ (32°F)
|
85%
|
||
|
|
|
-15℃ (5°F)
|
65%
|
||
|
Self-Discharge
25℃(77°F)
|
|
Capacity after 3 month storage
|
90%
|
||
|
|
|
Capacity after 6 month storage
|
80%
|
||
|
|
|
Capacity after 12 month storage
|
62%
|
||
|
Charge (Constant Voltage) 25℃(77°F)
|
Cycle
|
Initial Charging Current Less than 1.35A
Voltage 14.6-15.0V
|
|
||
|
|
Float
|
Voltage 13.5-13.8V
|
|
||
|
Battery
(L×W×H)
|
mm±1
|
90×70×106
|
|
|
|
inch
|
3.55×2.76×4.18
|
|
|
Box
(L×W×H)
|
mm±2
|
375×195×125
|
|
|
|
inch
|
14.8×7.68×4.93
|
|
|
Quantity Per Box
|
|
10 PCS
|
|
|
Net weight Per Cell
|
|
1.42Kg±25g
|
|
|
Net weight Per Box
|
|
14.2 Kg
|
|
|
Gross Weight
|
|
14.5 Kg
|
|
|
Component
|
Positive plate
|
Negative plate
|
Container
|
Safety valve
|
Terminal
|
Separator
|
Electrolyte
|
|
Raw Material
|
Lead dioxide
|
Lead
|
ABS
|
Rubber
|
Copper
|
Fiberglass
|
Sulfuric acid
|
