geocell ground grid shed base honeycomb plastic geocell gravel grid geocell retaining wall
geocell ground grid shed base honeycomb plastic geocell gravel grid geocell retaining wall
geocell ground grid shed base honeycomb plastic geocell gravel grid geocell retaining wall
geocell ground grid shed base honeycomb plastic geocell gravel grid geocell retaining wall
geocell ground grid shed base honeycomb plastic geocell gravel grid geocell retaining wall
geocell ground grid shed base honeycomb plastic geocell gravel grid geocell retaining wall
geocell ground grid shed base honeycomb plastic geocell gravel grid geocell retaining wall
geocell ground grid shed base honeycomb plastic geocell gravel grid geocell retaining wall

geocell ground grid shed base honeycomb plastic geocell gravel grid geocell retaining wall

FOB Reference Price: Get Latest Price
≥500 Square meters
US $1.5
≥3000 Square meters
US $1.45
≥5000 Square meters
US $1.4
≥100000 Square meters
US $0.6
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Application:
Road
Design Style:
Modern
Place of Origin:
China
Brand Name:
TAIWEI
Model Number:
4*5m-6*7m

Quick Details

Warranty:
3 years
After-sale Service:
Online technical support, Return and Replacement
Project Solution Capability:
graphic design, total solution for projects
Application:
Road
Design Style:
Modern
Place of Origin:
China
Brand Name:
TAIWEI
Model Number:
4*5m-6*7m
Product Description

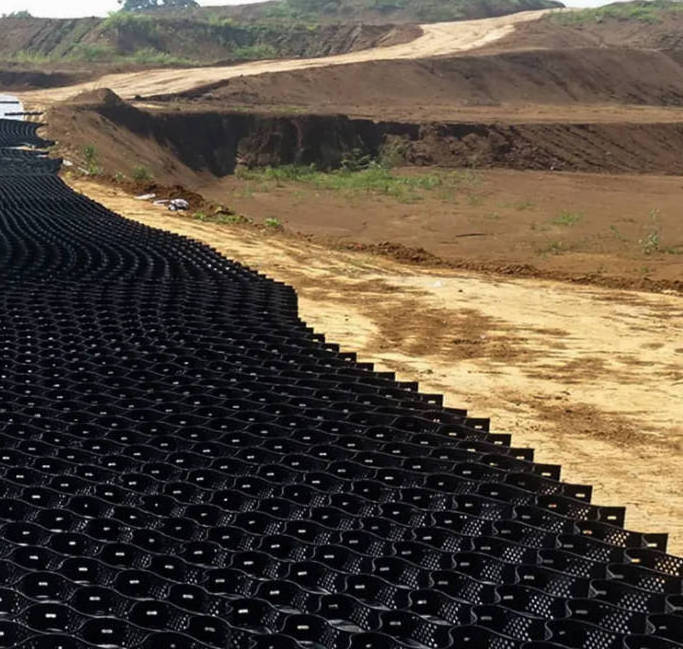

GEOCELL
Geocells are engineered for protection and stabilization applications. They are often used to help improve the performance of
standard construction materials and erosion-control treatments. Geocell products are three-dimensional, expandable panels made
from high-density polyethylene (HDPE), polyester or another polymer material. When expanded during installation, the
interconnected strips form the walls of a flexible, three-dimensional cellular structure into which specified infill materials are
placed and compacted. This creates a free-draining system that holds infill materials in place and prevents mass movements by
providing confinement through tensile reinforcement. Cellular confinement systems improve the structural and functional behavior
of soils and aggregate infill materials.


Retaining Wall
Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced walls)
for steep faces, walls and irregular topography


The three-dimensional lateral confinement of Cellular Confinement Systems along with anchoring techniques ensures the long-term
stability of slopes using vegetated topsoil, aggregate or concrete surfacing
Specification
Cell Depth
50mm — 300mm
Welding Space
300mm — 1000mm
Thickness
1.0mm — 1.5mm for smooth geocell
1.3mm — 1.5mm for textured geocell
Appearance
Smooth and non-perforated, Textured and non-perforated, Smooth and perforated, Textured and perforated
Color
Green ， Black ， Gray
Product Type
Height (mm)
Welding Distance (mm)
Thickness(mm)
Tensile Strength of Welding Points (N/cm)
Tensile Strength of Connection of Cells (N/cm )
Tensile Strength at Yield of Each Sheet (MPa)
Smooth and Not Perforated
50≤H≤300
300≤A≤1000
1.0 —1.5
≥100
≥120
≥20
Smooth and Perforated
50≤H≤300
300≤A≤1000
1.0 —1.5
≥100
≥120
≥20
Textured and Not Perforated
50≤H≤300
300≤A≤1000
1.3 —1.5
≥100
≥120
≥20
Textured and Perforated
50≤H≤300
300≤A≤1000
1.3 —1.5
≥100
≥120
≥20
Construction
Geotextile
Product Application:
Mainly used for reinforcement,filtration,isolation and drainage of water conservancy,environment
protection,roads,railways,dams,beach coatings,metallurgical mines,etc.
Product features:
High mechanical index,good creep performance;strong corrosion resistance,anging resistance,excellent heat resistance and
excellent hydraulic performance.
Composite Geotextile
Product introduction:
Non-woven geotextile is used as the substrate, and polyethylene, polyvinyl chloride and other materials are used as the membrane.
Product Application :
It is an ideal anti-seepage material, which is widely used in water conservancy and traffic tunnel projects such as channels, guarding, plain reservoirs, anti-seepage reinforcement of reservoirs and anti-seepage of rockfill dams.
Bentonite Waterproof Blanket
Product Application:
Mainly used in waste landfills,underground in frastructure
construction and other projects.
It solves the problems of sealing,isolation and leakage prevention,with good effect and srong resistance to damage.
Product features:
Small size,light weight,good flexbility,good sealing,simple construction,and adapt to uneven settlement.
HDPE Geomembrane
Product Features:
HDPE geomembrane has excellent environmental stress crack resistance, large operating temperature (-60~- +60) and
ong service life (50 years). Product Application:
Environmental protection engineering, water conservancy geotechnical engineering, municipal engineering, land- caping, petrochemical. Mining, transportation facilities engineering, agriculture, aquaculture (fish ponds, linings of shrimp ponds, etc.).
Geogrid
Product Features:
1.Increase the bearing capacity of the road base and extend the service life of the road base;
2.Prevent the road surface from collapsing or cracking.
3.Strengthen the soil slope to prevent soil erosion; Sup-port the stability of the slope planting mats greening environment;
Product Application:
It is suitable for foundation reintorcement of various dams and subgrade re-inforcement, slope protection, wall reinforcement, large airports, parking lots, dock yards.
