Name
: Bitzer
Brand
: Germany brand
The compressor is the only engine of the refrigeration system, it's just
as the heart for a human being
, so the quality of compressor enfluence the refrigeration effect. Bitzer brand is good quality one, and widely used all over the world.
- Product Details
- {{item.text}}
Quick Details
-
Ice storage capacity:
-
2.5kg
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kingwell
-
Dimension(L*W*H):
-
2300X1400X660mm
-
Weight:
-
880 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Refrigerant:
-
R404a / R22
-
Ice size:
-
2.5kgs, 5kg, 10kgs or customized
-
Cooling:
-
Air
-
Water tank material:
-
304 stainless steel
-
Block ice freezing time:
-
4.8 hours
-
Product name:
-
1 ton ice block making machine industrial ice plant south africa
-
Keyword:
-
industrial ice machine
Quick Details
-
Ice Shape:
-
ICE BLOCK
-
Voltage:
-
380V,50hz,3P/customized
-
Power:
-
3kw
-
Ice storage capacity:
-
2.5kg
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kingwell
-
Dimension(L*W*H):
-
2300X1400X660mm
-
Weight:
-
880 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Refrigerant:
-
R404a / R22
-
Ice size:
-
2.5kgs, 5kg, 10kgs or customized
-
Cooling:
-
Air
-
Water tank material:
-
304 stainless steel
-
Block ice freezing time:
-
4.8 hours
-
Product name:
-
1 ton ice block making machine industrial ice plant south africa
-
Keyword:
-
industrial ice machine
Product Description

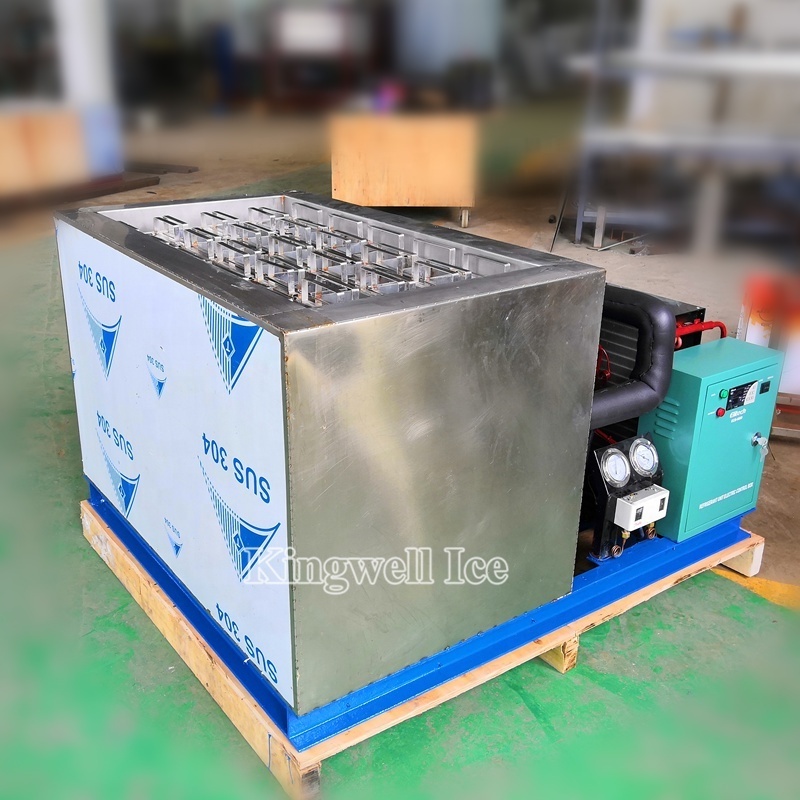

Commercial high production 1 ton stainless steel block ice making machine
Block ice machine combine by three part:
compressor machinery unit, salt water tank(with ice cans inside) and water cooling tower.
|
SPECIFICATIONS FOR 1 TONS PER DAY BLOCK ICE PLANT
|
|
|
|
|||
|
Compressor
|
Brand
|
Danfoss
|
|
|||
|
|
Horse Power
|
4HP
|
|
|||
|
|
Type
|
hermetic compressor
|
|
|||
|
Technical specification
|
Supply Power
|
380V, 50Hz, 3Phase / Customized
|
|
|||
|
|
Input Water Temp.
|
21℃
|
|
|||
|
|
Condensing Temp.
|
40℃
|
|
|||
Main Features
1). The block ice it created is
strong and hard
, do
not melt easily
, which is suitable for long-term and long-distance storage.
2).
Energy saving
: Using salt water as secondary refrigerant, which can help the ice freezing quicker, consumes less electricity.
Application
Widely application of block ice
Different ice cans
Stainless steel & galvanised steel ice cans
Technical Parameter
Why choose us (Feature)
1,
Improved working system Unsurpassed in the industry
, Most efficient in electrical and water consumption.
2,
Easy to Maintenance
, Save time and without worry
3, Professional, Experience, Faithful & Fast reply
4,
Multi-purpose models
available to suit all of your needs
Notes:
* Power supply: 380V~420V, 60hz; 3P; 220V~240V, 60hz, 3P; 380V, 50HZ, 3P; 440~480V, 60HZ, 3P.
* Above capacity based on makeup water temperature of 21℃, evaporating temperature of -15℃
and condensing temp. 40℃. The actual capacity will be changed by different ambient temp. and make-up water temp.
* The daily capacity can be ranged from 1ton to 120 tons or we can design as per your requirements.
Detailed Images
Compressor
High/Low Pressure Controller
Name
: Danfoss
Brand
: Denmark brand
The high/low pressure controller is used as
pressure controller and pressure protector
, when the pressure of system reaches the setting point, it turns on or off automatically to keep the compressor refrigeration unit from damage.
Electrical components
Name
: LS
Brand
: South Korea brand
The electrical components like power switch, contactor, thermal relay are all protector for other refrigeration components.
Expansion Valve
Name
: Danfoss
Brand
: Denmark brand
World famous brand, with stable performance and low failure.
