1.Fire protection facilitiesMostly used for fire automatic fire alarm system detector lines.
2.Home-assembled electricity
Applicable to household appliances, small power tools, instruments and power lighting line.
3.Set with the connection
Used to connect the amplifier and audio equipment, broadcasting systems to transmit the audio signal amplified by the amplifier.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
gemt
-
Model Number:
-
RVS
-
Rated voltage:
-
300/500
-
Implementation standard:
-
JB/T 8734.3-2012
-
Rated Voltage:
-
300/500V
-
color:
-
accept custom
-
Specification:
-
0.3-6mm²
-
Number of cores:
-
2 core
-
Rated Temperature:
-
-20°C ~ 70°C
Quick Details
-
Application:
-
Other
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
gemt
-
Model Number:
-
RVS
-
Rated voltage:
-
300/500
-
Implementation standard:
-
JB/T 8734.3-2012
-
Rated Voltage:
-
300/500V
-
color:
-
accept custom
-
Specification:
-
0.3-6mm²
-
Number of cores:
-
2 core
-
Rated Temperature:
-
-20°C ~ 70°C
Products Description
RVS cable, twist multiple strands of cord, is also called twisted pair, or coloured thread. Applicable to household lighting,
electrical appliances, instruments, broadcasting and audio connection control. Fire control wire, connected with the power
amplifier and audio equipment, broadcasting system transmission by the power amplifier amplification processing of audio signals.
Product Characteristics
1. Conductor: Solid single or multiple strands of bare copper wire or tin-plated copper wire stranded.2. Insulation: PVC/C.
3. Insulation core wires are placed in parallel.
4. With acid resistance, oil resistance, moisture resistance, mildew resistance and other properties.
5. Flame retardancy is strong.
6. Rated voltage: U/U 300/300V.
7. Rated temperature: ≤70℃.
8.Environment temperature: ≥-15℃.
9. Laying temperature: ≥0℃.
10. Bending radius: The minimum bending radius should not be less than 6 times of the cable diameter.
electrical appliances, instruments, broadcasting and audio connection control. Fire control wire, connected with the power
amplifier and audio equipment, broadcasting system transmission by the power amplifier amplification processing of audio signals.
Product Characteristics
1. Conductor: Solid single or multiple strands of bare copper wire or tin-plated copper wire stranded.2. Insulation: PVC/C.
3. Insulation core wires are placed in parallel.
4. With acid resistance, oil resistance, moisture resistance, mildew resistance and other properties.
5. Flame retardancy is strong.
6. Rated voltage: U/U 300/300V.
7. Rated temperature: ≤70℃.
8.Environment temperature: ≥-15℃.
9. Laying temperature: ≥0℃.
10. Bending radius: The minimum bending radius should not be less than 6 times of the cable diameter.
|
Conductor Nominal Cross-section
|
Conductor Construction
|
Insulation Nominal thickness
|
Max.Diameter of cable
|
|
mm2
|
mm
|
mm
|
mm
|
|
2x0.5
|
2x16/0.2
|
0.6
|
2x2.6
|
|
2*0.75
|
2x24/0.2
|
0.6
|
2x2.8
|
|
2x1.0
|
2x32/0.2
|
0.6
|
2x3.0
|
|
2x1.5
|
2x32/0.25
|
0.7
|
2x3.5
|
|
2x2.5
|
2x50/0.25
|
0.8
|
2x3.8
|
The above parameters are for reference only and can be produced according to customer requirements. Please contact customer service if needed
Product Details Images

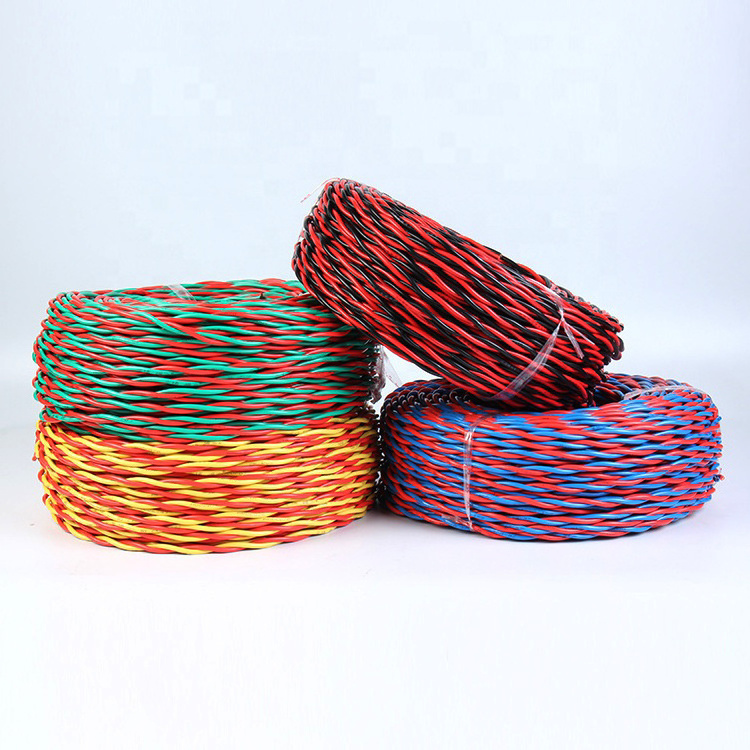

Product physical image
Product packaging
a) Packing lengths: 100m/roll, 200m/roll, 305m/roll or up to your requirments
b) Inner packing: wooden reel,coil, plastic reel
c) Outer packing: carton box
d) Other packing available according to customer
Why Choose Us
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.
Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
