Quick Details
-
Application:
-
Building Construction, Concrete Construction
-
Design Style:
-
Modern
-
Type:
-
H20 timber beam
-
Place of Origin:
-
China
-
Brand Name:
-
Youfa
-
Material:
-
Wooden
-
Product name:
-
H20 timber beam
-
Color:
-
Yellow
-
Size:
-
200mm(Height)x80mm(Width)x40mm(Flange Thickness)x27
-
Surface treatment:
-
Coated Painted
-
Thickness:
-
27mm
-
MOQ:
-
100 Pieces
-
standard:
-
EN74/BS1139/AS1576
-
Packing:
-
Bulk
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Other
-
Project Solution Capability:
-
Others
-
Application:
-
Building Construction, Concrete Construction
-
Design Style:
-
Modern
-
Type:
-
H20 timber beam
-
Place of Origin:
-
China
-
Brand Name:
-
Youfa
-
Material:
-
Wooden
-
Product name:
-
H20 timber beam
-
Color:
-
Yellow
-
Size:
-
200mm(Height)x80mm(Width)x40mm(Flange Thickness)x27
-
Surface treatment:
-
Coated Painted
-
Thickness:
-
27mm
-
MOQ:
-
100 Pieces
-
standard:
-
EN74/BS1139/AS1576
-
Packing:
-
Bulk
Product Description

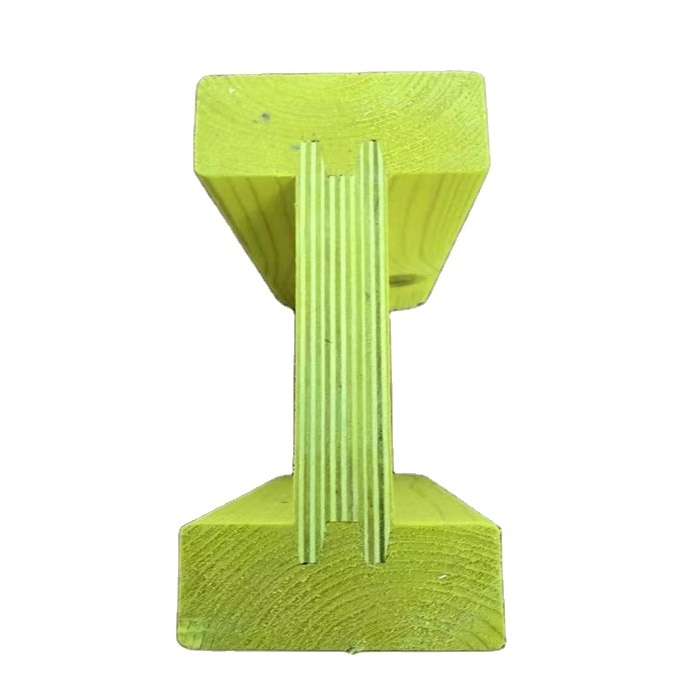

H20 Timber Beam
, as one of the basic components in more than a half formwork system,
maintains the property to be lighter, stronger, safer and more durable in order to achieve better performance for site jobs. The application range could cover kinds of different wall formwork, slab formwork, table formwork, column formwork ect.
maintains the property to be lighter, stronger, safer and more durable in order to achieve better performance for site jobs. The application range could cover kinds of different wall formwork, slab formwork, table formwork, column formwork ect.
Technical Specification
Flange: Radiate pine LVL from New Zealand
Web: Poplar core plywood
Glue: WBP glue
Weight: around 5.0 kg/m
Available length (m): 1.5, 1.9, 2.45, 2.75, 2.90, 3.00, 3.30, 3.60, 3.90, 4.50, 4.90, 5.90 etc. or customized
Flange: Radiate pine LVL from New Zealand
Web: Poplar core plywood
Glue: WBP glue
Weight: around 5.0 kg/m
Available length (m): 1.5, 1.9, 2.45, 2.75, 2.90, 3.00, 3.30, 3.60, 3.90, 4.50, 4.90, 5.90 etc. or customized
Feature
* Flange is made from imported radiate pin LVL, Finger-jointed into the web
* Web is made from poplar core plywood with Melamine WBP glue
* Two ends of each beam can be sealed with protective caps to protect them from moisture,
reduce damage and increase service life
* Yellow water proof painting
* Monitoring as per EN13377 standard
* Flange is made from imported radiate pin LVL, Finger-jointed into the web
* Web is made from poplar core plywood with Melamine WBP glue
* Two ends of each beam can be sealed with protective caps to protect them from moisture,
reduce damage and increase service life
* Yellow water proof painting
* Monitoring as per EN13377 standard
Specification
|
item
|
specification
|
|
Type
|
H20 timber beam
|
|
Warranty
|
1 Year
|
|
After-sale Service
|
Online technical support, Other
|
|
Project Solution Capability
|
Others
|
|
Application
|
Building Construction
|
|
Design Style
|
Modern
|
|
Place of Origin
|
China
|
|
Brand Name
|
Youfa
|
|
Glue
|
WEP Glue
|
|
Material
|
pine LVL , poplar LVL
|
|
Product name
|
H20 timber beam
|
|
Color
|
Yellow
|
|
Size
|
200mm(Height)x80mm(Width)x40mm(Flange Thickness)x27
|
|
Surface treatment
|
Coated Painted
|
|
Certificate
|
SGS
|
|
Use
|
Construction/ Concrete Shuttering/ Formwork Support
|
|
MOQ
|
100 Pieces
|
|
standard
|
EN74/BS1139/AS1576
|
|
Packing
|
Packing standard packing：50pcs package；Container Packing：100pcs package
|
Packing & Delivery
Packing standard packing：50pcs package；Container Packing：100pcs package
