Quick Details
-
Usage:
-
Pressing Metal Product
-
Type:
-
c-type
-
Material:
-
Steel Material
-
Application:
-
Metal Sheet Stamping
-
Product name:
-
high speed hydraulic press
-
Model:
-
Deep Throat Punching Machine
-
Keyword:
-
Hydryalic Press
-
Advantage:
-
PLC control
Quick Details
-
Place of Origin:
-
Shandong, China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
Punching And Press
-
Usage:
-
Pressing Metal Product
-
Type:
-
c-type
-
Material:
-
Steel Material
-
Application:
-
Metal Sheet Stamping
-
Product name:
-
high speed hydraulic press
-
Model:
-
Deep Throat Punching Machine
-
Keyword:
-
Hydryalic Press
-
Advantage:
-
PLC control

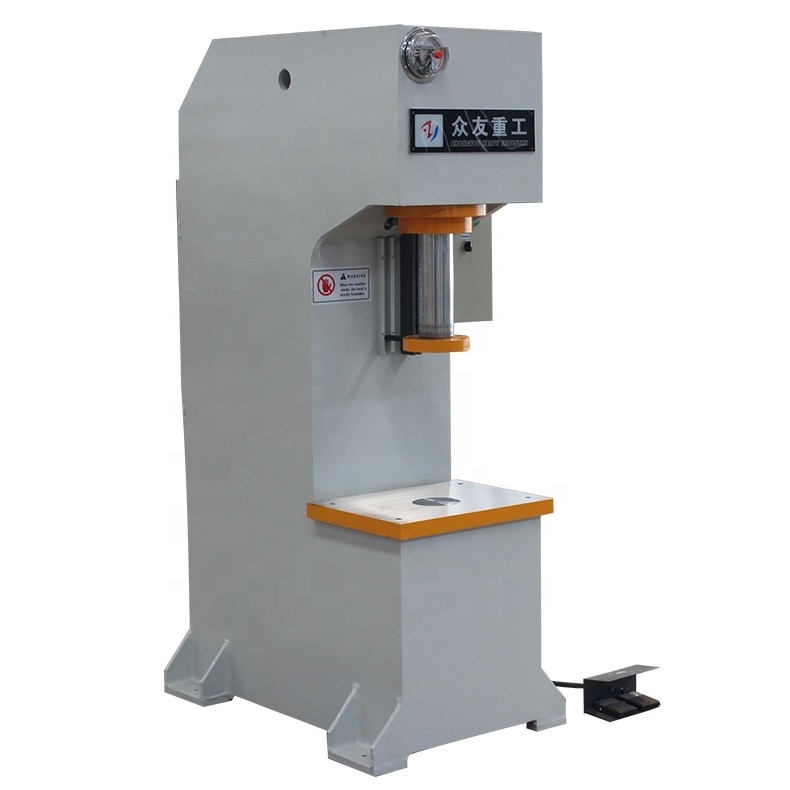

high speed Precision forging c frame hydraulic press
1)Servo C Frame Hydraulic Press Machine is suitable for punching forming, riveting, half and full cutting of thin sheet, point press forming for locknut, etc.
2) It is widely used to shaping and punching for metal and nonmetal.
Technical Characteristics
1) Using built-in high speed cylinder, has fast falling speed and high production efficiency.
2) C frame structure design allows wholly accessible operating space, long stroke distance and enough opening height.
3) Pressure, stroke and pressurizing time can be adjusted according to processing requirement.
4) Optional configuration: protective cover, anti-drop device, LED lighting and infrared grating, etc.
Specification
|
Specification |
Unit |
YQ41-40 |
YQ41-63 |
YQ41-100 |
|
Nominal force |
Kn |
400 |
630 |
1000 |
|
Effective stroke |
mm |
260 |
280 |
320 |
|
Max. Opening height |
mm |
600 |
700 |
700 |
|
Throat depth |
mm |
220 |
240 |
280 |
|
The slide block descending speed |
mm/s |
19 |
13 |
10 |
|
The slide block return speed |
mm/s |
25 |
17 |
13 |
|
Worktable effective area (Left and right) |
mm |
500 |
600 |
700 |
|
Worktable effective area (front and back ) |
mm |
400 |
450 |
500 |
|
Blanking hole diameter |
mm |
100 |
120 |
200 |
|
Machine size |
mm |
1080*650*1800 |
1180*700*2020 |
1380*800*2120 |
|
Motor power |
Kw |
3 |
5.5 |
5.5 |
Servo system, it can bring you 10 kinds Advantages as below:
1. It can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.
2. English and customer country local language, bilingual operation interface, it is easy to operate.
3. It can save 50% - 70% electricity energy.
4. Pressure, stroke and speed can be adjusted on the touch screen, it is easy to operate.(Machine without servo system, speed can not been adjusted.)
5.It can be 3 to 5 years longer service life than the common machine.
it means,if common machine can service for 10 years, but the machine with servo system of life is 15 years.
6.Automatic alarm and auto troubleshooting system is ensure safety and easy to find problems.
7.Very easy to change mold, shorter time of changing mold.
Because it have memory function,if use the original mold, do not need to adjust parameter again,
8.Very quiet , do not have noise.
9.Much stable than common machine.
10.Much high precision than common machine.
This hydraulic press machine could be used in calibration process of shaft parts ,bearing and other similar parts .also could press-fit the shaft and sleeve parts , and this hydraulic press could be used the simple strip shape element stretch, moulding ,blanking , coining and so on processing
Our C Frame Presses are available in 20, 40, 63, 100 ton to 500 ton models. Our presses are built with dual controls which enable operators to select from either a moveable pedestal complete with dual electric palm buttons and extra emergency stop, or a foot pedal.
Packaging Details
Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.
Delivery Time for High Speed Four Column Hydraulic Press Machine for Oil Filter:
Shipped in 30 days after payment
