Quick Details
-
Structure:
-
Gate
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
HTW-V61
-
Port Size:
-
G15,G20,G25
-
Power Supply:
-
AC220V±10%, 50/60Hz
-
Consumption:
-
5W
-
Liquid temperature:
-
1~95°C
-
Pressure(MPa):
-
1.6
-
Medium:
-
Cool/hot water
-
Drive style:
-
Bi-direction reversible motor drive
-
N.W.(Kg):
-
Actuator 0.35
Quick Details
-
Type:
-
Gate Valves, SOLENOID VALVES
-
Application:
-
General
-
Power:
-
Electric
-
Structure:
-
Gate
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
HTW-V61
-
Port Size:
-
G15,G20,G25
-
Power Supply:
-
AC220V±10%, 50/60Hz
-
Consumption:
-
5W
-
Liquid temperature:
-
1~95°C
-
Pressure(MPa):
-
1.6
-
Medium:
-
Cool/hot water
-
Drive style:
-
Bi-direction reversible motor drive
-
N.W.(Kg):
-
Actuator 0.35
>> General

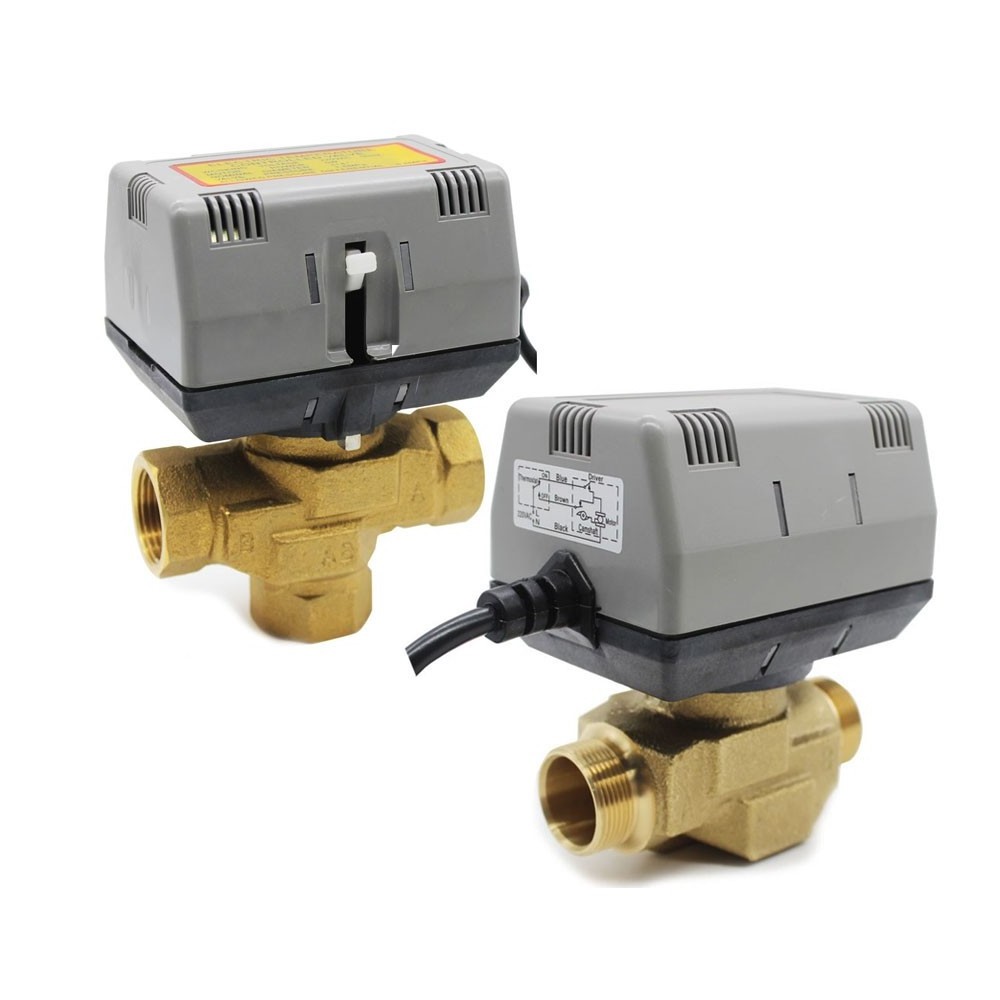

HTW-V61 series motorized valves(3-wire) are used to control the flow of hot water, chill water in heating, cooling or air-conditioning applications, so as to control room temperature indirectly. It consists of Actuator and Valve Body. The room temperature could be controlled in the set-point through turn-on or turn-off of valve.
>> Models & Specifications of Valve Body
|
Model
|
Configuration
|
Kvs
|
Connection Type
|
Differential Pressure(MPa)
|
|
HTW-V61-215
|
normally closed two-way
|
2
|
G1/2
|
0.20
|
|
HTW-V61-220
|
normally closed two-way
|
3.2
|
G3/4
|
0.10
|
|
HTW-V61-225
|
normally closed two-way
|
5.7
|
G1
|
0.06
|
|
HTW-V61-315
|
mixing three-way
|
3.2
|
G1/2
|
0.20
|
|
HTW-V61-320
|
mixing three-way
|
4.6
|
G3/4
|
0.10
|
|
HTW-V61-325
|
mixing three-way
|
4.8
|
G1
|
0.06
|
>> Wiring Diagram
>> Dimensions
>> Installation
