Quick Details
-
Length:
-
Continuous
-
Application:
-
Antistatic Brushes
-
C Content (%):
-
≤0.05%
-
Si Content (%):
-
≤1.00%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ENDNUS
-
Model Number:
-
HPTH-2519
-
Filaments:
-
100/275/1000
-
Strands:
-
2/3
-
Filament Diameter:
-
12um
-
Weight Per Meter:
-
0.53g
-
Breaking Strength:
-
>8kgf
-
Elongation:
-
>2.5%
Quick Details
-
Grade:
-
316L
-
Tolerance:
-
±5%
-
Steel Grade:
-
316L
-
Length:
-
Continuous
-
Application:
-
Antistatic Brushes
-
C Content (%):
-
≤0.05%
-
Si Content (%):
-
≤1.00%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ENDNUS
-
Model Number:
-
HPTH-2519
-
Filaments:
-
100/275/1000
-
Strands:
-
2/3
-
Filament Diameter:
-
12um
-
Weight Per Meter:
-
0.53g
-
Breaking Strength:
-
>8kgf
-
Elongation:
-
>2.5%

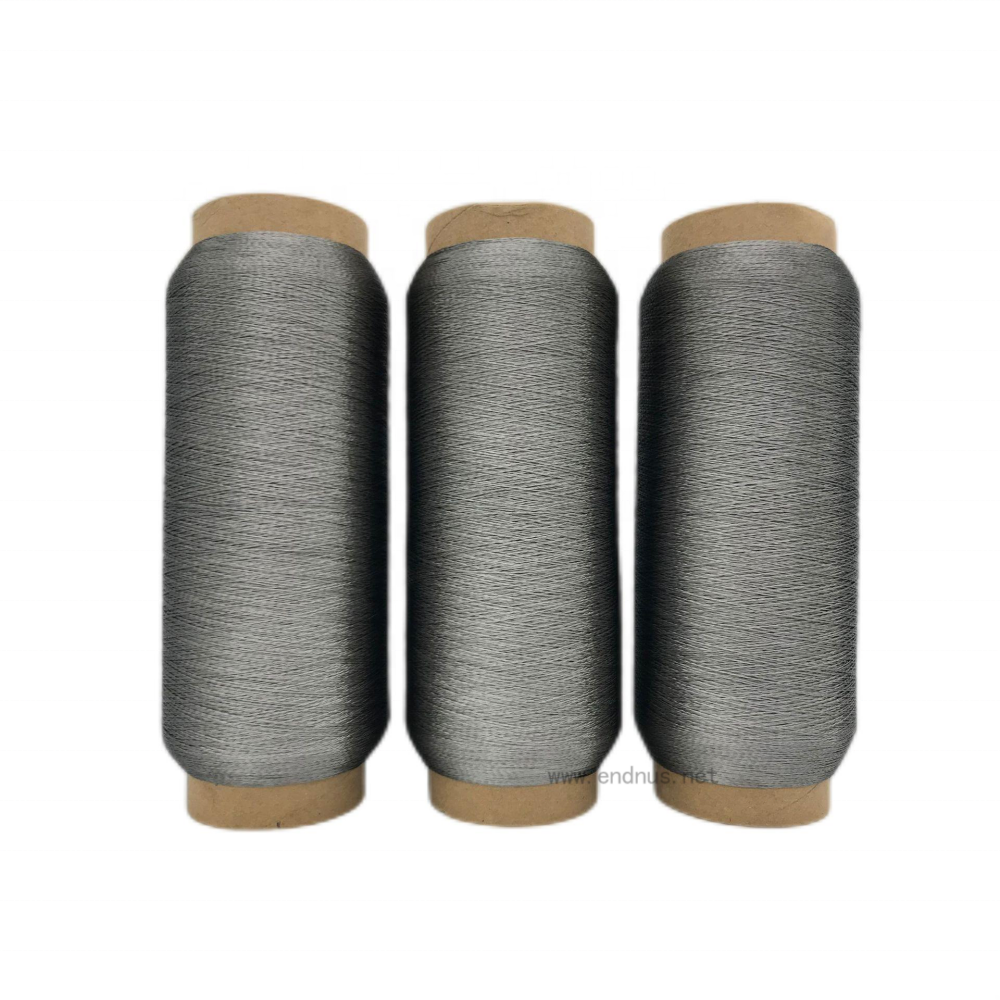

ENDNUS filament yarns are made of 100% stainless steel continuous multifilament, resulting in a very soft and pliable yarn with high strength, high temperature resistance and good conductive performance.
ENDNUS stainless steel conductive thread has very good conductivity, resistance is between from 2Ω/M to 59 Ω/M, it can be used for conductive wire in electronics, smart clothing and wearables.
Because it is made of stainless steel fibers, it will not oxidize like silver does: your projects will not 'stop working' because of oxidation after a few months and its safe to wash.
ENDNUS offers a wide range of stainless steel conductive threads, welcome to contact with us if you have any specify requirements for your end application.
|
Specification |
Weight (g/M) |
Strength (N) |
Elongation (%) |
Resistance (Ω/M) |
|
ES-12μm*100*1 |
0.095 |
20 |
1.10 |
59 |
|
ES- 12μm*100*2 |
0.19 |
38 |
1.10 |
38 |
|
ES- 12μm*100*3 |
0.28 |
64 |
1.10 |
22 |
|
ES- 12μm*275*1 |
0.26 |
43 |
1.10 |
27 |
|
ES- 12μm*275*2 |
0.54 |
85 |
1.10 |
14 |
|
ES- 12μm*275*3 |
0.78 |
127 |
1.10 |
9 |
|
ES- 12μm*275*4 |
1.05 |
130 |
1.10 |
7 |
|
ES- 12μm*275*5 |
1.3 |
155 |
1.10 |
5 |
|
ES- 12μm*1000*1 |
0.95 |
100 |
1.10 |
7 |
|
ES- 12μm*1000*2 |
1.9 |
180 |
1.10 |
4 |
|
ES- 12μm*1000*3 |
2.85 |
260 |
1.10 |
3 |
|
ES- 12μm*1000*4 |
3.8 |
320 |
1.10 |
2 |
Anti-static brush
High temperature resistant sewing thread
Conductive sewing thread
Signal transfer lines
Intelligent garment
Textile weaving, knitting and braiding
Electric blanket heating wire
