Quick Details
-
Range of Spindle Speed(r.p.m):
-
60 - 1600 r.p.m
-
Width of bed (mm):
-
210
-
Max. Turned Length (mm):
-
600 mm
-
Spindle Motor Power(kW):
-
1.1
-
Year:
-
2020
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
CTMACH
-
Model Number:
-
CT6132
-
Voltage:
-
220/380V, 220/380v
-
Dimension(L*W*H):
-
1220*660*450mm
-
Weight (KG):
-
240 KG
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Manual
-
Name:
-
Horizontal Lathe
-
Usage:
-
small household machine tool
-
Wattage:
-
1100w
-
MOQ:
-
1set
-
Size:
-
1220*660*450mm
-
Net weight:
-
240kg
-
After-sales Service Provided:
-
Online support
Quick Details
-
Max. Length of Workpiece (mm):
-
600 mm
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
38 mm
-
Range of Spindle Speed(r.p.m):
-
60 - 1600 r.p.m
-
Width of bed (mm):
-
210
-
Max. Turned Length (mm):
-
600 mm
-
Spindle Motor Power(kW):
-
1.1
-
Year:
-
2020
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
CTMACH
-
Model Number:
-
CT6132
-
Voltage:
-
220/380V, 220/380v
-
Dimension(L*W*H):
-
1220*660*450mm
-
Weight (KG):
-
240 KG
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Manual
-
Name:
-
Horizontal Lathe
-
Usage:
-
small household machine tool
-
Wattage:
-
1100w
-
MOQ:
-
1set
-
Size:
-
1220*660*450mm
-
Net weight:
-
240kg
-
After-sales Service Provided:
-
Online support

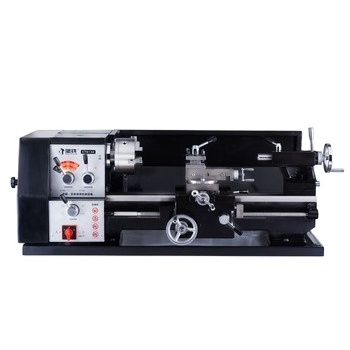

CT6132 METAL BENCH LATHE FROM CTMACH FACTORY
|
Model: C T6132 |
|
|
Swing over bed |
320mm |
|
Swi vel diameter of tool post |
210mm |
|
Machining Length |
600mm |
|
Spindle Taper |
MT5 |
|
Spindle B ore |
38mm |
|
Travel of Tail-stock Sleeve |
70mm |
|
Taper of Tail-stock |
MT3 |
|
Middle Carriage Travel |
170mm |
|
Small Carriage Travel |
100mm |
|
Metric Thread/Grade |
0.5-4mm/17 |
|
Inch Thread/Grade |
9-40T.P.I/20 |
|
Transverse Feed |
0.025-0.34mm/r |
|
Longitudinal Feed |
0.135-1.80mm/r |
|
Spindle Speed Range/Grade |
60-1600r/min(12) |
|
Motor Power |
1100W |
|
Machine Dimension |
1220*660*450mm |
|
Net Weight |
240KG |
|
Gross Weight |
260KG |
|
Packing Size |
1400*770*750mm |
