Quick Details
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
1060*470*650mm
-
Weight:
-
72KG/74KG, 72KG
-
Working Pressure:
-
8bar, 0.8MPa / 116Psi /8Bar
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Noise level:
-
59dB
-
Product name:
-
Air Compressor
-
Keywords:
-
Oil-free air Compressor
-
Color:
-
Blue
-
Tank:
-
65L
-
OEM:
-
Welcomed
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SUNSOURCE
-
Model Number:
-
GY-550*3-65W, GY-750*3-65W
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
1060*470*650mm
-
Weight:
-
72KG/74KG, 72KG
-
Working Pressure:
-
8bar, 0.8MPa / 116Psi /8Bar
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Noise level:
-
59dB
-
Product name:
-
Air Compressor
-
Keywords:
-
Oil-free air Compressor
-
Color:
-
Blue
-
Tank:
-
65L
-
OEM:
-
Welcomed

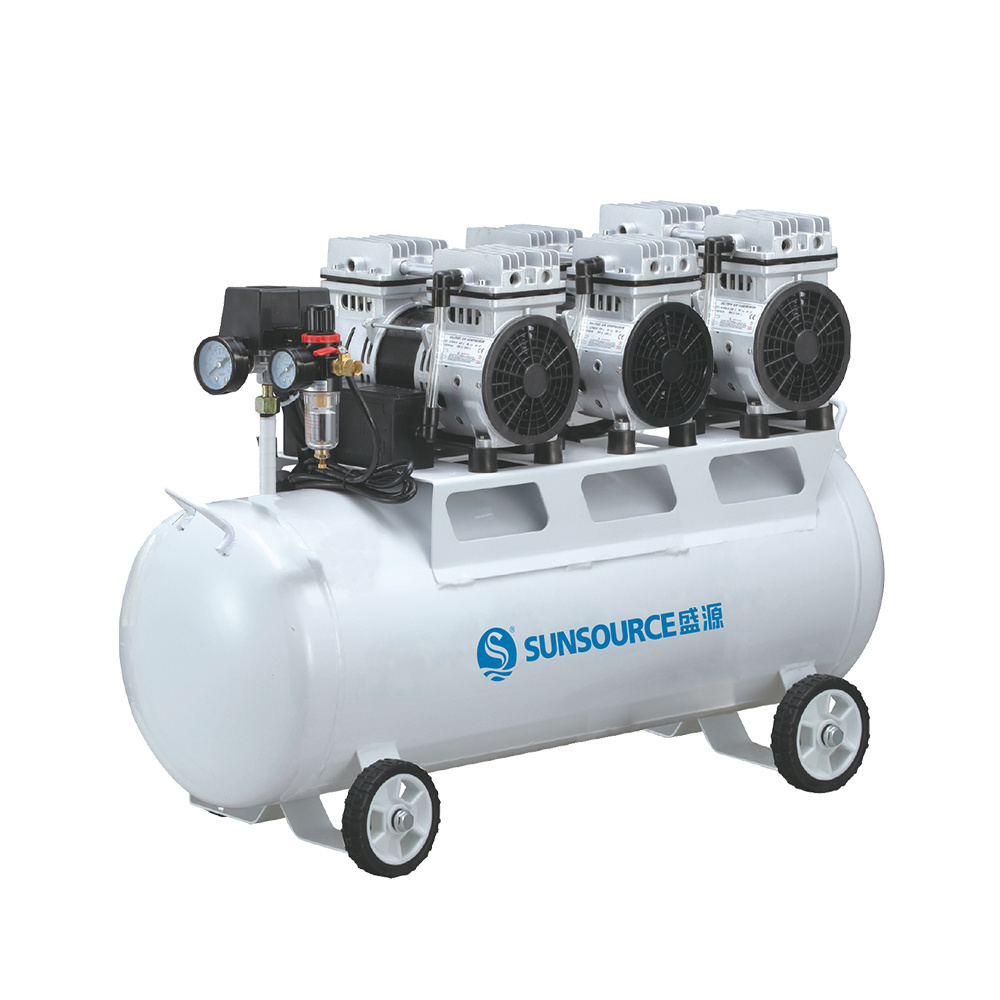

Product Display
Product Parameter
|
Model#
|
|
GY-550X3-65W
|
GY-750X3-65W
|
|
|
Type
|
|
Oil Free Air Compressor
|
Oil Free Air Compressor
|
|
|
Rated Input Voltage/Frequency (V/Hz)
|
|
AC-220V/50HZ
|
AC-220V/50HZ
|
|
|
Rated Input Current (A)
|
|
8.1A
|
10.5A
|
|
|
Rated Input Power (KW/HP)
|
|
1.65KW (2.2HP)
|
2.25KW (3HP)
|
|
|
Speed (RPM)
|
|
1380RPM
|
1380RPM
|
|
|
Air Flow Displacement
|
|
405 L/min (14.4CFM)
|
405 L/min (14.4CFM)
|
|
|
Max. Pressure
|
|
8Bar(116PSI)
|
8 Bar (116PSI)
|
|
|
Noise Level
|
|
59dB
|
59dB
|
|
|
Working Temperature
|
|
MIN.0℃ ~ MAX. 40℃
|
MIN.0℃ ~ MAX. 40℃
|
|
|
Maximum
Pressure (Bar) |
Continous
|
7
|
7
|
|
|
|
Intermitten
|
8
|
8
|
|
|
|
Restart
|
0
|
0
|
|
|
Compressor
Pump Performance (Ltr/m @ Bar) |
0.0 BAR
|
264 Ltr/min
|
276Ltr/min
|
|
|
|
2.0 BAR
|
213 Ltr/min
|
267Ltr/min
|
|
|
|
4.0 BAR
|
171 Ltr/min
|
234 Ltr/min
|
|
|
|
6.0 BAR
|
135 Ltr/min
|
195 Ltr/min
|
|
|
|
8.0 BAR
|
111 Ltr/min
|
177 Ltr/min
|
|
|
Electric Motor
|
Wire material
|
Copper
|
Copper
|
|
|
|
Stator Size
|
140 tablets
|
140 tablets
|
|
|
|
Stator & Rotator Sheets
|
Silicon steel sheet
|
Silicon steel sheet
|
|
|
Tank
|
Capacity
|
65L (14.4Gal)
|
65L (14.4Gal)
|
|
|
|
Material
|
Q235
|
Q235
|
|
|
|
Thickness
|
t=2.75mm
|
t=2.75mm
|
|
|
Standard
Equipment |
Pressure Controller
|
0.5-0.8Mpa/1-G1/4
|
0.5-0.8Mpa/1-G1/4
|
|
|
|
Air Regulator with Valve
|
G1/4 with nozzle
|
G1/4 with nozzle
|
|
|
|
Connecting Pipe Material
|
Soft Metal Tube
|
Soft Metal Tube
|
|
|
|
Muffler
|
Three in one muffler
|
Three in one muffler
|
|
|
|
Thermal Protector
|
Yes
|
Yes
|
|
|
|
Power Cable
|
3xL5mm2xL5m
|
3x1.5mm2x1.5m
|
|
|
Size & Weight
|
Net Weight (KG)
|
72KG
|
74KG
|
|
|
|
Machine Size
|
1060x470x650mm
|
1060x470x650mm
|
|
|
|
Packaging
|
Carton
|
Carton
|
|
|
|
Gross Weight(KG)
|
74KG
|
74KG
|
|
|
|
Packaging Dimensions
|
1080x490x670mm
|
1080x490x670mm
|
|
