Name: 4 Safety Alarm Systems
Power: Turn on the unit
Normal Oxygen: the unit running normally
Low Oxygen: Oxygen concentration is lower than 82%
Service Required: the unit faulty
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
DYNMED
-
Model Number:
-
DO2-8A
-
Product name:
-
Healthcare Oxygen Concentrator
-
Oxygen flow:
-
1--8 LPM
-
Concentration:
-
93%±3%
-
Operation noise:
-
<55dB
-
Net weight:
-
19.2kgs
-
Power Consumption:
-
<540 watts
-
Output pressure:
-
58.6±6KPa
-
Dimensions:
-
43 x 32 x 62 cm
-
Caton size:
-
50x37x71 cm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Free spare parts
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DYNMED
-
Model Number:
-
DO2-8A
-
Product name:
-
Healthcare Oxygen Concentrator
-
Oxygen flow:
-
1--8 LPM
-
Concentration:
-
93%±3%
-
Operation noise:
-
<55dB
-
Net weight:
-
19.2kgs
-
Power Consumption:
-
<540 watts
-
Output pressure:
-
58.6±6KPa
-
Dimensions:
-
43 x 32 x 62 cm
-
Caton size:
-
50x37x71 cm
Product Description

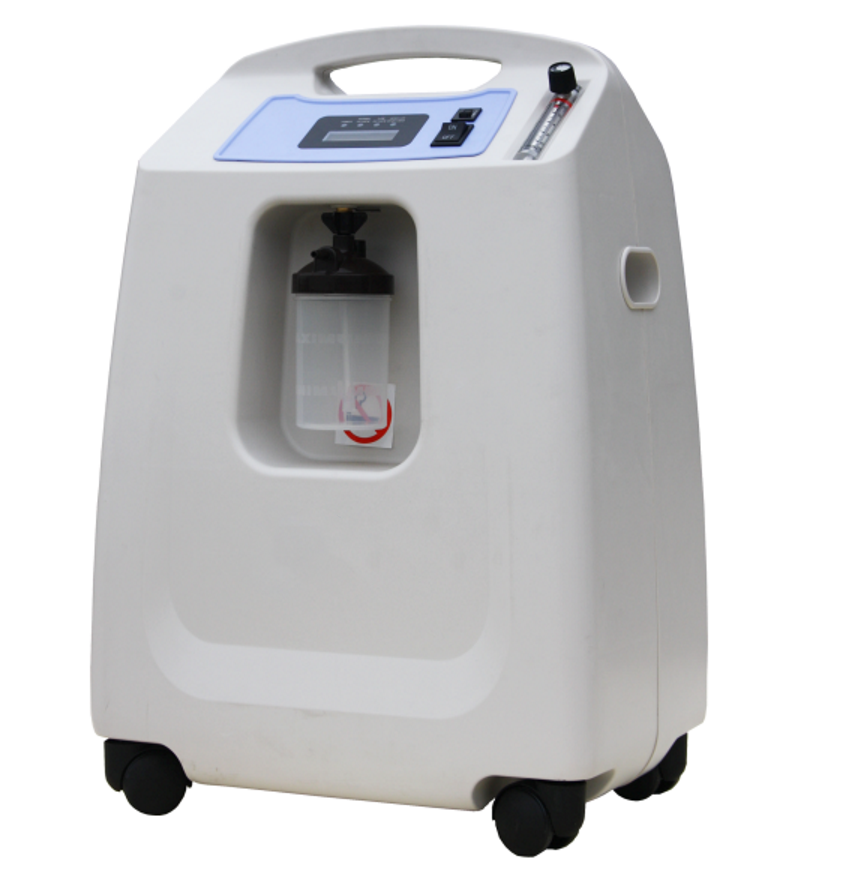

Double Flow Oxygen Concentrator with Two Humidifier Bottles
Super Purchasing Recommend model:
Healthcare Oxygen Concentrator 8LPM, DO2-8AD.
Product Application
Today, many people suffer from heart, lung, and other respiratory diseases. Most of these people can be benefited from supplemental oxygen therapy. Supplemental oxygen will increase the amount of oxygen that your body receives. Your physician prescribed a specific oxygen flow to improve symptoms such as headaches, drowsiness, confusion, fatigue, or increased irritability. If these symptoms persist after you begin your supplemental oxygen program, consult your physician.
DYNMED healthcare oxygen concentrator is applicable for above instructions. The product requires very few maintenance among their lifetime. All inner components are modular design, very easy to be maintained by general persons. The work performance are very steadily.
|
SPECIFICATIONS FOR DYNMED 8L OXYGEN CONCENTRATOR
|
|
|
|
|||
|
Main performance parameters
|
Oxygen flow:
|
1--8 LPM
|
/
|
|||
|
|
Oxygen purity:
|
93%±3%
|
below 2000m
|
|||
|
|
Oxygen Output pressure:
|
0.05-0.07Mpa
|
/
|
|||
|
Visible & audible parameters
|
Number of flowmeter
|
2pcs
|
Each Flowmeter scale 4L/min
|
|||
|
|
Net weight:
|
19.2kgs
|
/
|
|||
|
|
Operation noise(dB)
|
<55dB(A)
|
/
|
|||
|
Work condition
|
Power Supply:
|
AC 220V±22V/50Hz
|
or 110V±10V /60Hz
|
|||
|
|
Power consumption:
|
<540 W
|
>480 W
|
|||
|
|
Operating temp:
|
5°C--40°C
|
|
|||
|
Accessories |
Included |
Included
|
Optional |
|
|
2 humidifier with connector
|
bacteria filter
|
low oxygen alarm
|
|
|
nasal cannula 1.8m and 3m
|
air inlet filter
|
nebulizer
|
|
|
user´s manual
|
coarse filter
|
4-way splitter
|
Main Features
1). modular components set up, two bottles, two flow meters
2). easily accessible filter
3). 72 degree ramp– interface
4). modern design and simple operation
5). new, innovative measuring sensor
6). sensitive flow adjustment
7). 2 years warranty for all functional parts
8). whisper silent
9). microprocessor-controlled
10). favourable price
11). Made in Jiangsu, China (near to Shanghai)
Detailed Images
Machine Parts
Machine Parts
Name: LCD Display
Normal: the unit running is good, but when oxygen concentration is low, it shows "low oxygen". Pressure high/low alert will show "low/high pressure"
Total: the calculated total run hours
Machine Parts
Name:
Master Board
highly Integrated control, made in Europe
Machine Parts
Name: Oxygen Sensor
Ulstrasonic type, more sensitive, made in USA
Machine Parts.
Name: Solenoid Valve
Made by alloy metal, more reliable
Machine Parts
Name: Filters
Made by Ceramic Fiber Paper, with more filtering layers
Made by GVS Group (Italy)
Machine Parts.
Name: Zeolite Molecular Sieve
Made by lithium molecular sieve, more efficient and reliable, made in USA
Machine Parts.
Name: Oil Free Piston Compressor
Use the most relible compressor in China
Offer 5 years warranty.
Machine Parts.
Name: Cooling Fans
The unit uses two cooling fans to make sure low temperature inside the machine. And thus protect the machine from over heated.
This is also a special design of DYNMED.
Machine Parts
Name: Packaging
1- product net weight is 15.9kg only
2- box size(LxWxH) is 50x37x71 cm only
3- box material: 10mm corrugated kraft paper
This 5L unit has almost the lightest net weight, the box size is one of the most perfect one compare to other China suppliers. And the box material is the most thick, strong one around the world.
No shipping damaged issue in past 5 years.
Machine Parts
Name: Double Humidifier (bottle)
Humidifier number: 2 pcs
Flow meter number: 2 pcs
Flow meter calibration : 0-8LPM adjustable.
Bottle volume: 200ml each
Bottle volume: 200ml each
