Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ROGY
-
Model Number:
-
JVL16-63
-
Rated Frequency (Hz):
-
50Hz,60Hz
-
Application:
-
Households, Industry
-

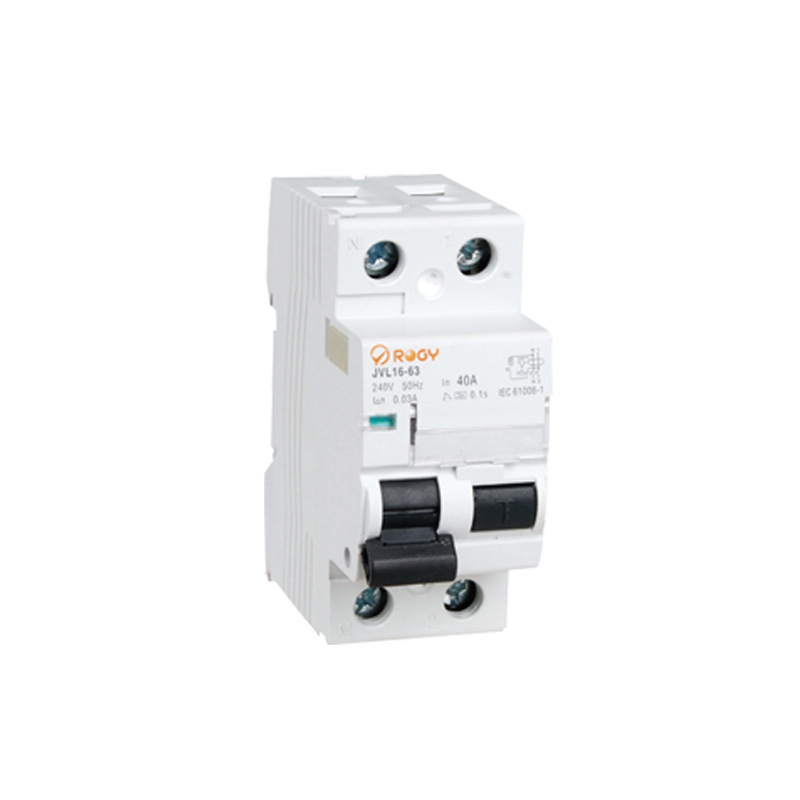

Product name:
-
Residual Current Circuit Breaker
Quick Details
-
Breaking Capacity:
-
10kA
-
Rated Voltage:
-
230/400
-
BCD Curve:
-
B/C/D
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ROGY
-
Model Number:
-
JVL16-63
-
Rated Frequency (Hz):
-
50Hz,60Hz
-
Application:
-
Households, Industry
-
Product name:
-
Residual Current Circuit Breaker
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Shanghai
|
|
Brand Name
|
ROGY
|
|
Model Number
|
JVL16-63
|
|
Breaking Capacity
|
10kA
|
|
Rated Voltage
|
230/400
|
|
Rated Current
|
63
|
|
BCD Curve
|
C
|
|
Type
|
MCB
|
|
Rated Frequency (Hz)
|
50Hz,60Hz
|
|
Number of Pole
|
2P
|
|
Protection
|
LSI
|
|
Box Specifications
|
|
|
|
Carton Size(mm)
|
42.5*23 8*34
|
|
|
Weight(kg)/box
|
19.6
|
|
|
Qty
|
120
|
|
Q1:
How to Calculate Amps
?
A1: (W/V=A) Known appliance power divided by voltage equals amperes .
Q2: How to choose the number of Pole ?
A2: 1P is a single pole, occupying 1 bit (18mm wide), 230V can be connected to a live wire, without a neutral wire; 1P+N is a single chip bipolar, occupying one bit (18mm wide), and can be connected to one fire and one zero at 230V; 2P is bipolar, occupying two positions (36MM wide). 400V can be connected to one fire and one zero, or to two fires; 3P is a three pole, occupying three positions (54mm wide). 400V can be connected to three live wires; 4P is a four pole, occupying four positions (72mm wide). 400V can be connected to three live wires and one neutral wire;
A1: (W/V=A) Known appliance power divided by voltage equals amperes .
Q2: How to choose the number of Pole ?
A2: 1P is a single pole, occupying 1 bit (18mm wide), 230V can be connected to a live wire, without a neutral wire; 1P+N is a single chip bipolar, occupying one bit (18mm wide), and can be connected to one fire and one zero at 230V; 2P is bipolar, occupying two positions (36MM wide). 400V can be connected to one fire and one zero, or to two fires; 3P is a three pole, occupying three positions (54mm wide). 400V can be connected to three live wires; 4P is a four pole, occupying four positions (72mm wide). 400V can be connected to three live wires and one neutral wire;
Q3: How to choose Amps?
A3: The circuit breaker needs to be matched with the wires and electrical appliances, otherwise it may cause tripping, burning of the terminals, and other situations. You can refer to the table for selection, specific requirements shall prevail:
A3: The circuit breaker needs to be matched with the wires and electrical appliances, otherwise it may cause tripping, burning of the terminals, and other situations. You can refer to the table for selection, specific requirements shall prevail:
|
Rated current
|
Copper core wire
|
Load power
|
Application scenarios
|
|
1-5A
|
＜1MM
|
＜1000W
|
Low power equipment
|
|
6A
|
≥1MM
|
≤1320W
|
Lighting
|
|
10A
|
≥1.5MM
|
≤2200W
|
Lighting
|
|
16A
|
≥2.5MM
|
≤3520W
|
Lighting socket; 1-1.5 horsepower air conditioner
|
|
20A
|
≥2.5MM
|
≤4400W
|
Bedroom socket; 2 horsepower air conditioner
|
|
25A
|
≥4MM
|
≤5500W
|
Kitchen and bathroom sockets; 2.5 horsepower air conditioner
|
|
32A
|
≥6MM
|
≤7040W
|
Kitchen and bathroom sockets; 3 horsepower air conditioner;6kw fast water heater
|
|
40A
|
≥10MM
|
≤8800W
|
3kw fast water heater; Main power switch
|
|
50A
|
≥10MM
|
≤11000W
|
Main power switch
|
|
63A
|
≥16MM
|
≤13200W
|
Main power switch
|
|
80A
|
≥16MM
|
≤17600W
|
Main power switch
|
|
100A
|
≥25MM
|
≤22000W
|
Main power switch
|
|
125A
|
≥35MM
|
≤27500W
|
Main power switch
|
