Quick Details
-
Instruction for use:
-
The installation as we provided
-
Model Number:
-
Agricultural Single-Span Greenhouses
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lucky
-
Production name:
-
Agricultural single span greenhouse
-
Structure:
-
hot galvanized steel with 275g/m2 zinc coat
-
Length:
-
customize from 10-200m
-
Width:
-
customize from 6-10m
-
Basic component:
-
Structure, covering film, air ventilation,doors and insect net
-
Advantage:
-
easy installed,economic
-
Application:
-
vegetable,tomato,fruit,flower
-
Ventilation:
-
Side and top ventilation
-
Optional system:
-
cooling/ light/heating /shading net
Quick Details
-
Size:
-
Large
-
Type:
-
Single-Span Agricultural Greenhouses
-
Manufacturer:
-
Lucky
-
Instruction for use:
-
The installation as we provided
-
Model Number:
-
Agricultural Single-Span Greenhouses
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lucky
-
Production name:
-
Agricultural single span greenhouse
-
Structure:
-
hot galvanized steel with 275g/m2 zinc coat
-
Length:
-
customize from 10-200m
-
Width:
-
customize from 6-10m
-
Basic component:
-
Structure, covering film, air ventilation,doors and insect net
-
Advantage:
-
easy installed,economic
-
Application:
-
vegetable,tomato,fruit,flower
-
Ventilation:
-
Side and top ventilation
-
Optional system:
-
cooling/ light/heating /shading net
Product Description
|
1
|
Land size
|
Suitable greenhouse size
|
|
2
|
500sqm
|
60*8m single-span greenhouse
|
|
3
|
1000sqm
|
8*125m single-span greenhouse
|
|
4
|
1 hectares
|
100*96m multi-span greenhouse/25sets 50*8m single-span greenhouse
|
|
5
|
1.5 hectares
|
148*96m multi-span greenhouse
|
|
6
|
2 hectares
|
148*148m multi-span greenhouse
|

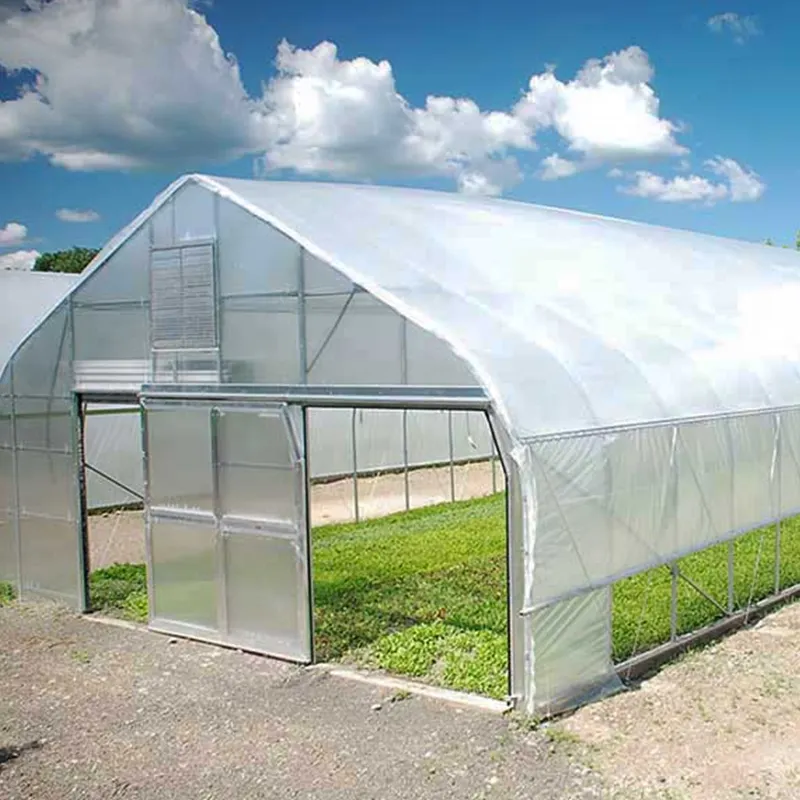

Characteristic of single span greenhouse
1.Simple structure in all types of greenhouses ,easy in installation and maintation.
2.Excellent hot galvanized steel structures and accessories , anti-corrosion . over 15 year using life .
3.Proprietary technology in PE film , Famouse brand .thinner more durable.Guaranteed 5 years using life.
4.Ventilation and insect nets can give your planting under comfortable situation. Increasing yield.
5.Cucumbers, tomatos, yield per 1000㎡ normally more than 10000kg .
2.Excellent hot galvanized steel structures and accessories , anti-corrosion . over 15 year using life .
3.Proprietary technology in PE film , Famouse brand .thinner more durable.Guaranteed 5 years using life.
4.Ventilation and insect nets can give your planting under comfortable situation. Increasing yield.
5.Cucumbers, tomatos, yield per 1000㎡ normally more than 10000kg .
Greenhouse application
The greenhouse used for cucumber,tomato,pepper,strawberry,vegetable,poultry,flower,seeding,drying and so on.
Specification
|
Specification of greenhouse
|
|
|
|
Length
|
20-100m,customized
|
|
|
Width
|
6m,7m,8m,9m,10m,customized
|
|
|
Roof height
|
3.3m,3.5m,customized
|
|
|
Wall height(shoulder heigth)
|
1.3m,2m,customized
|
|
|
Covering Material
|
150micron or 200micron Plastic film/PO film/PC sheet/Glass
|
|
|
Greenhouse farme
|
275g/m2 zinc coat Hot galvanized steel pipe (diameter of arch pipe is 25mm,32mm, 40mm,50mm,60mm)
|
|
|
Option
|
Cooling fan,cooling pad,lights,heater,ground cover,shade net,irrigation system
|
|
|
Wind Load
|
60-130km/h (If necessary, a stronger skeleton will be designed)
|
|
|
Snow Load
|
0.25-0.5KN/m² (If necessary, a stronger skeleton will be designed)
|
|
|
Rain load
|
140mm/h (If necessary, a stronger skeleton will be designed)
|
|
Drawing of blackout greenhouse
We can supply install drawing.
Our drawing clearly shows what accessories are installed where, which greatly saves your
installation time
installation time
Details Images
Greenhouse Steel structure
1.275g/sqm zinc coated hot galvanized steel framework,anti-rust,life time over 15 years
2.Arch pipe:
Diameter of arch pipe have 25mm,32mm,40mm,48mm,50mm,60mm
3. There is no bare welding points and connected by galvanized bolts, screws, and self-screws
3. There is no bare welding points and connected by galvanized bolts, screws, and self-screws
Greenhouse cover material
1.Plstic film/PO film/Wove film ( thickness is 120micron,150micron,200micron,customized)
2.Anti-drip,anti-fog,Anti-UV,High transparency
3.Life time:3-5years(150micron),6-8years(200micron)
|
|
Diameter
|
Suitable weather
|
|
1
|
25mm
|
≤70km/h,no snow
|
|
2
|
32mm
|
≤90km/h,no snow
|
|
3
|
40mm
|
100km/h,5cm snow
|
|
4
|
50mm
|
110km/h,10cm snow
|
|
5
|
60mm
|
120km/h,20cm snow
|
Ventilation system
1.Manual roller or Electric roller machine for both sides ventilation and top ventilation
2.40mesh insect net will be offered for vents
Other system included
Such as cooling system,light trap,lights,rolling bench,circulation fan,heater,Co2 Generator,Dehumidifier and so on.
