• Natural Rubber for maximum resilience and vibration isolation. Contains antioxidants and anti-ozonant to improve aging.
• Standard Neoprene for longer life and moderate oil resistance.
• Bridge-bearing Neoprene for maximum life, excellent oil resistance and resiliency approaching natural rubber.

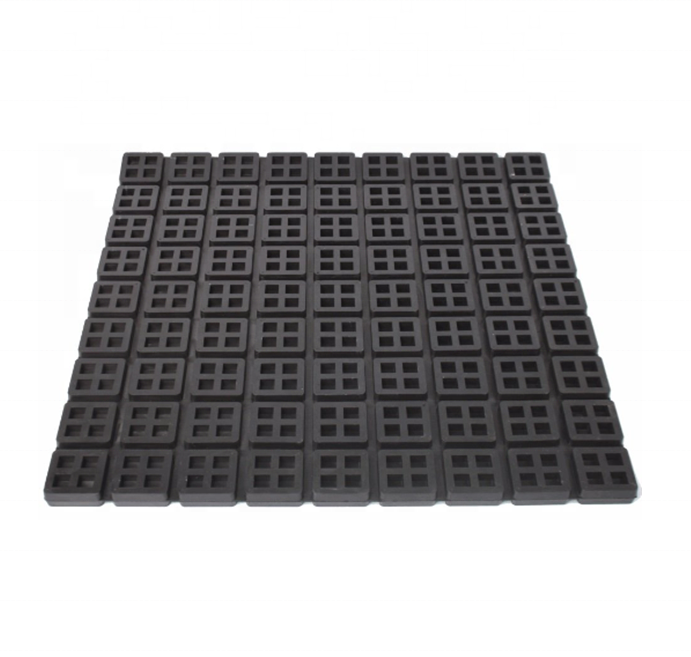

Waffle Rubber Vibration Isolation Pads
size is18” x 18” x 3/4” (450 x 450 x 20mm), which has small single
module of
2” (50mm), total 81 pieces modules.
Vibration Isolation Pad can be cut easily to many pieces, each module is evenly size, so you can get the
Heavy Duty Waffle Vibration Isolation Pad size as following:
2” x 2”
x 3/4”
(50 x 50mm
x 20mm
)
2” x 4”
x 3/4”
(50 x 100mm
x 20mm
)
4” x 4”
x 3/4”
(100 x 100mm
x 20mm
)
6” x 6”x 3/4” (150 x 150 mm x 20mm)
6” x 8”
x 3/4”
(150 x 200 mm
x 20mm
)
8” x 8”x 3/4” (200 x 200 mm x 20mm)
8” x 10”x 3/4” (200 x 250 mm x 20mm)
10” x 10”x 3/4” (250 x 250 mm x 20mm)
12” x 12”x 3/4” (300 x 300 mm x 20mm)
14” x 14”x 3/4” (350 x 350 mm x 20mm)
16” x 16”x 3/4” (400 x 400 mm x 20mm)
18” x 18”x 3/4” (450 x 450 mm x 20mm)
more size ........
Besides,
we offer 3/8”, 3/4” and 1” pads in addition to a choice of 2” x 2”, 3” x 3”, and 4” x 4” square modules.
The thickest is always best and Natural Rubber the most efficient.
